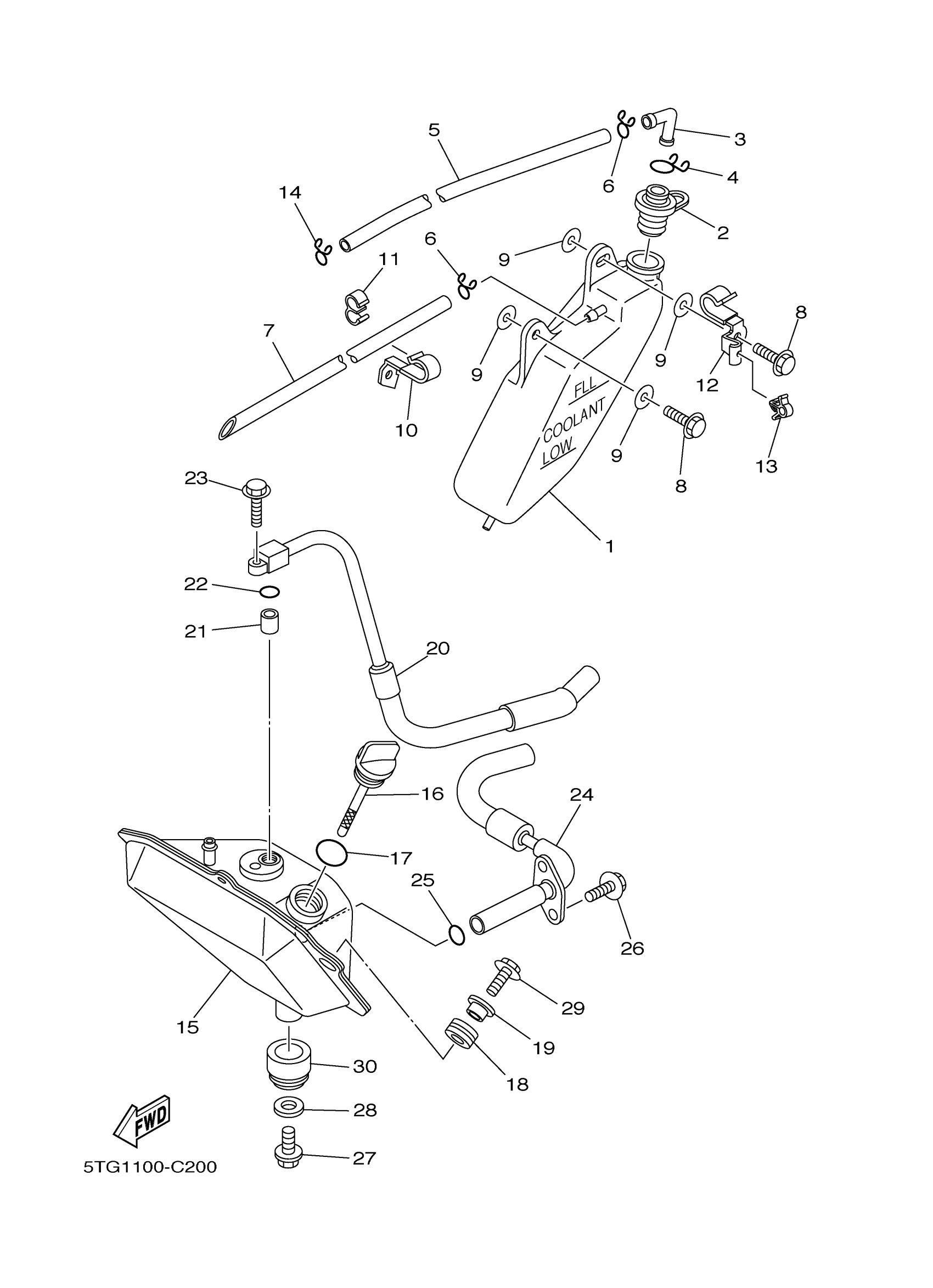

Yamaha YFZ450T (YFZ450) 5TG7 2005 OIL TANK Diagram
#
Description
Price
4
CLIP(72X)
90467-11M08-00
Unavailable
10
CLAMP
90465-08047-00
Unavailable
12
CLAMP
90465-08044-00
Unavailable
15
OIL TANK ASSY
5TG-21750-00-00
Unavailable
16
GAUGE, LEVEL
5LP-21761-01-00
Unavailable
17
O-RING
93210-21190-00
Unavailable
18
GROMMET (4N0)
90480-10289-00
Unavailable
19
COLLAR(4BH)
90387-066Y6-00
Unavailable
20
HOSE, OIL 2
5TG-13465-01-00
Unavailable
21
PIN, DOWEL(3VD)
99530-10114-00
Unavailable
22
O-RING (371)
93210-10197-00
Unavailable
23
BOLT, SMALL FLANGE
95027-06025-00
Unavailable
24
HOSE, OIL 1
5D3-13464-00-00
Unavailable
25
O-RING (26H)
93210-16629-00
Unavailable
26
BOLT,SOCKET
91317-06016-00
Unavailable
27
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
28
WASHER, PLATE (4L0)
90201-082A6-00
Unavailable
29
BOLT, FLANGE
95817-06020-00
Unavailable
30
GROMMET
90480-24001-00
Unavailable
