Description

Price

1

FRONT FENDER COMP.

5TG-W2151-00-00

$305.99

1

FRONT FENDER COMP.

5TG-W2151-10-00

$357.99

2

BOLT, FLANGE

95817-06016-00

$2.75

3

GROMMET

90480-15006-00

$7.49

4

COLLAR(42G)

90387-062L2-00

$7.49

5

BOLT,HEX. SOCKET BUTTON

90111-05059-00

$2.12

6

NUT, SPRING

90183-05008-00

$9.49

7

NUT,SELF-LOCKING

95607-06200-00

$12.49

8

SCREW(3JM)

90149-06306-00

$8.49

9

CLAMP(4BD)

90464-48174-00

$3.50

10

STAY, FENDER 1

5TG-21513-10-00

$72.99

11

COVER, SIDE 1

5TG-21711-00-00

$103.99

11

COVER, SIDE 1

5TG-21711-10-00

Unavailable

12

COVER, SIDE 2

5TG-21721-00-00

Unavailable

12

COVER, SIDE 2

5TG-21721-10-00

Unavailable

13

BOLT(3KJ)

90109-063F1-00

Unavailable

14

RIVET

90269-06002-00

Unavailable

15

COVER, TOP (DEEP PURPLISH BLUE SOLID E)

5TG-2171A-00-00

Unavailable

15

COVER, TOP

5TG-2171A-10-00

Unavailable

16

DAMPER 1

5TG-21541-00-00

Unavailable

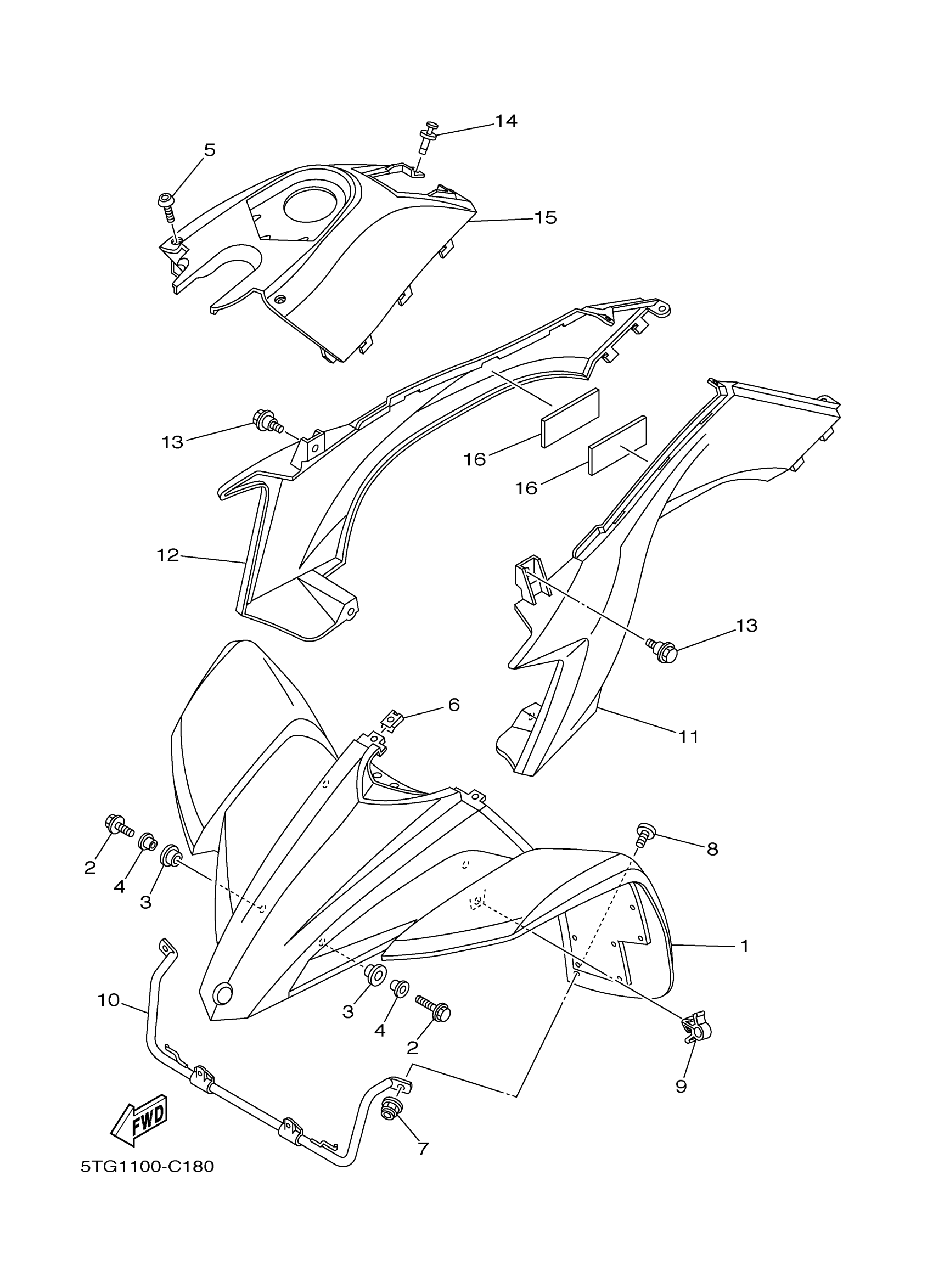

Yamaha YFZ450T (YFZ450) 5TG7 2005 FRONT FENDER Diagram

FRONT FENDER COMP.

FRONT FENDER COMP.

BOLT, FLANGE

GROMMET

COLLAR(42G)

BOLT,HEX. SOCKET BUTTON

NUT, SPRING

NUT,SELF-LOCKING

SCREW(3JM)

CLAMP(4BD)

STAY, FENDER 1

COVER, SIDE 1

COVER, SIDE 1

COVER, SIDE 2

COVER, SIDE 2

BOLT(3KJ)

RIVET

COVER, TOP (DEEP PURPLISH BLUE SOLID E)

COVER, TOP

DAMPER 1
