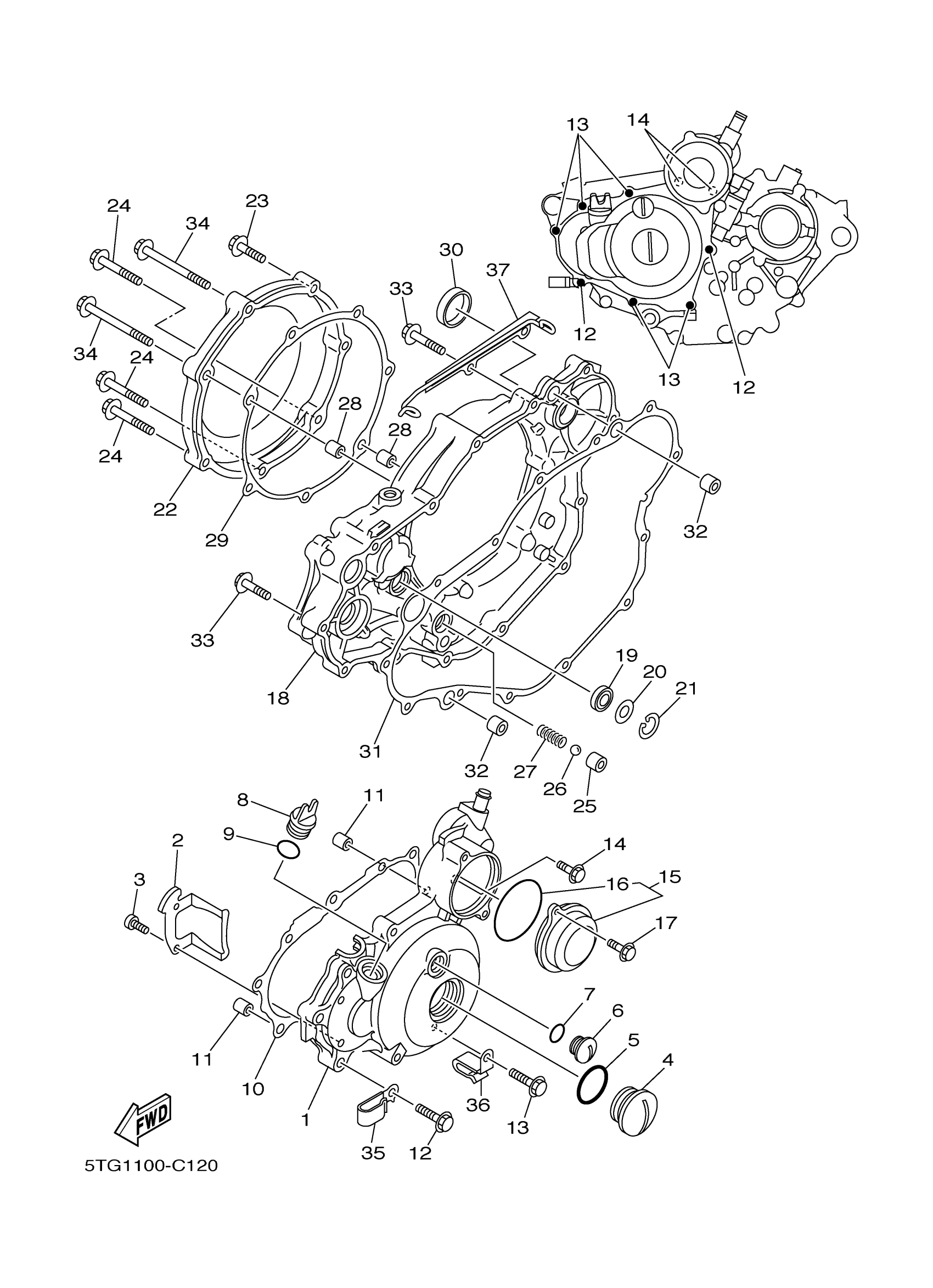

Yamaha YFZ450T (YFZ450) 5TG7 2005 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

5TG-15411-00-00

Unavailable

2

CLAMP

90465-10017-00

Unavailable

3

BOLT, SOCKET

91317-05012-00

$2.55

4

PLUG, STRAIGHT SCREW

90340-27002-00

Unavailable

5

O-RING(1KT)

93210-27778-00

$8.49

6

PLUG, STRAIGHT SCREW(3RW)

90340-14128-00

$11.49

7

O-RING (2H9)

93210-14369-00

$7.49

8

PLUG, OIL

3Y1-15363-10-00

$18.49

9

O-RING (646)

93210-19123-00

Unavailable

10

GASKET, CRANKCASE COVER 1

5TG-15451-00-00

$14.49

11

PIN, DOWEL(3XW)

91808-16023-00

$8.49

12

BOLT, SMALL FLANGE

95027-06040-00

$3.28

13

BOLT, SMALL FLANGE

95027-06030-00

$3.98

14

. BOLT, FLANGE

95027-06020-00

Unavailable

15

COVER ASSY 2

5TG-1549B-00-00

Unavailable

16

O-RING (4H7)

93210-60426-00

Unavailable

17

BOLT, WASHER BASED(JA9)

90105-06696-00

Unavailable

18

COVER, CRANKCASE 3

5XD-15431-00-00

Unavailable

19

OIL SEAL(4GY)

93101-14164-00

Unavailable

20

WASHER (566)

90201-15701-00

Unavailable

21

CIRCLIP

99009-22500-00

Unavailable

22

COVER, GENERATOR

5TA-15415-10-00

Unavailable

23

BOLT, SMALL FLANGE

95027-06030-00

$3.98

24

BOLT, SMALL FLANGE

95027-06040-00

$3.28

25

SEAT, CHECK BALL

583-13113-00-00

Unavailable

26

BALL

93503-08007-00

Unavailable

27

SPRING, COMPRESSION(1VJ)

90501-043E0-00

Unavailable

28

PIN, DOWEL(3XW)

91808-16023-00

$8.49

29

GASKET

5TA-15453-00-00

Unavailable

30

PLUG (3L3)

90338-30096-00

Unavailable

31

GASKET, CRANKCASE COVER 3

5TA-15462-00-00

Unavailable

32

PIN, DOWEL(J38)

91812-16001-00

Unavailable

33

BOLT, SMALL FLANGE

95027-06030-00

$3.98

34

BOLT, SMALL FLANGE

95027-06080-00

Unavailable

35

CLAMP(4MX)

90465-06376-00

Unavailable

36

CLAMP

90462-10025-00

Unavailable

37

CLAMP 2

5TG-15484-10-00

Unavailable
