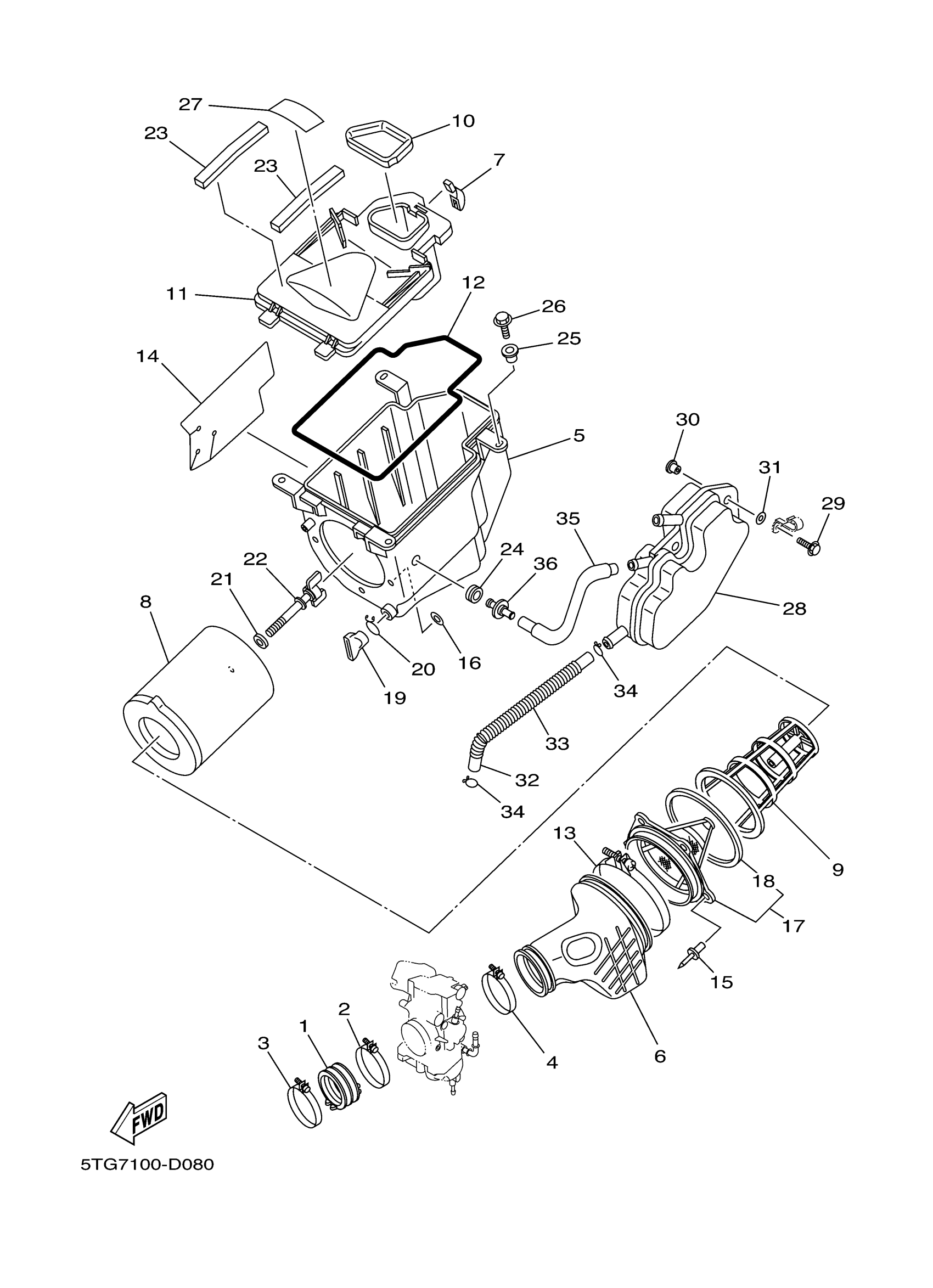

Yamaha YFZ450SPX (YFZ450 SPECIAL EDITION) 5D3E 2008 INTAKE Diagram

#

Description
Price

1

JOINT, CARBURETOR 3

5XD-13597-10-00

$29.99

2

HOSE CLAMP ASSY

90450-57013-00

$23.99

3

HOSE CLAMP ASSY

90450-59005-00

$15.99

4

HOSE CLAMP ASSY

90450-61002-00

$16.99

5

CASE, AIR CLEANER 1

5TG-14411-00-00

$42.99

6

JOINT, AIR CLEANER 1

5TG-14453-02-00

$68.99

7

HOOK

5TH-14436-00-00

$9.99

8

ELEMENT, AIR CLEAN

5TG-14451-01-00

$40.99

9

GUIDE

5TG-14458-00-00

$25.99

10

FUNNEL

5TG-14479-00-00

$16.49

11

CAP, CLEANER CASE 1

5TG-14412-01-00

$25.99

12

SEAL

1VJ-14462-00-00

$18.49

13

HOSE CLAMP ASSY

90450-99007-00

Unavailable

14

PROTECTOR

5TG-1442F-00-00

$13.49

15

RIVET, BLIND(80N)

90267-48138-00

$3.76

16

WASHER, PLATE

90201-04028-00

Unavailable

17

HOLDER, GUIDE

5D3-14459-00-00

Unavailable

18

SEAL

4ES-14462-00-00

Unavailable

19

SEAL

59V-14457-00-00

Unavailable

20

CLIP

90467-220A1-00

Unavailable

21

WASHER (4H7)

90209-06096-00

Unavailable

22

BOLT, WING

90122-06010-00

Unavailable

23

DAMPER

5TG-14409-00-00

Unavailable

24

GROMMET

31A-14435-01-00

Unavailable

25

COLLAR

90387-08073-00

Unavailable

26

BOLT, FLANGE

90105-06084-00

Unavailable

27

PLATE, EPA OFFROAD ATV 1

5D3-2177C-10-00

Unavailable

28

BREATHER ASSY

5TG-15370-00-00

Unavailable

29

BOLT, FLANGE

90105-06084-00

Unavailable

30

COLLAR

90387-07018-00

Unavailable

31

WASHER, PLATE

90201-06078-00

Unavailable

32

HOSE, BREATHER 1

5TG-1531A-00-00

Unavailable

33

SPRING, COMPRESSION

90501-100A2-00

Unavailable

34

CLIP

90467-140A4-00

Unavailable

35

HOSE, BREATHER 2

5TG-1532A-00-00

Unavailable

36

PIPE

5TG-14419-00-00

Unavailable
