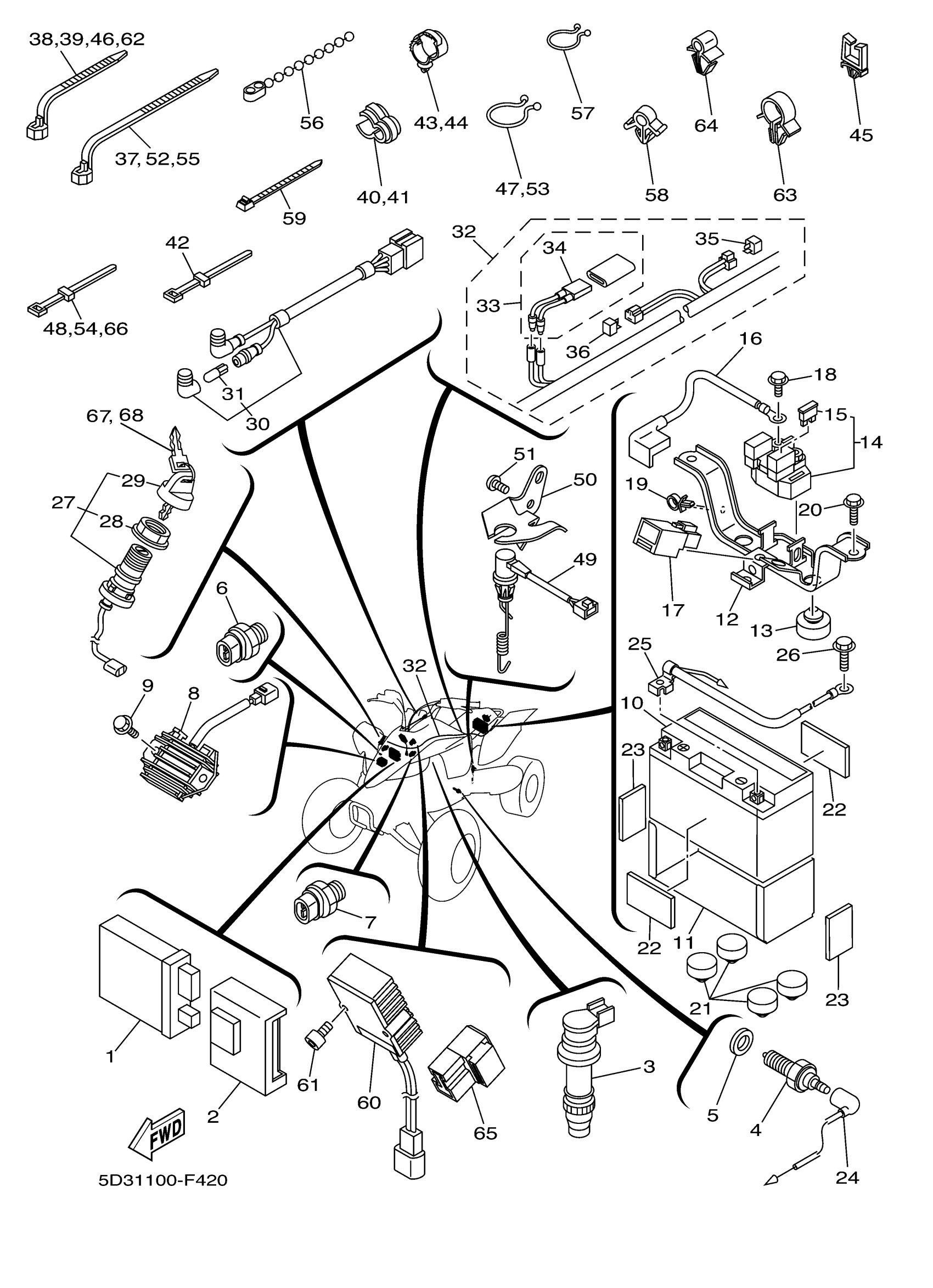

Yamaha YFZ450SPX (YFZ450 SPECIAL EDITION) 5D3E 2008 ELECTRICAL 1 Diagram

#

Description
Price

1

C.D.I. UNIT ASSY

5TG-85540-10-00

Unavailable

2

BAND

5TG-85546-00-00

Unavailable

3

IGNITION COIL ASSY

5TA-82310-10-00

$202.99

4

NEUTRAL SWITCH ASSY

3GB-82540-01-00

$58.99

5

GASKET (1KH,1.0T)

90430-10148-00

$5.60

6

THERMO SWITCH ASSY

5EB-82560-01-00

$45.99

7

THERMO SWITCH ASSY

5LP-82560-01-00

$39.99

8

RECTIFIER & REGULATOR ASSY

5TG-81960-00-00

Unavailable

9

BOLT, FLANGE

95022-06020-00

$3.62

10

GT7B4 GS BATTERY - FA

GT7-B4000-00-00

Unavailable

11

SEAT, BATTERY

5D3-82122-00-00

Unavailable

12

BRACKET, BATTERY

5TG-82128-10-00

$45.99

13

PAD, BATTERY

5TG-82121-10-00

$4.63

14

STARTER RELAY ASSY (RC19-032)

5JW-81940-02-00

$123.99

15

FUSE (12V 15A)

36Y-82151-00-00

$4.94

16

WIRE, PLUS LEAD

5TG-82115-00-00

Unavailable

17

RELAY ASSY

12R-81950-02-00

Unavailable

18

BOLT, FLANGE

95022-06008-00

Unavailable

19

CLAMP(3XV)

90464-15157-00

Unavailable

20

BOLT, FLANGE

90105-06084-00

Unavailable

21

PAD, BATTERY

5TG-82121-10-00

$4.63

22

SEAT, BATTERY

5D3-82123-00-00

Unavailable

23

DAMPER

22F-2139X-00-00

Unavailable

24

WIRE, LEAD

5TG-82541-00-00

Unavailable

25

WIRE, MINUS LEAD

5TG-82116-01-00

Unavailable

26

BOLT, FLANGE

95022-06008-00

Unavailable

27

MAIN SWITCH ASSY

5TG-82510-02-00

Unavailable

28

NUT, MAIN SWITCH

3HN-82569-00-00

Unavailable

29

CAP, KEY

3HN-82579-00-00

Unavailable

30

PILOT LIGHT ASSY

5TG-83530-00-00

Unavailable

31

BULB (12V-1.7W)

3FV-83517-00-00

Unavailable

32

WIRE HARNESS ASSY

5D3-82590-00-00

Unavailable

33

CIRCUIT BREAKER ASSY

5ND-82180-00-00

Unavailable

34

THERMO SWITCH ASSY

5ND-82560-00-00

Unavailable

35

DIODE ASSY

4WA-81980-00-00

Unavailable

36

DIODE ASSY

3WP-81980-00-00

Unavailable

37

CLAMP(4FM)

90464-15195-00

Unavailable

38

CLAMP(4FM)

90464-15195-00

Unavailable

39

CLAMP(4FM)

90464-15195-00

Unavailable

40

CLAMP(53Y)

90464-15065-00

Unavailable

41

CLAMP(53Y)

90464-15065-00

Unavailable

42

BAND, SWITCH CORD

437-83936-01-00

Unavailable

43

CLAMP(4AP)

90464-20181-00

Unavailable

44

CLAMP(4AP)

90464-20181-00

Unavailable

45

CLAMP

90464-20159-00

Unavailable

46

CLAMP(4FM)

90464-15195-00

Unavailable

47

CLAMP (8M1)

90464-30040-00

Unavailable

48

BAND, SWITCH CORD

437-83936-11-00

Unavailable

49

STOP SWITCH ASSY

5TG-82530-10-00

Unavailable

50

STAY, STOP SWITCH

5TG-2144G-10-00

Unavailable

51

SCREW, BIND(J45)

98980-06012-00

Unavailable

52

CLAMP(4FM)

90464-15195-00

Unavailable

53

CLAMP (8M1)

90464-30040-00

Unavailable

54

BAND, SWITCH CORD

437-83936-11-00

Unavailable

55

CLAMP(4FM)

90464-15195-00

Unavailable

56

CLAMP

90464-20031-00

Unavailable

57

CLAMP

90464-25267-00

Unavailable

58

CLAMP(4BD)

90464-48174-00

Unavailable

59

CLAMP (6E5)

90465-13M11-00

Unavailable

60

RESISTOR ASSY

5TG-85370-00-00

Unavailable

61

BOLT

91312-05010-00

Unavailable

62

CLAMP(4FM)

90464-15195-00

Unavailable

63

CLAMP(3XV)

90464-15157-00

Unavailable

64

CLAMP(4BD)

90464-48174-00

Unavailable

65

RELAY ASSY

5DM-81950-01-00

Unavailable

66

BAND, SWITCH CORD

437-83936-11-00

Unavailable

67

KEY BLANK (A-TYPE)

89890-56001-00

Unavailable

68

KEY BLANK (B-TYPE)

89890-56002-00

Unavailable
