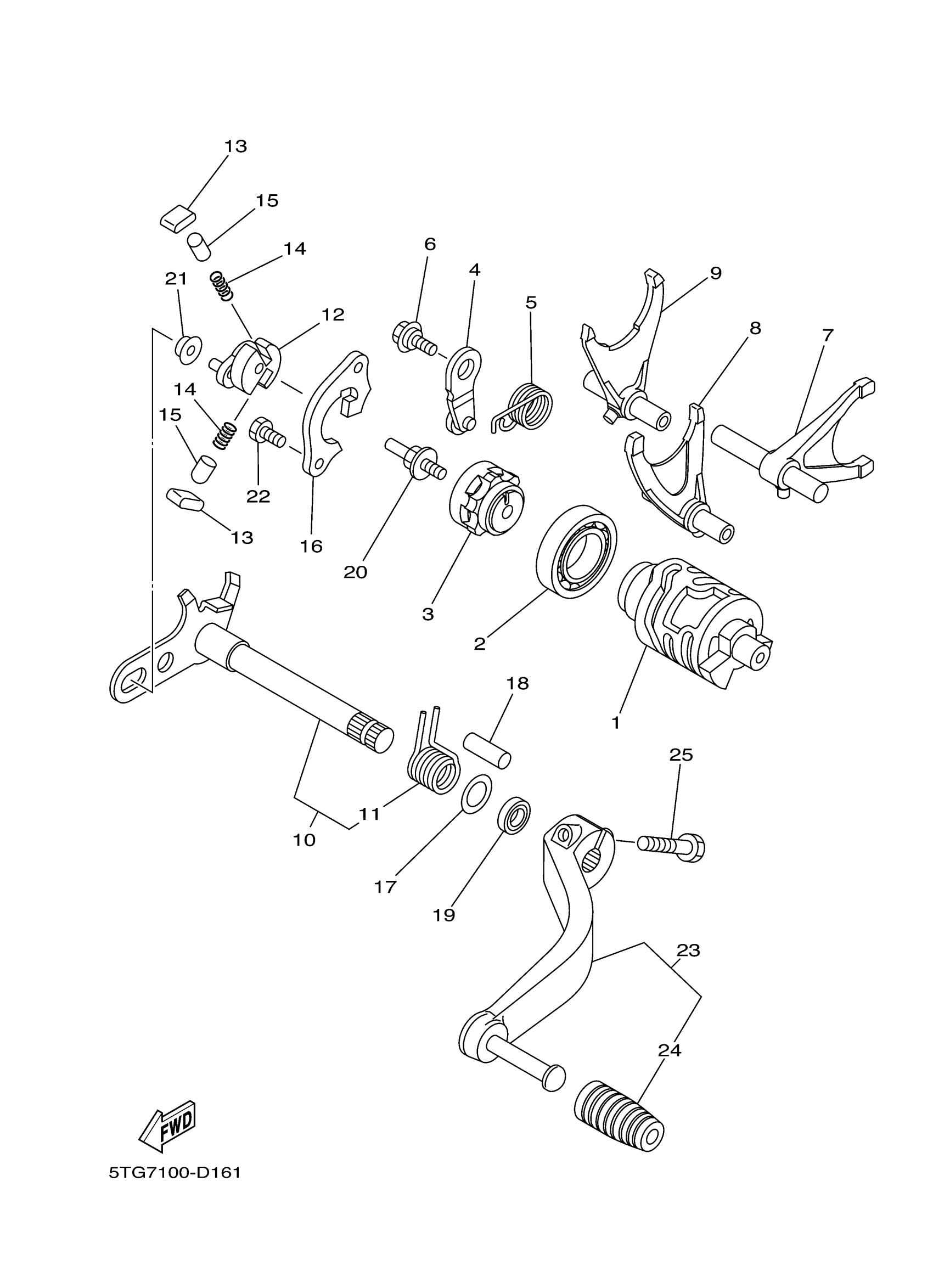

Yamaha YFZ450SPV (YFZ450 SPECIAL EDITION) 5TGG 2006 SHIFT CAM FORK Diagram

#

Description
Price

1

CAM, SHIFT

5TG-18541-01-00

Unavailable

2

BEARING (5K5)

93306-90501-00

$41.99

3

SEGMENT

4EW-18185-00-00

$109.99

4

STOPPER LEVER ASSY

3XK-18140-00-00

$23.99

5

SPRING, TORSION (17W)

90508-26561-00

$9.49

6

BOLT

90109-06036-00

$9.49

7

FORK, SHIFT 1

5TG-18501-00-00

$121.99

8

FORK, SHIFT 2

5TG-18502-00-00

$108.99

9

FORK, SHIFT 3

5TG-18503-00-00

$103.99

10

SHIFT SHAFT ASSY

5TG-18101-10-00

$74.99

11

SPRING, TORSION

90508-35015-00

$9.49

12

LEVER, SHIFT 2

5MW-18122-01-00

$85.99

13

PAWL, SHIFTER

3XJ-18182-00-00

$15.49

14

SPRING, COMPRESSION(3XJ)

90501-052G5-00

$8.49

15

PIN, PAWL

3XJ-18184-00-00

$15.49

16

GUIDE, SHIFT

5BE-18172-00-00

Unavailable

17

WASHER PLATE 164185720000

90201-12166-00

Unavailable

18

PIN, DOWEL

93608-33002-00

Unavailable

19

OIL SEAL (4G0)

93102-12224-00

Unavailable

20

PIN, SHIFT

3XJ-18173-10-00

Unavailable

21

ROLLER, SHIFT LEVER

3XJ-18178-00-00

Unavailable

22

BOLT

90101-06042-00

Unavailable

23

SHIFT PEDAL ASSY

5TG-18110-10-00

Unavailable

24

COVER, SHIFT PEDAL

5YT-18113-00-00

Unavailable

25

BOLT

90109-06031-00

Unavailable
