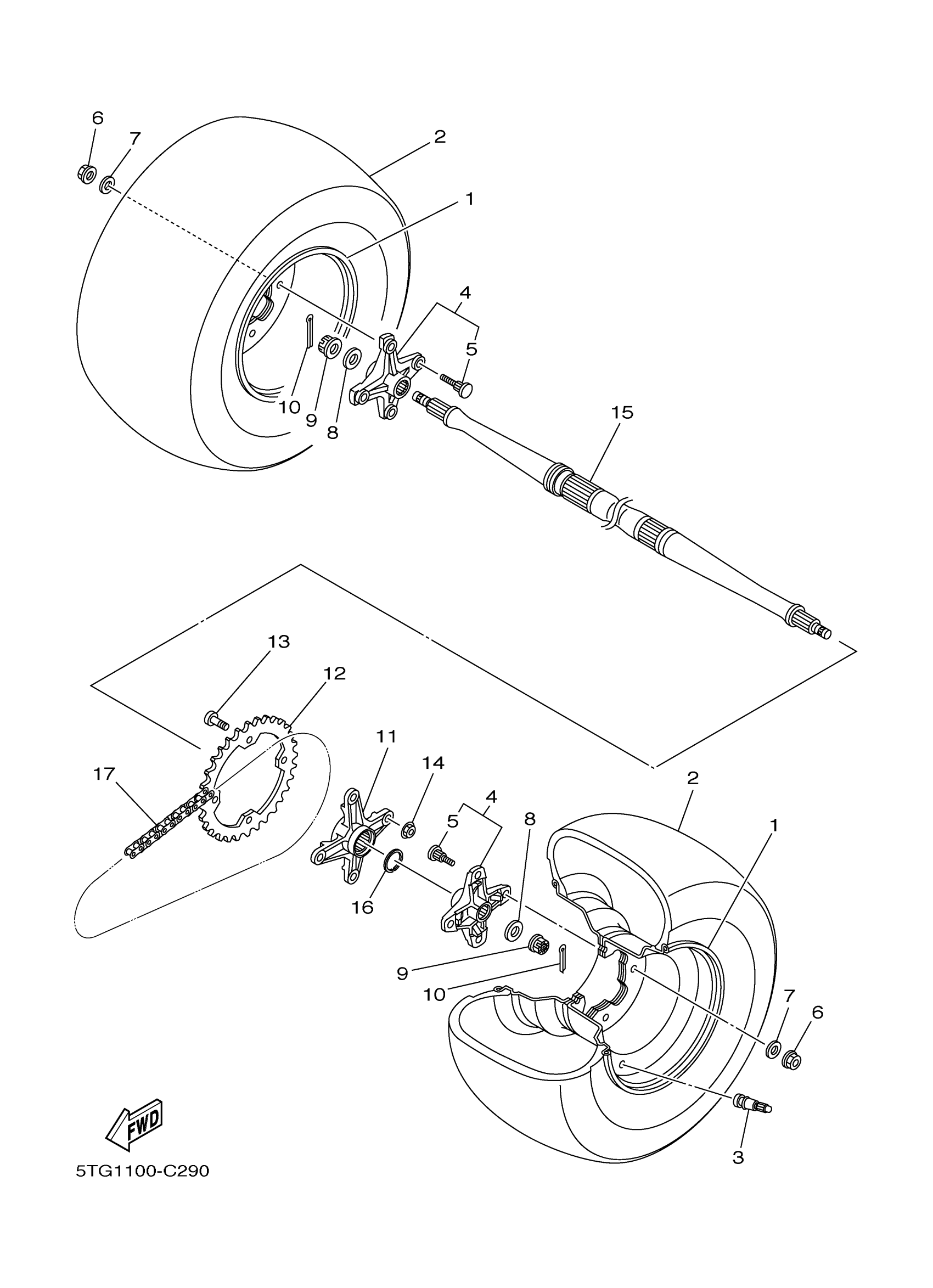

Yamaha YFZ450SPV (YFZ450 SPECIAL EDITION) 5TGG 2006 REAR WHEEL Diagram

Description

Price

REAR WHEEL COMP.

5LP-25390-11-YX

Unavailable

TIRE

94110-09015-00

Unavailable

VALVE, RIM(2GH)

93900-00030-00

$16.99

WHEEL SHAFT COLLAR ASSY.

1PE-F53K0-00-00

$74.99

BOLT, SERRATION

90114-10013-00

$7.49

NUT, FLANGE(3BM)

95704-10500-00

$4.29

958-69527-00 WASHER, PLAIN

92990-10200-00

$3.72

WASHER, PLATE(3HN)

90201-163M0-00

$13.49

NUT, CASTLE

90171-16001-00

Unavailable

PIN, COTTER

91490-30030-00

$8.49

COLLAR, SPROCKET AXLE

1S3-25386-00-00

$165.99

SPROCKET, DRIVEN (38T)

5TG-25438-10-00

$43.99

BOLT

90109-10013-00

$7.49

NUT, SELF-LOCKING

90185-10011-00

$5.60

AXLE, WHEEL

5TG-25381-10-00

Unavailable

CIRCLIP

1S3-25415-00-00

Unavailable

CHAIN

94582-13096-00

Unavailable
