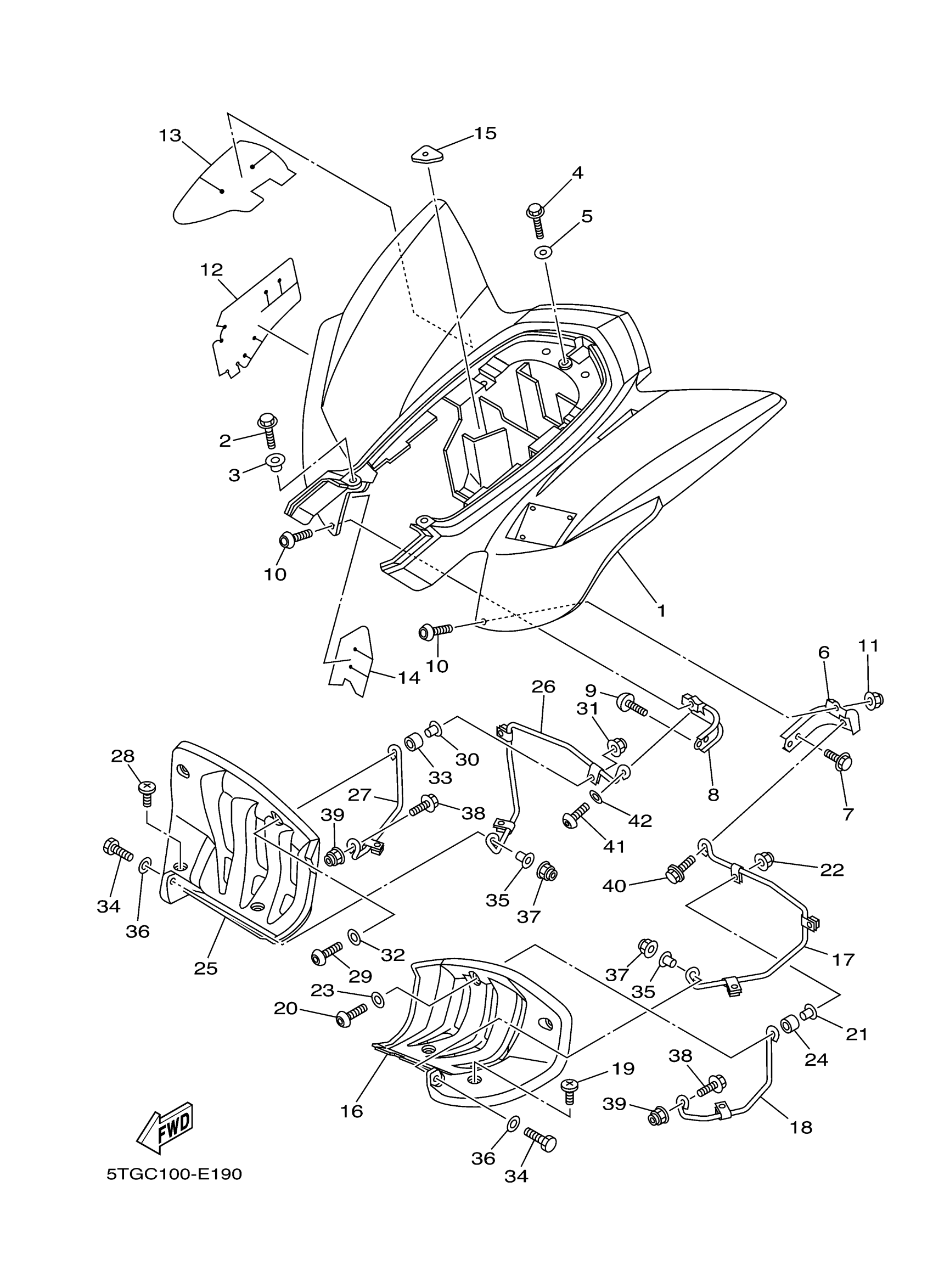

Yamaha YFZ450SPV (YFZ450 SPECIAL EDITION) 5TGG 2006 REAR FENDER Diagram
#
Description
Price
1
REAR FENDER COMP.
5TG-W2161-42-00
Unavailable
16
FLAP
5TG-21621-00-00
Unavailable
17
STAY 1
5TG-2164F-10-00
Unavailable
18
STAY 3
1S3-2164H-00-00
Unavailable
19
SCREW, BINDING (10V)
90154-05013-00
Unavailable
20
BOLT, BUTTON
92017-06035-00
Unavailable
21
SPACER (4F2)
90560-06201-00
Unavailable
23
WASHER, PLATE (8K2)
90201-06778-00
Unavailable
24
COLLAR
90387-06197-00
Unavailable
25
FLAP
5TG-21691-00-00
Unavailable
26
STAY 2
5TG-2164G-20-00
Unavailable
27
STAY 4
1S3-2164J-20-00
Unavailable
28
SCREW, BINDING (10V)
90154-05013-00
Unavailable
29
BOLT, BUTTON
92017-06035-00
Unavailable
30
SPACER (4F2)
90560-06201-00
Unavailable
32
WASHER, PLATE (8K2)
90201-06778-00
Unavailable
33
COLLAR
90387-06197-00
Unavailable
34
BOLT, HEXAGON
97017-06025-00
Unavailable
35
COLLAR
90387-06204-00
Unavailable
36
WASHER, PLATE
90201-06013-00
Unavailable
38
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
39
NUT, SELF-LOCKING
90185-08169-00
Unavailable
40
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
41
BOLT, BUTTON
92017-08020-00
Unavailable
42
WASHER, PLATE(3XP)
90201-086P8-00
Unavailable
