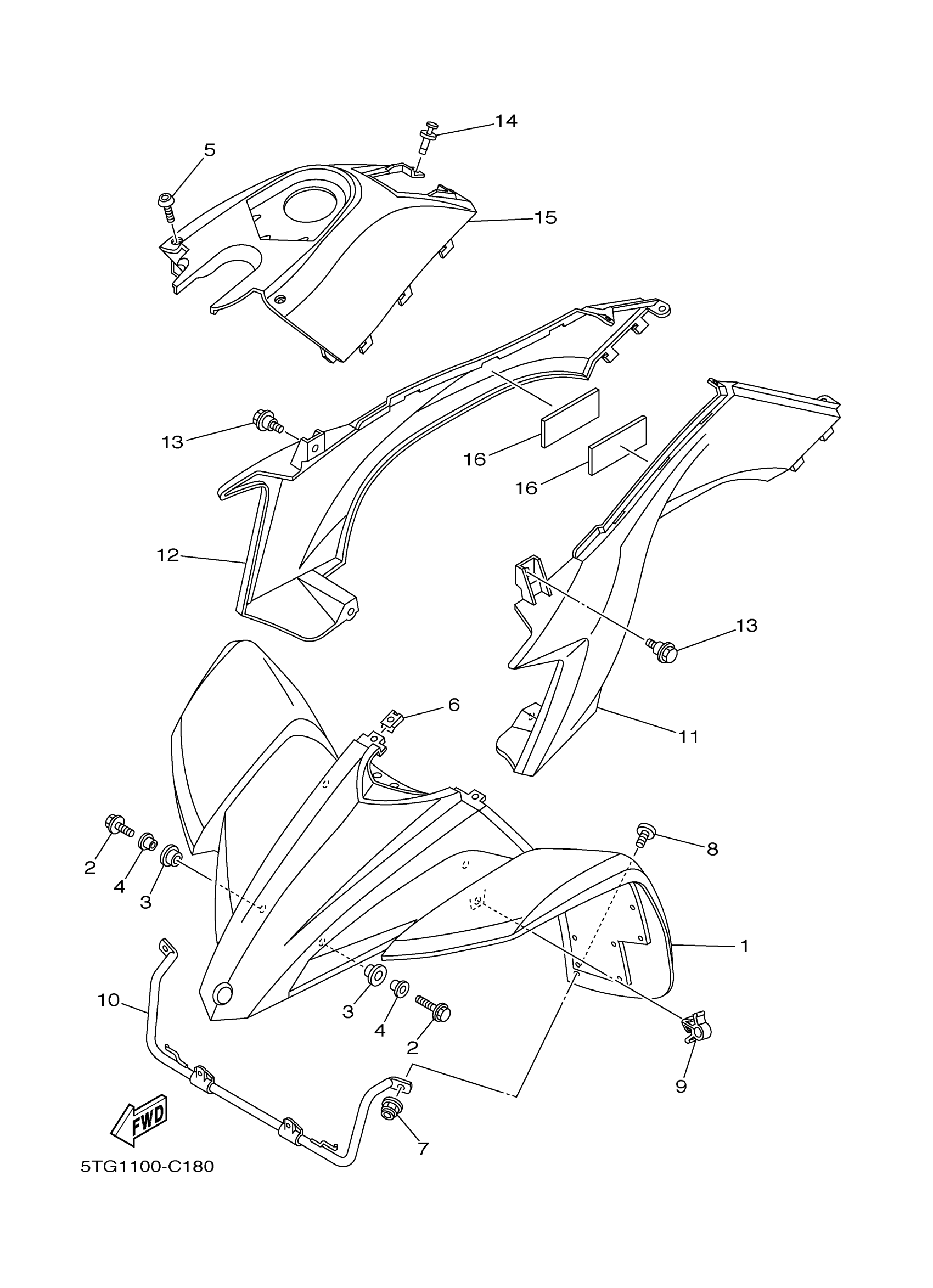

Yamaha YFZ450SPV (YFZ450 SPECIAL EDITION) 5TGG 2006 FRONT FENDER Diagram

Description

Price

FRONT FENDER COMP.

5TG-W2151-40-00

Unavailable

BOLT, FLANGE

95817-06016-00

$1.40

GROMMET

90480-15006-00

$5.39

COLLAR(42G)

90387-062L2-00

$5.30

BOLT,HEX. SOCKET BUTTON

90111-05059-00

$2.00

NUT, SPRING

90183-05008-00

$6.22

NUT,SELF-LOCKING

95607-06200-00

$10.09

BOLT

90111-06038-00

$3.22

CLAMP(4BD)

90464-48174-00

$2.59

STAY, FENDER 1

5TG-21513-10-00

$66.70

COVER, SIDE 1

5TG-21711-30-00

Unavailable

COVER, SIDE 2

5TG-21721-30-00

Unavailable

BOLT(3KJ)

90109-063F1-00

$2.15

RIVET

90269-06002-00

$5.75

COVER, TOP

5TG-2171A-40-00

Unavailable

DAMPER 1

5TG-21541-00-00

Unavailable
