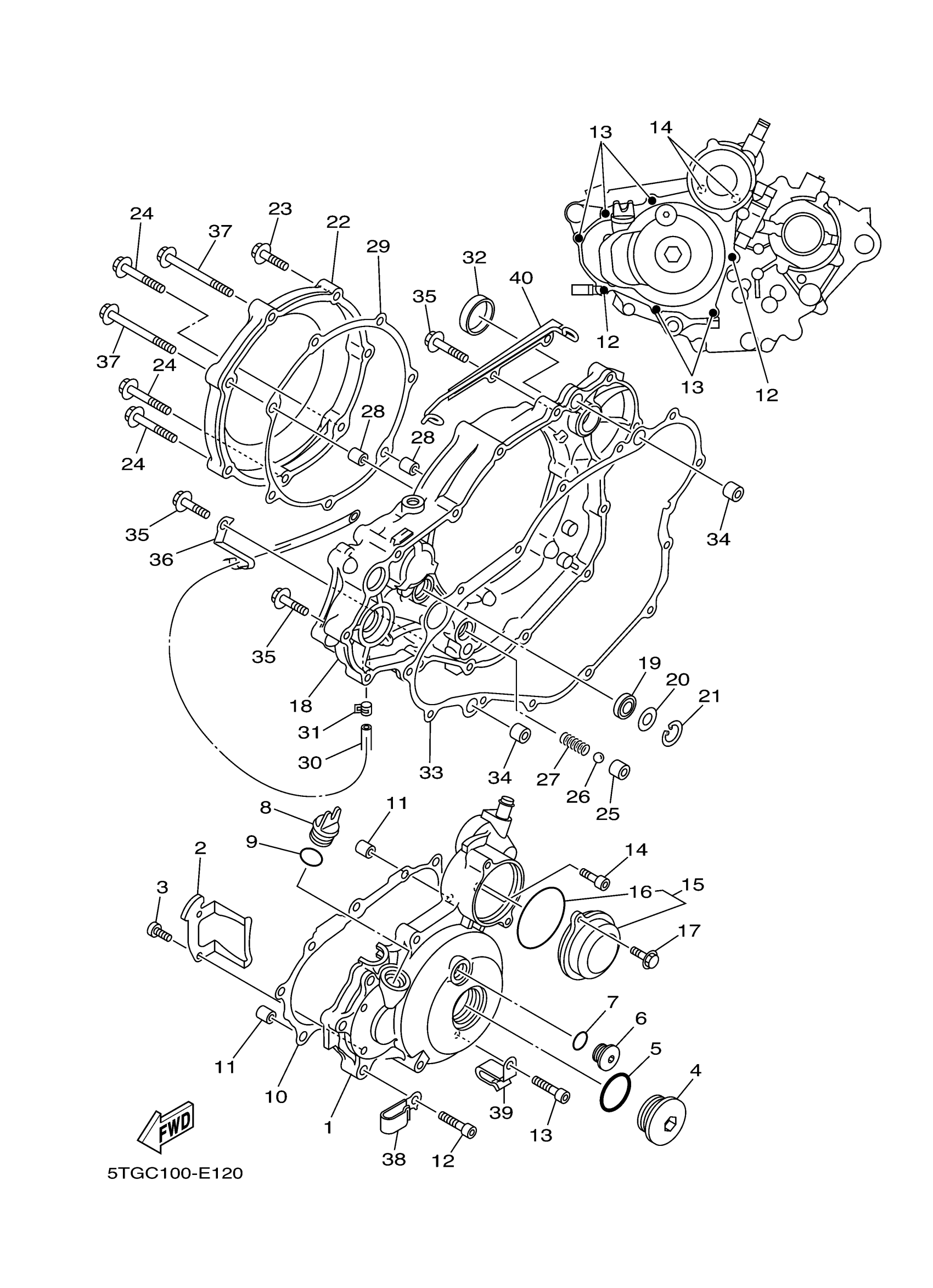

Yamaha YFZ450SPV (YFZ450 SPECIAL EDITION) 5TGG 2006 CRANKCASE COVER 1 Diagram
#
1
COVER, CRANKCASE 1
5TG-15411-10-00
Unavailable
2
CLAMP
90465-10017-00
Unavailable
9
O-RING (646)
93210-19123-00
Unavailable
15
COVER ASSY 2
5TG-1549B-10-00
Unavailable
16
O-RING (4H7)
93210-60426-00
Unavailable
17
BOLT, FLANGE(2UJ)
95024-06016-00
Unavailable
18
COVER, CRANKCASE 3
5TG-15431-10-00
Unavailable
19
OIL SEAL(4GY)
93101-14164-00
Unavailable
20
WASHER (566)
90201-15701-00
Unavailable
21
CIRCLIP
99009-22500-00
Unavailable
22
COVER, GENERATOR
5TG-15415-00-00
Unavailable
23
BOLT, FLANGE(4AS)
95024-06030-00
Unavailable
24
BOLT, FLANGE(4KM)
95024-06040-00
Unavailable
25
SEAT, CHECK BALL
583-13113-00-00
Unavailable
26
BALL
93503-08007-00
Unavailable
27
SPRING, COMPRESSION(1VJ)
90501-043E0-00
Unavailable
29
GASKET
5TA-15453-00-00
Unavailable
30
HOSE (L1050)
90445-072G8-00
Unavailable
31
CLIP(42X)
90467-07093-00
Unavailable
32
PLUG (3L3)
90338-30096-00
Unavailable
33
GASKET, CRANKCASE COVER 3
5TG-15462-02-00
Unavailable
34
PIN, DOWEL(J38)
91812-16001-00
Unavailable
35
BOLT, FLANGE(4AS)
95024-06030-00
Unavailable
36
CLAMP
90462-08049-00
Unavailable
37
BOLT, FLANGE
95024-06080-00
Unavailable
38
CLAMP
90462-08044-00
Unavailable
39
CLAMP
90462-10025-00
Unavailable
40
CLAMP 2
5TG-15484-10-00
Unavailable
