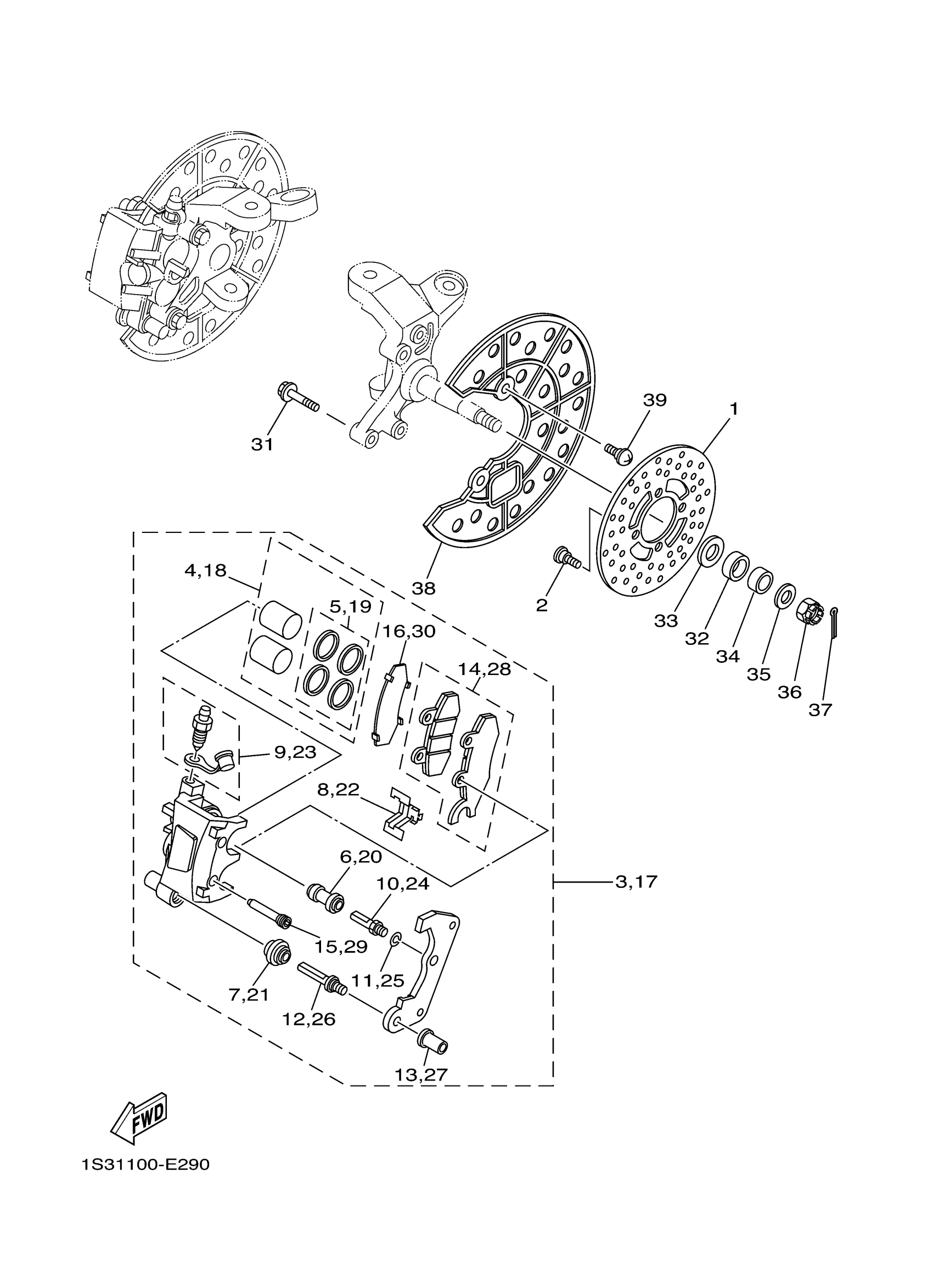

Yamaha YFZ450SP2X (YFZ450 SPECIAL EDITION II) 5D3J 2008 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISC, BRAKE (LEFT)

3GD-2582T-10-00

$202.99

2

BOLT

90109-08087-00

$8.49

3

CALIPER ASSY (LEFT

5TG-2580T-12-00

$285.99

4

PISTON ASSY, CALIPER

5TG-W0057-00-00

$77.99

5

CALIPER SEAL KIT

3LC-W0047-50-00

$58.99

6

BOOT 2

1UY-25937-51-00

$14.49

7

BOOT, CALIPER

3JD-25917-00-00

$8.99

8

SUPPORT, PAD

3JD-25919-00-00

$27.99

9

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

10

BOLT

1UY-25926-51-00

$4.47

11

WASHER, SPRING

1UY-25938-51-00

Unavailable

12

BOLT

3JD-25926-00-00

$7.99

13

NUT

3JD-25961-00-00

$8.99

14

BRAKE PAD KIT

5TG-W0045-22-00

$44.99

15

PIN, PAD

5TG-25924-00-00

$16.49

16

SHIM, CALIPER

1S3-25828-00-00

Unavailable

17

CALIPER ASSY (RIGH

5TG-2580U-12-00

Unavailable

18

PISTON ASSY, CALIPER

5TG-W0057-00-00

$77.99

19

CALIPER SEAL KIT

3LC-W0047-50-00

$58.99

20

BOOT 2

1UY-25937-51-00

$14.49

21

BOOT, CALIPER

3JD-25917-00-00

$8.99

22

SUPPORT, PAD

3JD-25919-00-00

$27.99

23

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

24

BOLT

1UY-25926-51-00

$4.47

25

WASHER, SPRING

1UY-25938-51-00

Unavailable

26

BOLT

3JD-25926-00-00

$7.99

27

NUT

3JD-25961-00-00

$8.99

28

BRAKE PAD KIT

5TG-W0045-32-00

Unavailable

29

PIN, PAD

5TG-25924-00-00

$16.49

30

SHIM, CALIPER

1S3-25828-00-00

Unavailable

31

BOLT, FLANGE

90105-08184-00

Unavailable

32

COLLAR

90387-20005-00

Unavailable

33

WASHER, PLATE

90201-20022-00

Unavailable

34

COLLAR(1UY)

90387-150R1-00

Unavailable

35

WASHER PLATE 248181370000

90201-14220-00

Unavailable

36

NUT, CASTLE

90171-14002-00

Unavailable

37

PIN, COTTER

91401-30025-00

Unavailable

38

RING, WHEEL 1 (LEFT)

5TG-2514A-00-00

Unavailable

39

SCREW, BINDING (31K)

90154-06014-00

Unavailable
