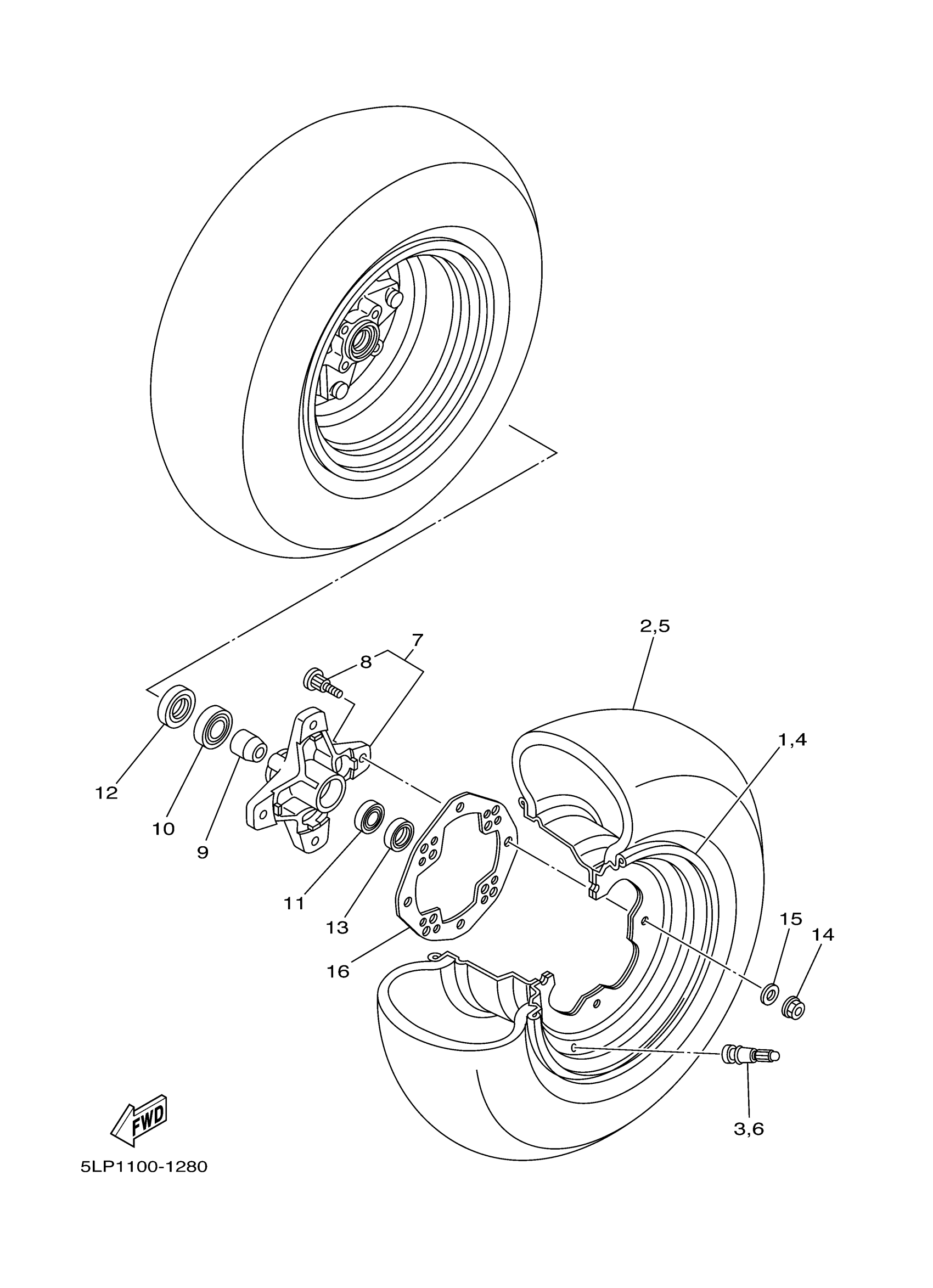

Yamaha YFZ450SEW (YFZ450 SPECIAL EDITION) 5D34 2007 FRONT WHEEL Diagram

WHEEL,FRONT

5LP-F5180-29-00

$274.99

TIRE (AT21X7R10 KT341 T/L N)

94107-10015-00

Unavailable

VALVE, RIM(2GH)

93900-00030-00

$16.99

WHEEL,FRONT

5LP-F5180-29-00

$274.99

TIRE (AT21X7R10 KT341 T/L N)

94107-10015-00

Unavailable

VALVE, RIM(2GH)

93900-00030-00

$16.99

HUB, FRONT

1S3-25111-10-00

Unavailable

BOLT, SERRATION

90114-10006-00

$5.60

SPACER, BEARING

5LP-25117-00-00

$17.49

BEARING

93306-00446-00

$43.99

. BEARING

93306-20231-00

Unavailable

OIL SEAL(1UY)

93105-26026-00

$12.49

OIL SEAL (7H5)

93102-22216-00

$11.49

NUT, FLANGE(3BM)

95704-10500-00

$4.29

958-69527-00 WASHER, PLAIN

92990-10200-00

$3.72

COVER, PLATE

1S3-25127-01-00

Unavailable
