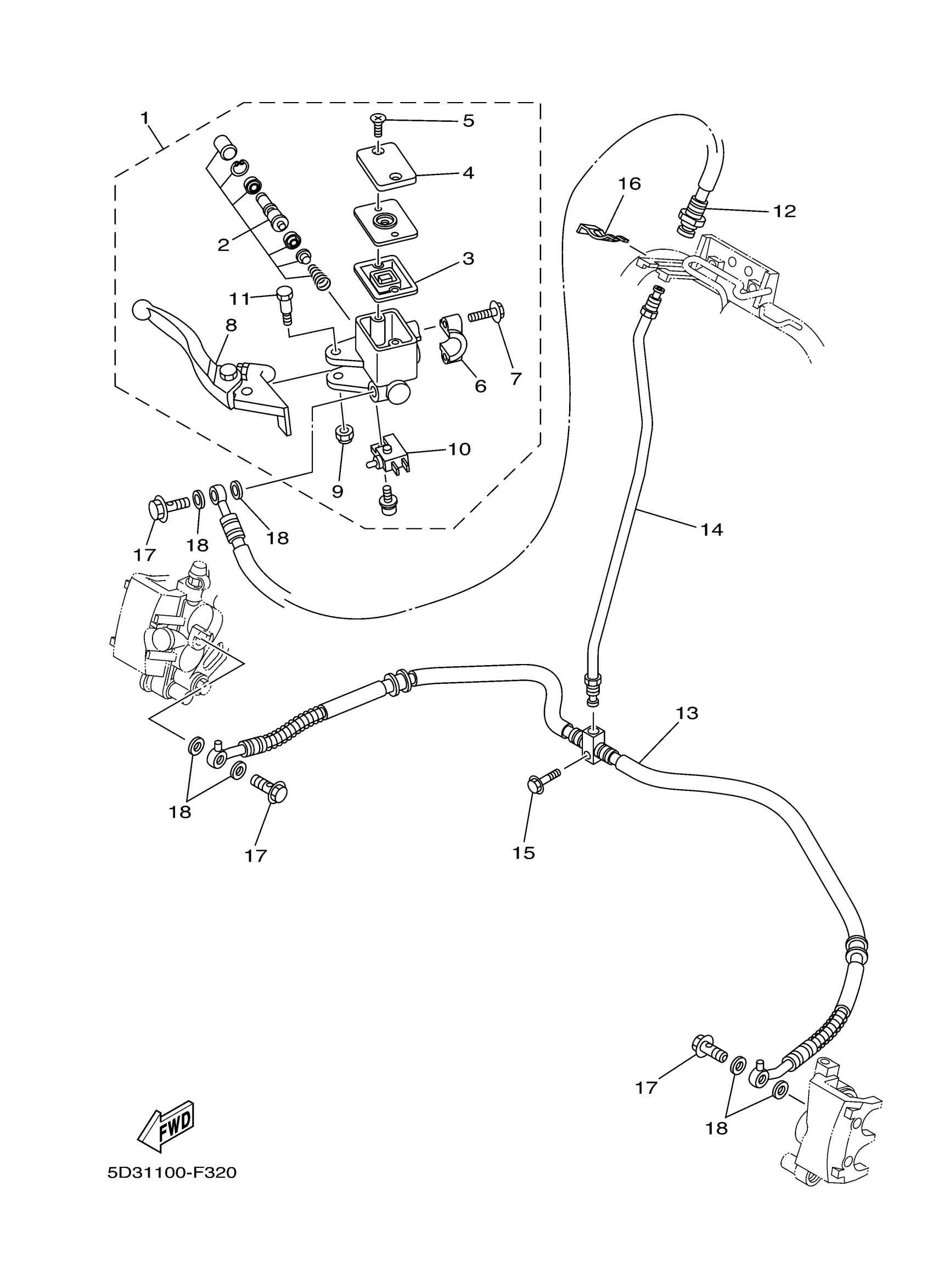

Yamaha YFZ450SEW (YFZ450 SPECIAL EDITION) 5D34 2007 FRONT MASTER CYLINDER Diagram

MASTER CYLINDER ASSY

5D3-2583T-02-00

$280.99

CYLINDER KIT, MASTER

5HH-W0041-00-00

$41.99

DIAPHRAGM, RESERVOIR

4TT-25854-00-00

$18.49

CAP, RESERVOIR

5D3-25852-00-00

$19.99

SCREW

3D8-2589H-10-00

$7.99

BRACKET, MASTER CYLINDER

5LP-25867-00-00

Unavailable

BOLT, FITTING

5MV-25833-00-00

$6.99

LEVER 2

5D3-83922-01-00

$96.99

NUT, U(4NK)

95604-06100-00

$8.49

FRONT STOP SWITCH ASSY

5D3-83980-00-00

Unavailable

BOLT, LEVER

3B4-2589F-00-00

Unavailable

HOSE, BRAKE 1

5TG-25872-10-00

Unavailable

HOSE, BRAKE 2

5TG-25873-21-00

$143.99

PIPE, BRAKE

5TG-25871-10-00

Unavailable

BOLT, FLANGE

95822-06025-00

$1.75

CIRCLIP

2GU-25866-00-00

Unavailable

BOLT, UNION(3GM)

90401-10159-00

Unavailable

WASHER, PLATE(481)

90201-10118-00

Unavailable
