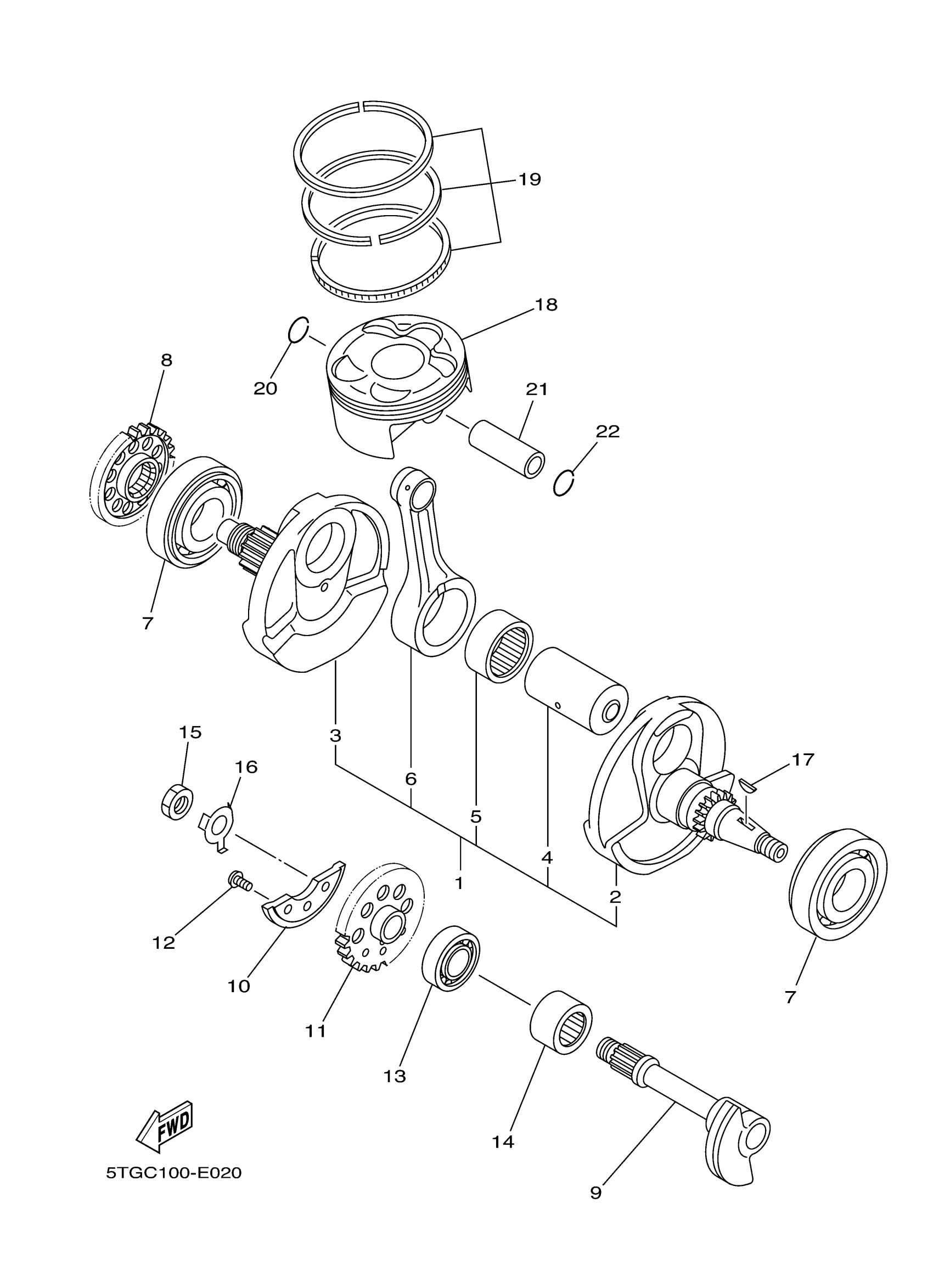

Yamaha YFZ450SEW (YFZ450 SPECIAL EDITION) 5D34 2007 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY

5TG-11400-31-00

$499.99

2

CRANK 1

5TG-11412-10-00

Unavailable

3

. CRANK 2

5TG-11422-10-00

Unavailable

4

PIN, CRANK 1

5TG-11681-01-00

$83.99

5

BEARING

93310-63437-00

$113.99

6

ROD, CONNECTING

5TG-11651-10-00

$99.99

7

BEARING

93306-30633-00

$101.99

8

GEAR, DRIVE

5TA-11536-00-00

Unavailable

9

SHAFT 1

5TA-11455-11-00

$400.99

10

WEIGHT 1

5BE-11454-00-00

Unavailable

11

GEAR, BALANCE WEIGHT

5TA-11531-01-00

Unavailable

12

SCREW

90149-06084-00

$8.49

13

BEARING(37F)

93306-20335-00

$35.99

14

BEARING, CYLINDRICAL(3YL)

93311-62574-00

$62.99

15

NUT, HEXAGON

90170-14171-00

$9.49

16

WASHER, LOCK(4GA)

90215-14287-00

Unavailable

17

KEY, WOODRUFF

90280-03006-00

Unavailable

18

PISTON (STD)

5TG-11631-12-00

Unavailable

19

PISTON RING SET (STD)

5TG-11603-00-00

Unavailable

20

CIRCLIP 341116340000

93450-22027-00

Unavailable

21

PIN, PISTON

5TG-11633-10-00

Unavailable

22

CIRCLIP 341116340000

93450-22027-00

Unavailable
