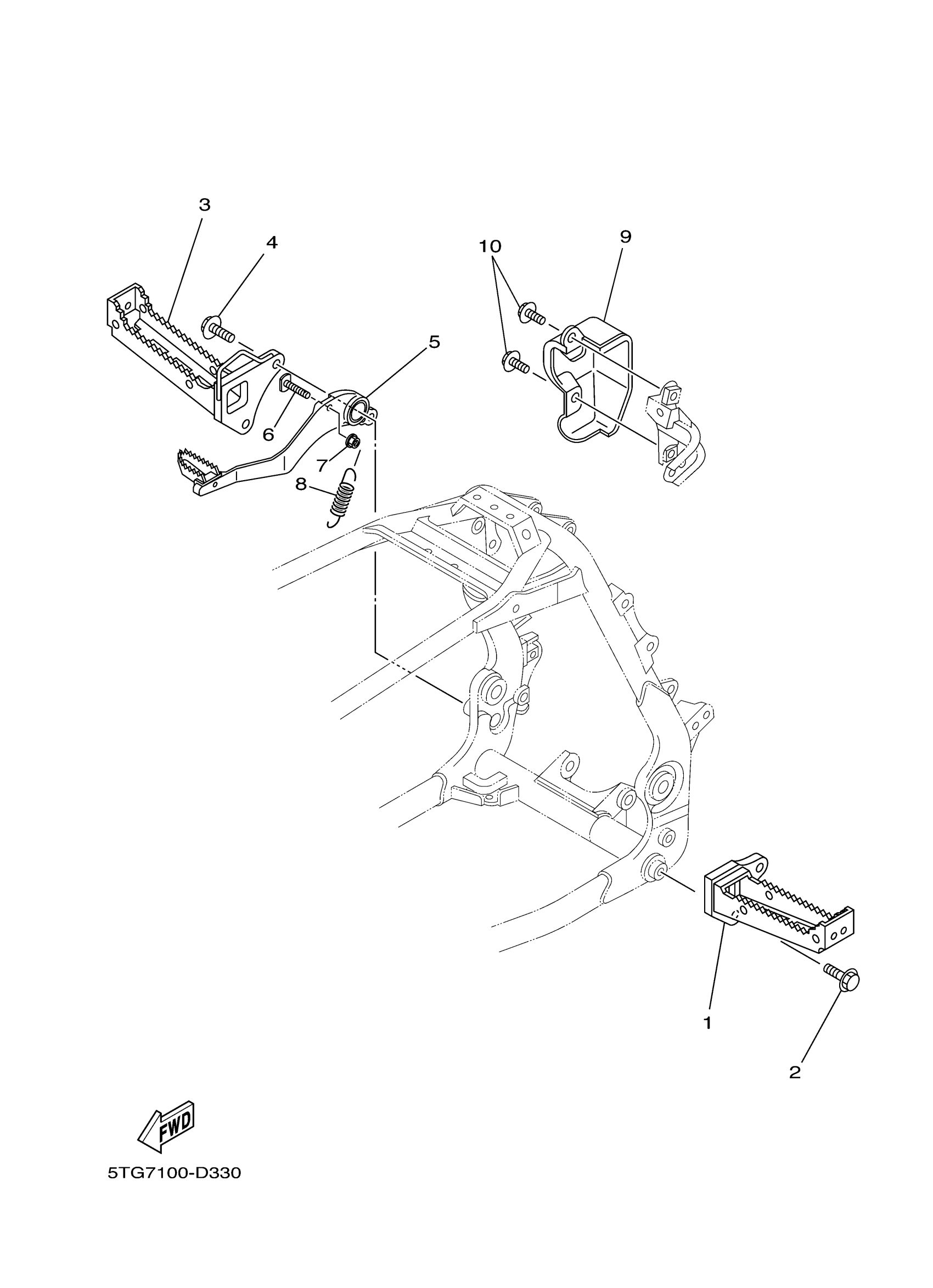

Yamaha YFZ450SET (YFZ450 SPECIAL EDITION) 5TGA 2005 STAND FOOTREST Diagram

#

Description
Price

1

FOOTREST 1

5TG-27411-01-00

Unavailable

2

BOLT, FLANGE(3GD)

95817-10025-00

$5.75

3

FOOTREST 2

5TG-27421-01-00

Unavailable

4

BOLT, FLANGE

95817-10035-00

$6.11

5

PEDAL, BRAKE

5TG-27211-10-00

Unavailable

6

PIN, PEDAL CRANK

5TG-27813-00-00

Unavailable

7

NUT,SELF-LOCKING

95607-06200-00

$10.09

8

SPRING, TENSION(1FN)

90506-20380-00

$5.55

9

COVER 1

5TG-27453-00-00

Unavailable

10

BOLT

90109-06036-00

$7.46
