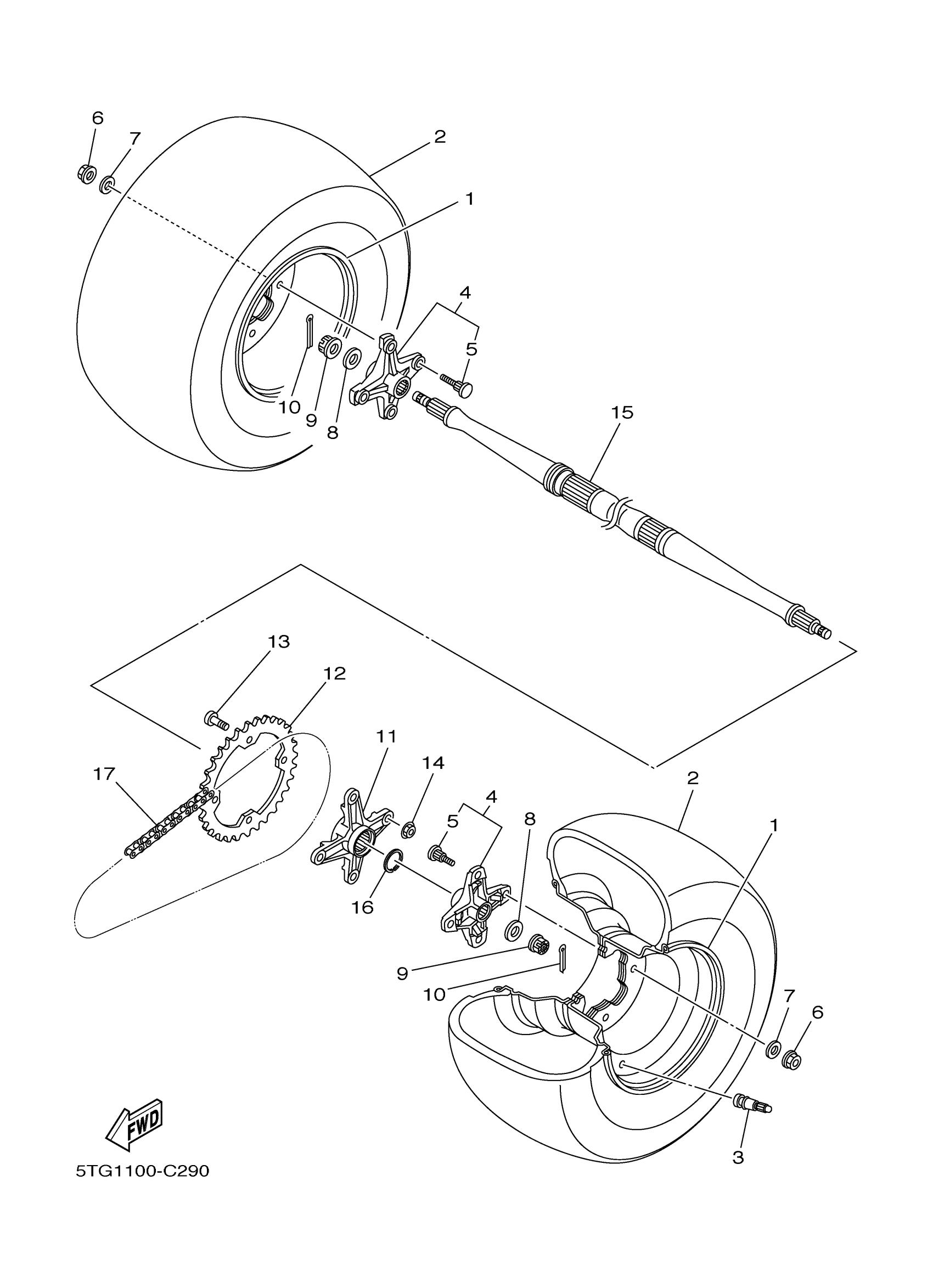

Yamaha YFZ450SET (YFZ450 SPECIAL EDITION) 5TGA 2005 REAR WHEEL Diagram

#

Description
Price

1

REAR WHEEL COMP.

5LP-25390-11-YX

Unavailable

2

TIRE

94110-09015-00

$302.70

3

VALVE, RIM(2GH)

93900-00030-00

$13.50

4

WHEEL SHAFT COLLAR ASSY.

1PE-F53K0-00-00

$64.97

5

BOLT, RIBBED NECK(3GD)

90114-10009-00

$5.50

6

NUT, FLANGE(8AB)

95707-10500-00

$1.55

7

WASHER, PLAIN(3BM)

92907-10200-00

$3.34

8

WASHER, PLATE

90201-14226-00

Unavailable

9

NUT, CASTLE (29U)

90171-14037-00

$8.39

10

PIN, COTTER

91490-30030-00

$6.88

11

COLLAR, SPROCKET AXLE

1S3-25386-00-00

$136.79

12

SPROCKET, DRIVEN (38T)

5TG-25438-10-00

$35.26

13

BOLT

90109-10010-00

$5.31

14

NUT, SELF-LOCKING(JN5)

95607-10200-00

$3.11

15

AXLE, WHEEL

5TG-25381-00-00

Unavailable

16

CIRCLIP

1S3-25415-00-00

Unavailable

17

CHAIN

94582-13096-00

Unavailable
