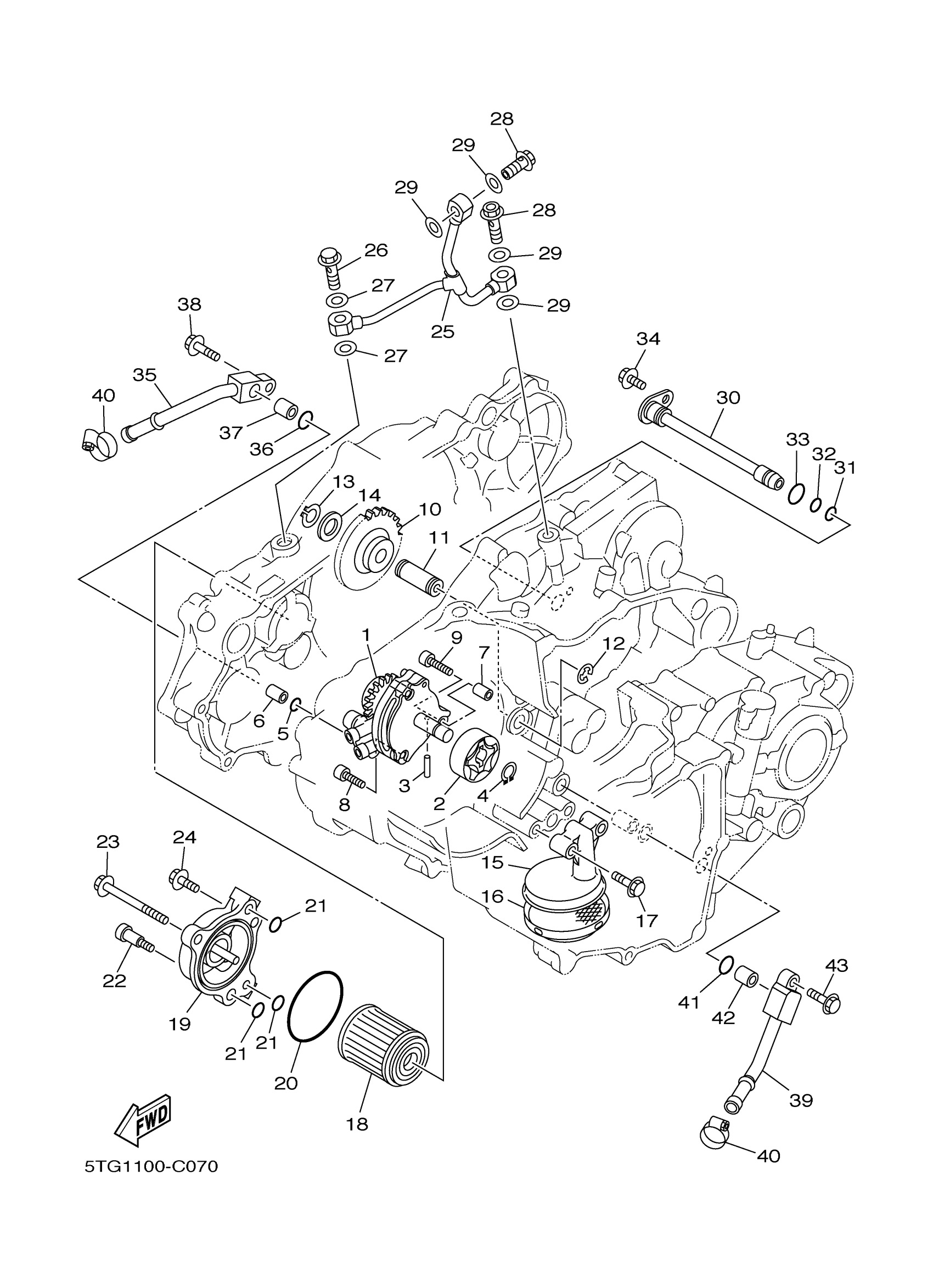

Yamaha YFZ450SET (YFZ450 SPECIAL EDITION) 5TGA 2005 OIL PUMP Diagram
#
7
PIN, DOWEL
99530-08012-00
Unavailable
8
BOLT, HEXAGON SOCKET HEAD
90110-06058-00
Unavailable
10
GEAR, OIL PUMP IDLE
5TA-13341-00-00
Unavailable
15
HOUSING, STRAINER
5TA-13412-00-00
Unavailable
16
STRAINER, OIL
5BE-13411-00-00
Unavailable
17
BOLT, SMALL FLANGE
95027-06025-00
Unavailable
18
ELEMENT ASSY, OIL CLEANER
5D3-13440-09-00
Unavailable
19
COVER, OIL ELEMENT
5BE-13447-10-00
Unavailable
20
O-RING(52H)
93210-47675-00
Unavailable
21
O-RING (583 OIL DRAIN BOLT)
93210-07135-00
Unavailable
22
BOLT
90109-065G2-00
Unavailable
23
BOLT, SMALL FLANGE
95027-06065-00
Unavailable
24
. BOLT, FLANGE
95027-06020-00
Unavailable
25
PIPE, DELIVERY 1
5TJ-13161-00-00
Unavailable
26
BOLT, UNION(3GM)
90401-10159-00
Unavailable
27
GASKET
90430-10188-00
Unavailable
28
BOLT, UNION
90401-08006-00
Unavailable
29
GASKET
90430-08119-00
Unavailable
30
PIPE, DELIVERY 2
5TG-13171-00-00
Unavailable
31
O-RING (11M)
93210-07540-00
Unavailable
32
O-RING (137)
93210-09008-00
Unavailable
33
O-RING(M01)
93210-12759-00
Unavailable
34
BOLT, FLANGE(4MY)
95027-06012-00
Unavailable
35
PIPE, OIL 1
5TG-13416-10-00
Unavailable
38
BOLT, SMALL FLANGE
95027-06025-00
Unavailable
39
PIPE, OIL 2
5TG-13418-10-00
Unavailable
40
HOSE CLAMP ASSY(64X)
90450-22M14-00
Unavailable
43
BOLT, SMALL FLANGE
95027-06025-00
Unavailable
