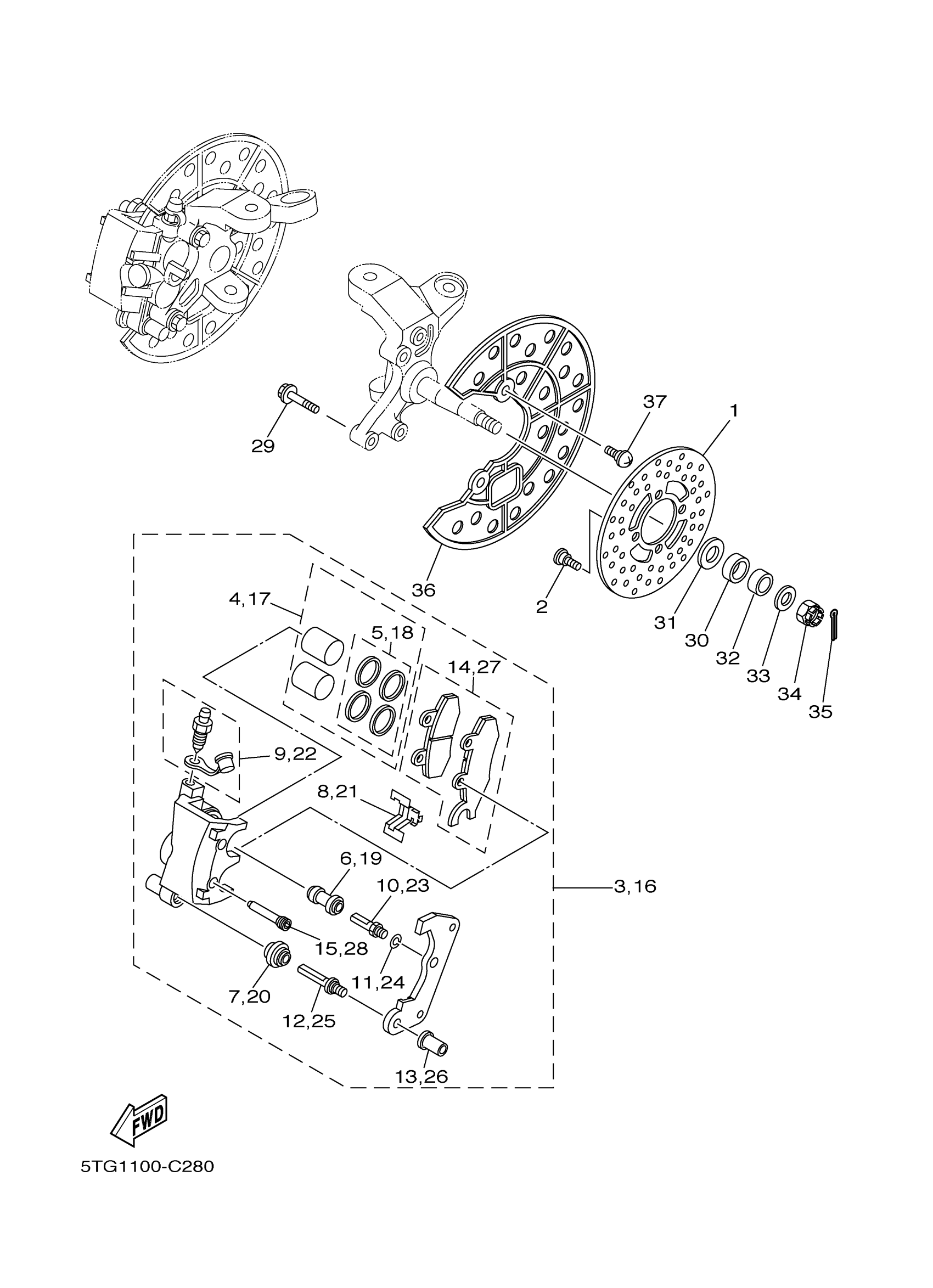

Yamaha YFZ450SET (YFZ450 SPECIAL EDITION) 5TGA 2005 FRONT BRAKE CALIPER Diagram
#
Description
Price
3
CALIPER ASSY (LEFT)
5TG-2580T-00-00
Unavailable
11
WASHER, SPRING
1UY-25938-51-00
Unavailable
14
. BRAKE PAD KIT
5TG-W0045-00-00
Unavailable
16
CALIPER ASSY (RIGHT)
5TG-2580U-00-00
Unavailable
24
WASHER, SPRING
1UY-25938-51-00
Unavailable
27
. BRAKE PAD KIT
5TG-W0045-10-00
Unavailable
29
BOLT, WASHER BASED(2XJ)
90105-08520-00
Unavailable
30
COLLAR
90387-20005-00
Unavailable
31
WASHER, PLATE (888)
90201-20279-00
Unavailable
32
COLLAR(1UY)
90387-150R1-00
Unavailable
33
WASHER PLATE 248181370000
90201-14220-00
Unavailable
34
NUT, CASTLE(2UJ)
90171-14056-00
Unavailable
35
PIN, COTTER
91401-30025-00
Unavailable
36
RING, WHEEL 1 (LEFT)
5TG-2514A-00-00
Unavailable
37
SCREW, BINDING (31K)
90154-06014-00
Unavailable
