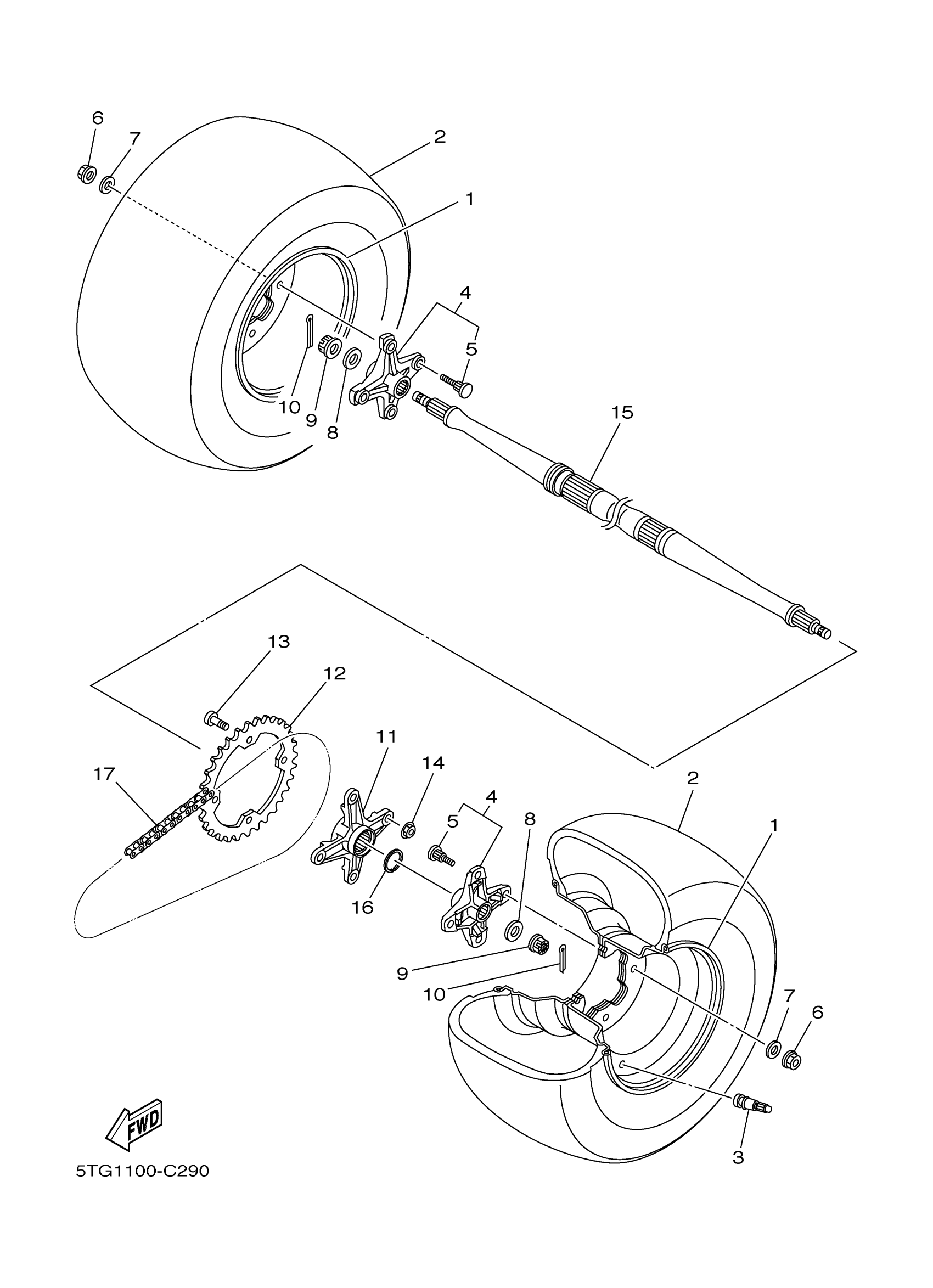

Yamaha YFZ450SE2W (YFZ450 SPECIAL EDITION 2-BLACK FLAMES) 5D38 2007 REAR WHEEL Diagram

#

Description
Price

1

WHEEL,REAR

5LP-F5390-29-00

Unavailable

2

TIRE

94110-09015-00

Unavailable

3

VALVE, RIM(2GH)

93900-00030-00

$16.99

4

WHEEL SHAFT COLLAR ASSY.

1PE-F53K0-00-00

$74.99

5

BOLT, SERRATION

90114-10013-00

$7.49

6

NUT, FLANGE(3BM)

95704-10500-00

$4.29

7

958-69527-00 WASHER, PLAIN

92990-10200-00

$3.72

8

WASHER, PLATE

90201-16023-00

$8.49

9

NUT, CASTLE

90171-16002-00

$20.99

10

PIN, COTTER

90252-03001-00

$1.96

11

COLLAR, SPROCKET AXLE

1S3-25386-00-00

$165.99

12

SPROCKET, DRIVEN (38T)

5TG-25438-10-00

$43.99

13

BOLT

90109-10013-00

$7.49

14

NUT, SELF-LOCKING

90185-10011-00

$5.60

15

AXLE, WHEEL

5D3-25381-00-00

$535.99

16

CIRCLIP

1S3-25415-00-00

Unavailable

17

CHAIN

94582-13096-00

Unavailable
