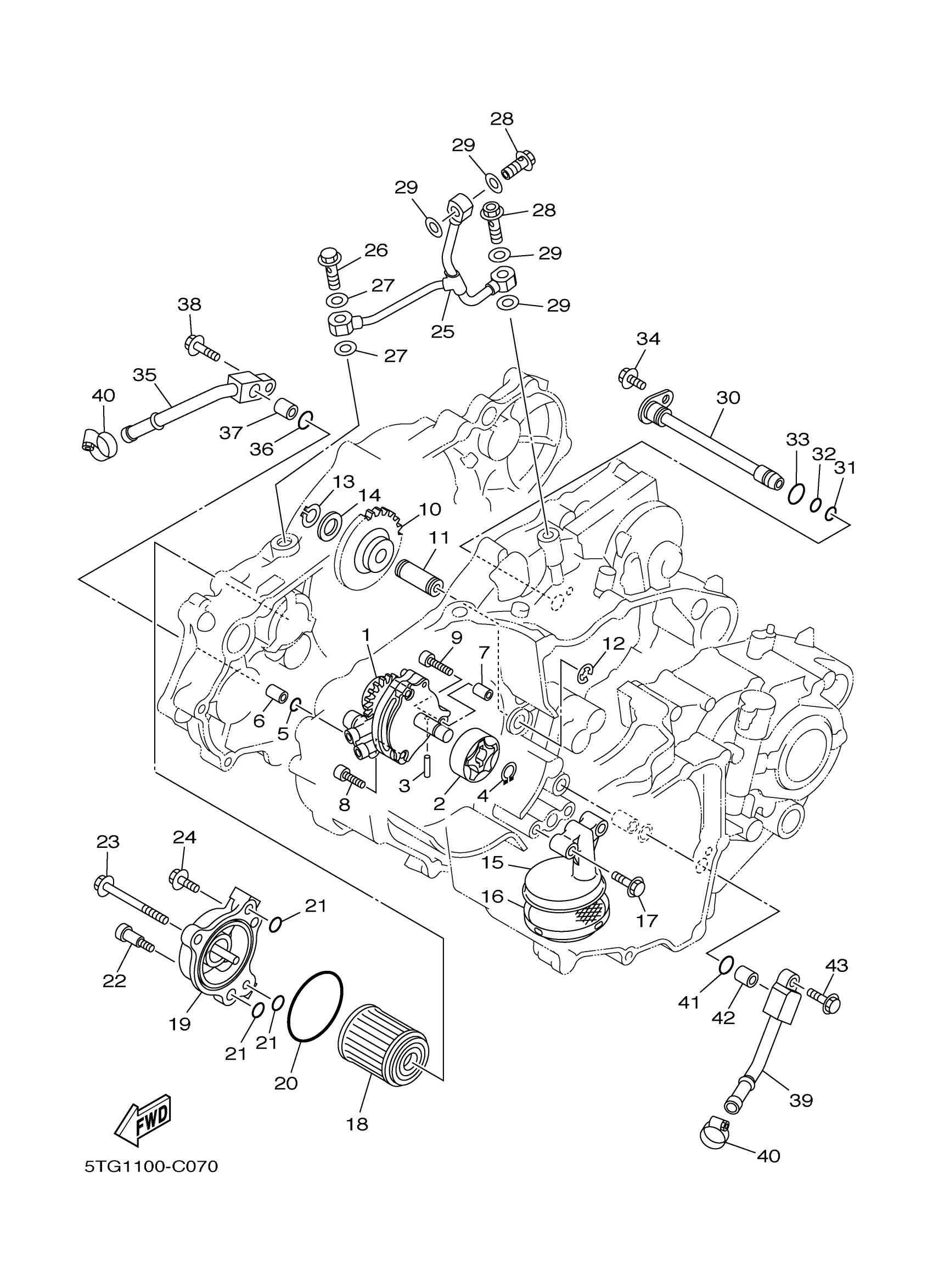

Yamaha YFZ450SE2W (YFZ450 SPECIAL EDITION 2-BLACK FLAMES) 5D38 2007 OIL PUMP Diagram

OIL PUMP ASSY

5D3-13300-00-00

$212.99

ROTOR ASSY 2

5TA-13320-00-00

$48.99

PIN, DOWEL(1HX)

93603-16219-00

$8.49

CIRCLIP(1WG)

93440-10153-00

$2.39

O-RING (371)

93210-10197-00

$7.49

PIN, DOWEL(3VD)

99530-10114-00

$2.55

PIN, DOWEL

99530-08012-00

Unavailable

BOLT,SOCKET

91317-06025-00

$5.60

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$5.60

GEAR, OIL PUMP IDLE

5TA-13341-00-00

Unavailable

SHAFT, IDLE GEAR

5BE-13342-00-00

$22.99

CIRCLIP(2R6)

99001-08600-00

$8.49

CIRCLIP(10Y)

99009-12400-00

$3.59

WASHER PLATE 164185720000

90201-12166-00

$9.49

HOUSING, STRAINER

5TA-13412-00-00

Unavailable

STRAINER, OIL

5BE-13411-00-00

Unavailable

BOLT, FLANGE

95022-06025-00

Unavailable

ELEMENT ASSY, OIL CLEANER

5D3-13440-09-00

Unavailable

COVER, OIL ELEMENT

5BE-13447-10-00

Unavailable

O-RING(52H)

93210-47675-00

Unavailable

O-RING (583 OIL DRAIN BOLT)

93210-07135-00

Unavailable

BOLT

90109-065G2-00

Unavailable

BOLT, SOCKET

91317-06065-00

Unavailable

BOLT,SOCKET

91317-06020-00

Unavailable

PIPE, DELIVERY 1

5TJ-13161-00-00

Unavailable

BOLT, UNION

90401-10015-00

Unavailable

GASKET

90430-10188-00

Unavailable

BOLT, UNION

90401-08006-00

Unavailable

GASKET

90430-08119-00

Unavailable

PIPE, DELIVERY 2

5TG-13171-00-00

Unavailable

O-RING (11M)

93210-07540-00

Unavailable

O-RING (137)

93210-09008-00

Unavailable

O-RING(M01)

93210-12759-00

Unavailable

BOLT, FLANGE

95022-06012-00

Unavailable

PIPE, OIL 1

5TG-13416-10-00

Unavailable

O-RING (371)

93210-10197-00

$7.49

PIN, DOWEL(3VD)

99530-10114-00

$2.55

BOLT, FLANGE

95022-06025-00

Unavailable

PIPE, OIL 2

5TG-13418-10-00

Unavailable

HOSE CLAMP ASSY

90450-18M09-00

Unavailable

O-RING (371)

93210-10197-00

$7.49

PIN, DOWEL(3VD)

99530-10114-00

$2.55

BOLT, FLANGE

95022-06025-00

Unavailable
