Description

Price

1

PIPE, EXHAUST 1

5TG-14611-20-00

$454.99

2

PROTECTOR, EXHAUST PIPE

5TG-14628-20-00

$106.99

3

WASHER, PLATE

90201-05015-00

$8.49

4

SCREW, BIND(1JK)

98980-06010-00

$9.49

5

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

6

GASKET, EXHAUST PIPE

3VD-14613-01-00

$11.99

7

NUT,FLANGE(J10)

95702-08500-00

$1.43

8

MUFFLER 1

5TG-14711-01-00

Unavailable

9

BOLT, WASHER BASED (7H3)

90105-10147-00

$10.49

10

WASHER, PLATE

92990-10600-00

Unavailable

11

PIPE, OUTLET

5TG-14752-09-00

Unavailable

12

BOLT, FLANGE

95022-06008-00

$8.49

13

GASKET, MUFFLER

8FA-14714-10-00

$41.99

14

PROTECTOR, MUFFLER 1

5TG-14718-00-00

$31.99

15

WASHER, PLATE

90201-05015-00

$8.49

16

SCREW, BINDING

90154-06020-00

Unavailable

17

WASHER(6TA)

92907-06200-00

Unavailable

18

CAP, SILENCER

5TG-14787-00-00

Unavailable

19

BOLT, HEXAGON SOCKET HEAD(1WG)

90110-06134-00

Unavailable

20

BAND, SILENCER

5BE-14788-00-00

Unavailable

21

BOLT, FLANGE

90105-08129-00

Unavailable

22

WASHER, PLATE

90201-08048-00

Unavailable

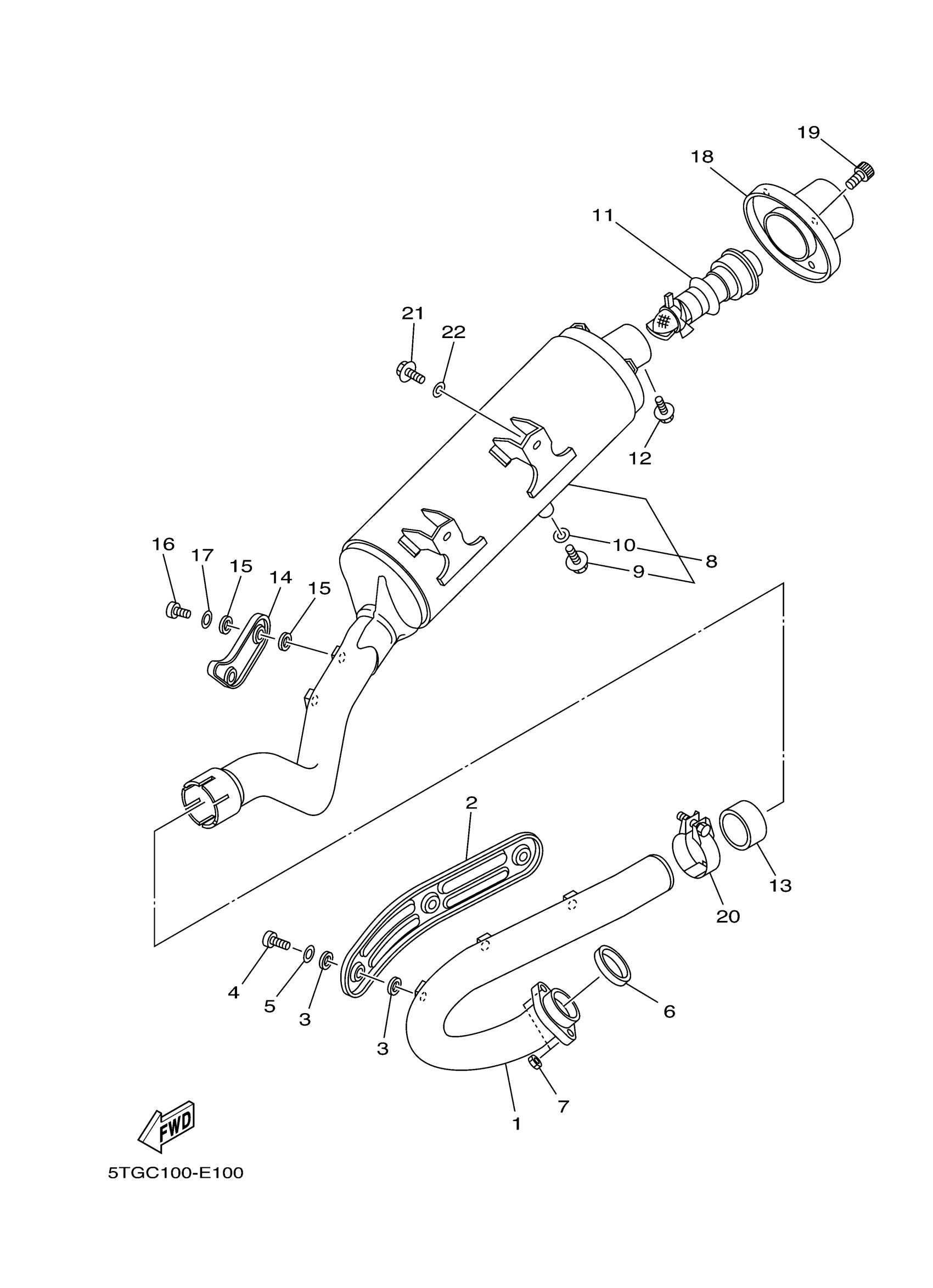

Yamaha YFZ450SE2W (YFZ450 SPECIAL EDITION 2-BLACK FLAMES) 5D38 2007 EXHAUST Diagram

PIPE, EXHAUST 1

PROTECTOR, EXHAUST PIPE

WASHER, PLATE

SCREW, BIND(1JK)

YBS66-6 WASHER, PLAIN

GASKET, EXHAUST PIPE

NUT,FLANGE(J10)

MUFFLER 1

BOLT, WASHER BASED (7H3)

WASHER, PLATE

PIPE, OUTLET

BOLT, FLANGE

GASKET, MUFFLER

PROTECTOR, MUFFLER 1

WASHER, PLATE

SCREW, BINDING

WASHER(6TA)

CAP, SILENCER

BOLT, HEXAGON SOCKET HEAD(1WG)

BAND, SILENCER

BOLT, FLANGE

WASHER, PLATE
