Description

Price

1

REAR MASTER CYLINDER ASSY

5TG-2580E-00-00

Unavailable

2

CYLINDER KIT, MASTER

5TG-W0042-50-00

$72.99

3

NUT, HEXAGON SMALL

95317-08700-00

$9.49

4

JOINT

2YK-27222-00-00

$21.99

5

PIN, BRAKE ROD

3KW-27234-00-00

$7.99

6

PIN, CLEVIS(2YK)

90240-08124-00

$7.49

7

WASHER, PLATE 1562722600

90201-08083-00

$9.49

8

PIN, COTTER

91490-16020-00

Unavailable

9

HOSE, RESERVOIR

5TG-25895-00-00

Unavailable

10

CLIP (7K7)

90467-11044-00

$8.49

11

TANK, RESERVOIR

2VN-25894-00-00

$20.99

12

CAP, RESERVOIR

4PX-25852-00-00

Unavailable

13

DIAPHRAGM, RESERVOIR

2VN-25854-00-00

$24.99

14

BUSH,DIAPHRAGM

2VN-25855-00-00

$10.99

15

HOSE, BRAKE

5TG-25874-00-00

Unavailable

16

WASHER, PLATE(481)

90201-10118-00

Unavailable

17

BOLT, UNION(3GM)

90401-10159-00

Unavailable

18

BOLT, BUTTON

92017-08025-00

Unavailable

19

BOLT, FLANGE

95817-06016-00

Unavailable

20

BOLT, UNION(3GM)

90401-10159-00

Unavailable

21

WASHER, PLATE(481)

90201-10118-00

Unavailable

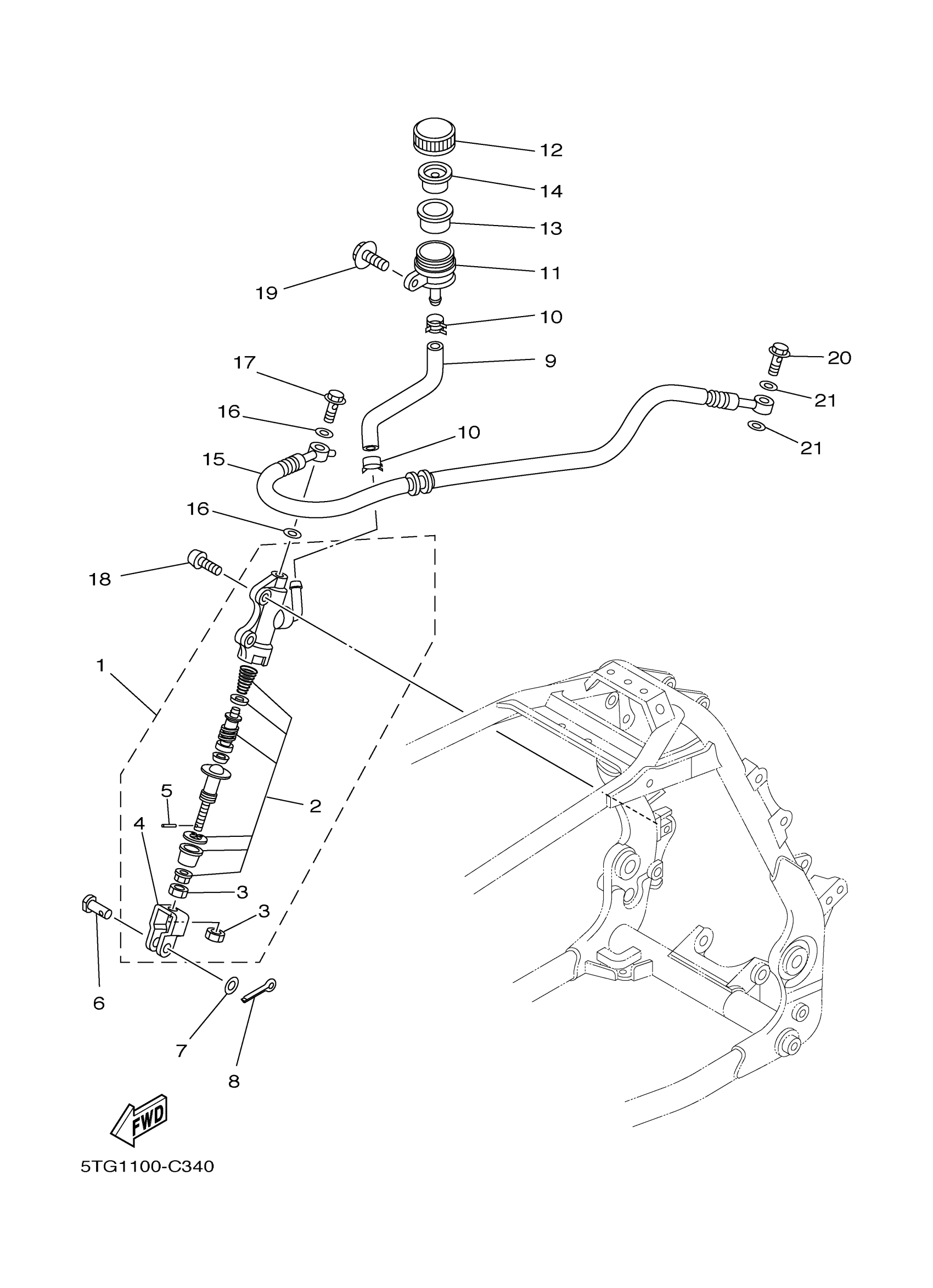

Yamaha YFZ450S (YFZ450) 5TG1 2004 REAR MASTER CYLINDER Diagram

REAR MASTER CYLINDER ASSY

CYLINDER KIT, MASTER

NUT, HEXAGON SMALL

JOINT

PIN, BRAKE ROD

PIN, CLEVIS(2YK)

WASHER, PLATE 1562722600

PIN, COTTER

HOSE, RESERVOIR

CLIP (7K7)

TANK, RESERVOIR

CAP, RESERVOIR

DIAPHRAGM, RESERVOIR

BUSH,DIAPHRAGM

HOSE, BRAKE

WASHER, PLATE(481)

BOLT, UNION(3GM)

BOLT, BUTTON

BOLT, FLANGE

BOLT, UNION(3GM)

WASHER, PLATE(481)
