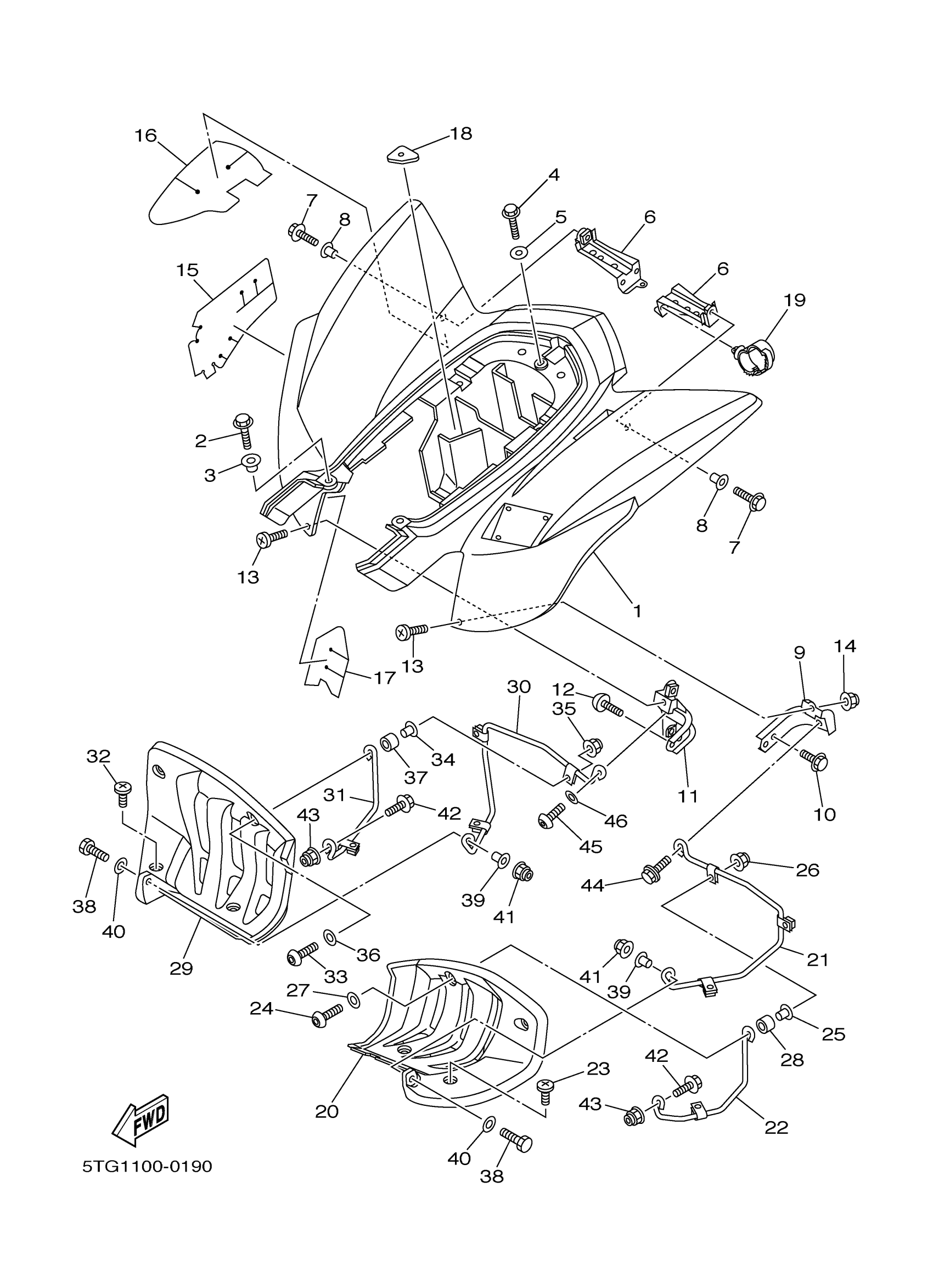

Yamaha YFZ450S (YFZ450) 5TG1 2004 REAR FENDER Diagram
#
1
REAR FENDER COMP.
5TG-W2161-01-00
Unavailable
1
REAR FENDER COMP.
5TG-W2161-11-00
Unavailable
6
STAY, FENDER 1
5TG-21613-00-00
Unavailable
7
BOLT, FLANGE
95817-06014-00
Unavailable
11
STAY, REAR
5TG-21644-00-00
Unavailable
15
COVER, REAR FENDER 1
5TG-2163A-01-00
Unavailable
16
COVER, REAR FENDER 2
5TG-2163E-00-00
Unavailable
17
COVER, REAR FENDER 3
5TG-2163F-00-00
Unavailable
18
DAMPER 2
5TG-21639-00-00
Unavailable
19
CLAMP(4AP)
90464-20181-00
Unavailable
20
FLAP
5TG-21621-00-00
Unavailable
21
STAY 1
5TG-2164F-00-00
Unavailable
22
STAY 3
1S3-2164H-00-00
Unavailable
23
SCREW, BINDING (10V)
90154-05013-00
Unavailable
24
BOLT, BUTTON
92017-06035-00
Unavailable
25
SPACER (4F2)
90560-06201-00
Unavailable
27
WASHER, PLATE (8K2)
90201-06778-00
Unavailable
28
COLLAR
90387-06197-00
Unavailable
29
FLAP
5TG-21691-00-00
Unavailable
30
STAY 2
5TG-2164G-20-00
Unavailable
31
STAY 4
1S3-2164J-20-00
Unavailable
32
SCREW, BINDING (10V)
90154-05013-00
Unavailable
33
BOLT, BUTTON
92017-06035-00
Unavailable
34
SPACER (4F2)
90560-06201-00
Unavailable
36
WASHER, PLATE (8K2)
90201-06778-00
Unavailable
37
COLLAR
90387-06197-00
Unavailable
38
BOLT, HEXAGON
97017-06025-00
Unavailable
39
COLLAR
90387-06204-00
Unavailable
40
WASHER, PLATE
90201-06013-00
Unavailable
42
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
43
NUT, SELF-LOCKING
90185-08169-00
Unavailable
44
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
45
BOLT, BUTTON
92017-08020-00
Unavailable
46
WASHER, PLATE(3XP)
90201-086P8-00
Unavailable
