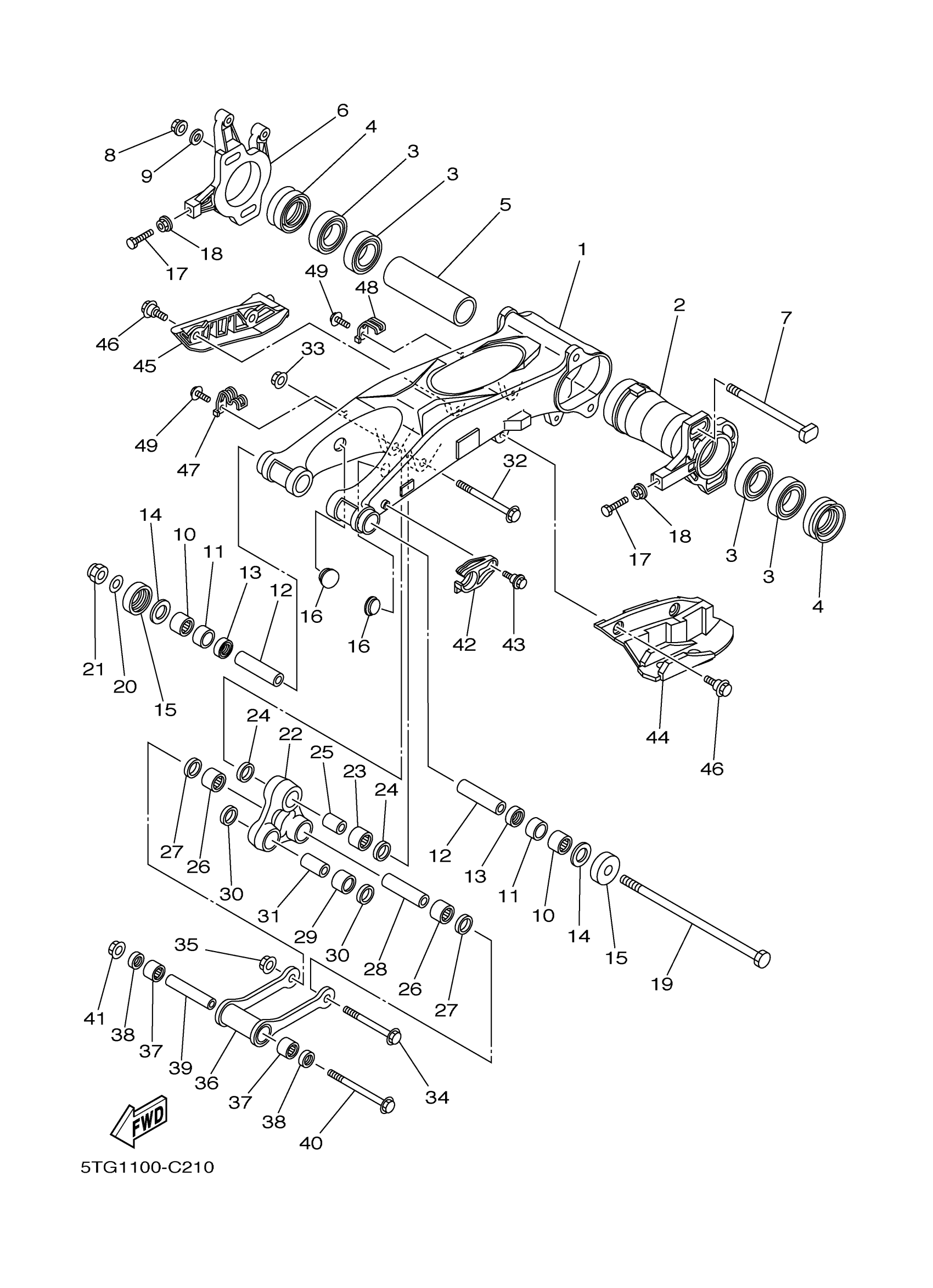

Yamaha YFZ450S (YFZ450) 5TG1 2004 REAR ARM Diagram
#
1
REAR ARM COMP.
5TG-22110-01-00
Unavailable
6
BRACKET, CALIPER
5TG-25721-00-00
Unavailable
7
BOLT
90109-12002-00
Unavailable
16
PLUG
90338-23004-00
Unavailable
17
BOLT(4SR)
90101-08777-00
Unavailable
18
NUT, FLANGE(JN5)
95707-08500-00
Unavailable
19
SHAFT, PIVOT
5LP-22141-00-00
Unavailable
20
WASHER, PLATE (5X6)
90201-160F6-00
Unavailable
21
NUT, SELF-LOCKING
90185-16002-00
Unavailable
22
ARM, RELAY
5TG-2217A-00-00
Unavailable
23
BEARING, CYLINDRICAL(3MH)
93315-32057-00
Unavailable
24
OIL SEAL
93109-20076-00
Unavailable
25
COLLAR(1FN)
90387-123M3-00
Unavailable
26
BEARING
93315-31758-00
Unavailable
27
OIL SEAL
93109-17071-00
Unavailable
28
COLLAR
90387-12018-00
Unavailable
29
BEARING, CYLINDRICAL(4RR)
93315-32052-00
Unavailable
30
OIL SEAL
93109-20076-00
Unavailable
31
COLLAR
90387-12020-00
Unavailable
32
BOLT, FLANGE
90105-12025-00
Unavailable
33
NUT, SELF-LOCKING
90185-12002-00
Unavailable
34
BOLT, FLANGE
90105-12024-00
Unavailable
35
NUT, SELF-LOCKING
90185-12002-00
Unavailable
36
ROD, CONNECTING 1
5TG-2217F-00-00
Unavailable
37
BEARING
93315-31758-00
Unavailable
38
OIL SEAL
93109-17071-00
Unavailable
39
COLLAR
90387-12019-00
Unavailable
40
BOLT, FLANGE
90105-12022-00
Unavailable
41
NUT, SELF-LOCKING
90185-12002-00
Unavailable
42
SEAL, GUARD
5TG-22151-00-00
Unavailable
43
BOLT(3KJ)
90109-063F1-00
Unavailable
44
GUARD SUB ASSY
5TG-22360-00-00
Unavailable
45
GUARD 2
5TG-22362-00-00
Unavailable
46
BOLT
90109-065G5-00
Unavailable
47
HOLDER, BRAKE HOSE
5TG-25886-00-00
Unavailable
48
HOLDER, BRAKE HOSE
5TG-25887-00-00
Unavailable
49
BOLT, FLANGE(4MY)
95027-06012-00
Unavailable
