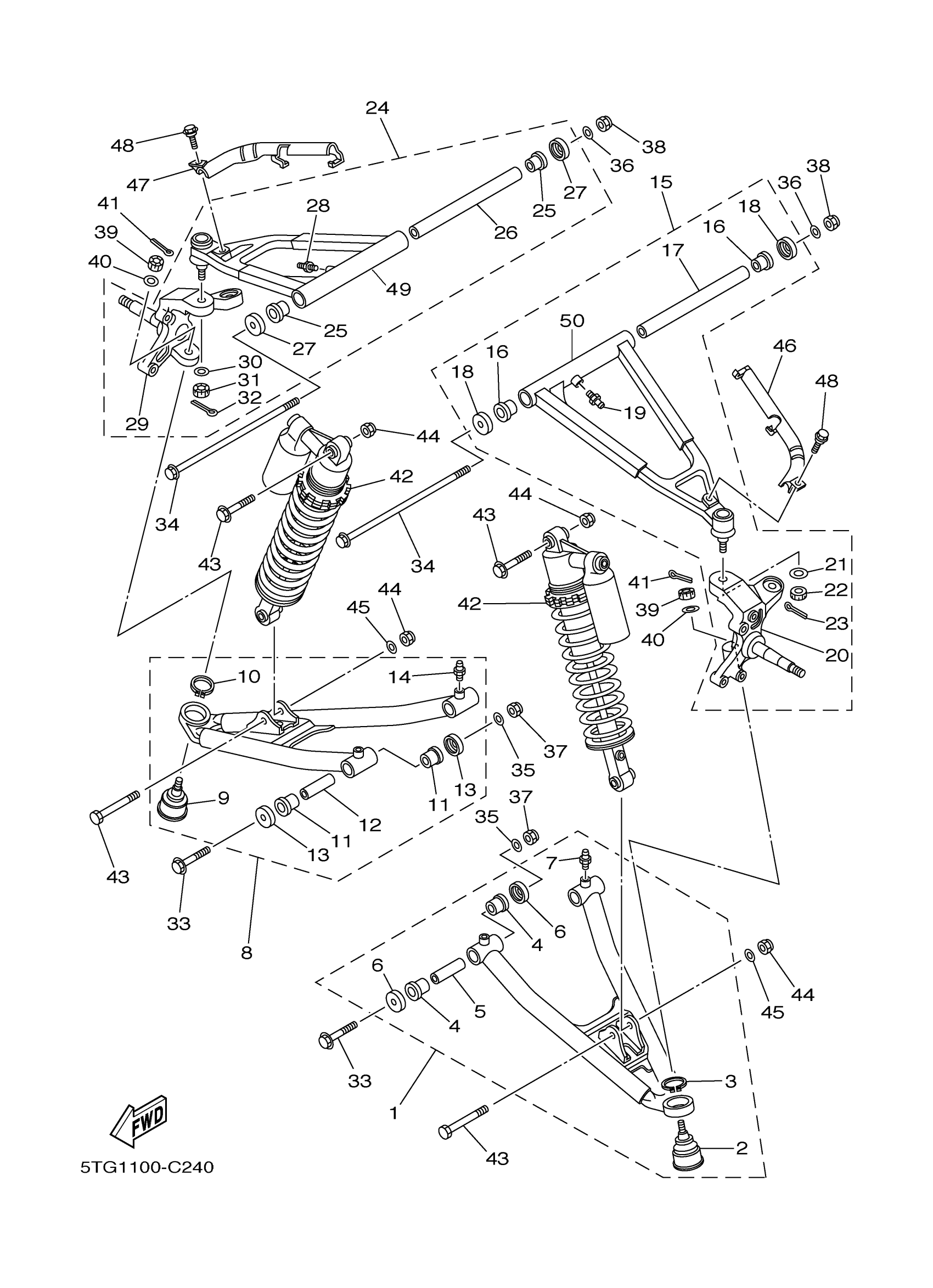

Yamaha YFZ450S (YFZ450) 5TG1 2004 FRONT SUSPENSION WHEEL Diagram
#
1
FRONT LOWER ARM SUB-ASSY (L.H)
5TG-23507-01-00
Unavailable
7
NIPPLE, GREASE
93700-06M03-00
Unavailable
14
NIPPLE, GREASE
93700-06M03-00
Unavailable
15
FRONT UPPER ARM COMP. (LEFT)
5TG-23540-02-00
Unavailable
17
COLLAR(3GG)
90387-100Y6-00
Unavailable
19
NIPPLE, GREASE
93700-06M03-00
Unavailable
20
STEERING KNUCKLE ASSY (LEFT)
1S3-23501-01-00
Unavailable
21
WASHER (25G)
90209-10229-00
Unavailable
22
NUT, CASTLE
90171-10001-00
Unavailable
23
PIN, COTTER
91490-20025-00
Unavailable
24
FRONT UPPER ARM COMP. (RIGHT)
5TG-23550-02-00
Unavailable
26
COLLAR(3GG)
90387-100Y6-00
Unavailable
28
NIPPLE, GREASE
93700-06M03-00
Unavailable
29
STEERING KNUCKLE ASSY (RIGHT)
1S3-23502-01-00
Unavailable
30
WASHER (25G)
90209-10229-00
Unavailable
31
NUT, CASTLE
90171-10001-00
Unavailable
32
PIN, COTTER
91490-20025-00
Unavailable
33
BOLT, WASHER BASED
90105-10034-00
Unavailable
34
BOLT, WASHER BASED(3GG)
90105-10651-00
Unavailable
35
WASHER (7A9)
90201-100F7-00
Unavailable
36
WASHER (7A9)
90201-100F7-00
Unavailable
37
NUT, SELFLOCKING (533 FRAME)
90185-10060-00
Unavailable
38
NUT, SELFLOCKING (533 FRAME)
90185-10060-00
Unavailable
39
NUT, CASTLE
90171-10001-00
Unavailable
40
WASHER (25G)
90209-10229-00
Unavailable
41
PIN, COTTER
91490-20025-00
Unavailable
42
SHOCK ABSORBER ASSY
5TG-23350-00-00
Unavailable
42
SHOCK ABSORBER ASSY
5TG-23350-30-00
Unavailable
43
BOLT, WASHER BASED(59V)
90105-10388-00
Unavailable
44
NUT, SELFLOCKING (533 FRAME)
90185-10060-00
Unavailable
45
WASHER, PLATE(47X)
90201-101J1-00
Unavailable
46
HOLDER, BRAKE HOSE 1
5TG-25875-00-00
Unavailable
47
HOLDER, BRAKE HOSE 2
5TG-25876-00-00
Unavailable
48
BOLT(4EW)
90109-067F4-00
Unavailable
49
FRONT UPPER ARM COMP. (RIGHT)
5TG-23550-02-00
Unavailable
50
FRONT UPPER ARM COMP. (LEFT)
5TG-23540-02-00
Unavailable
