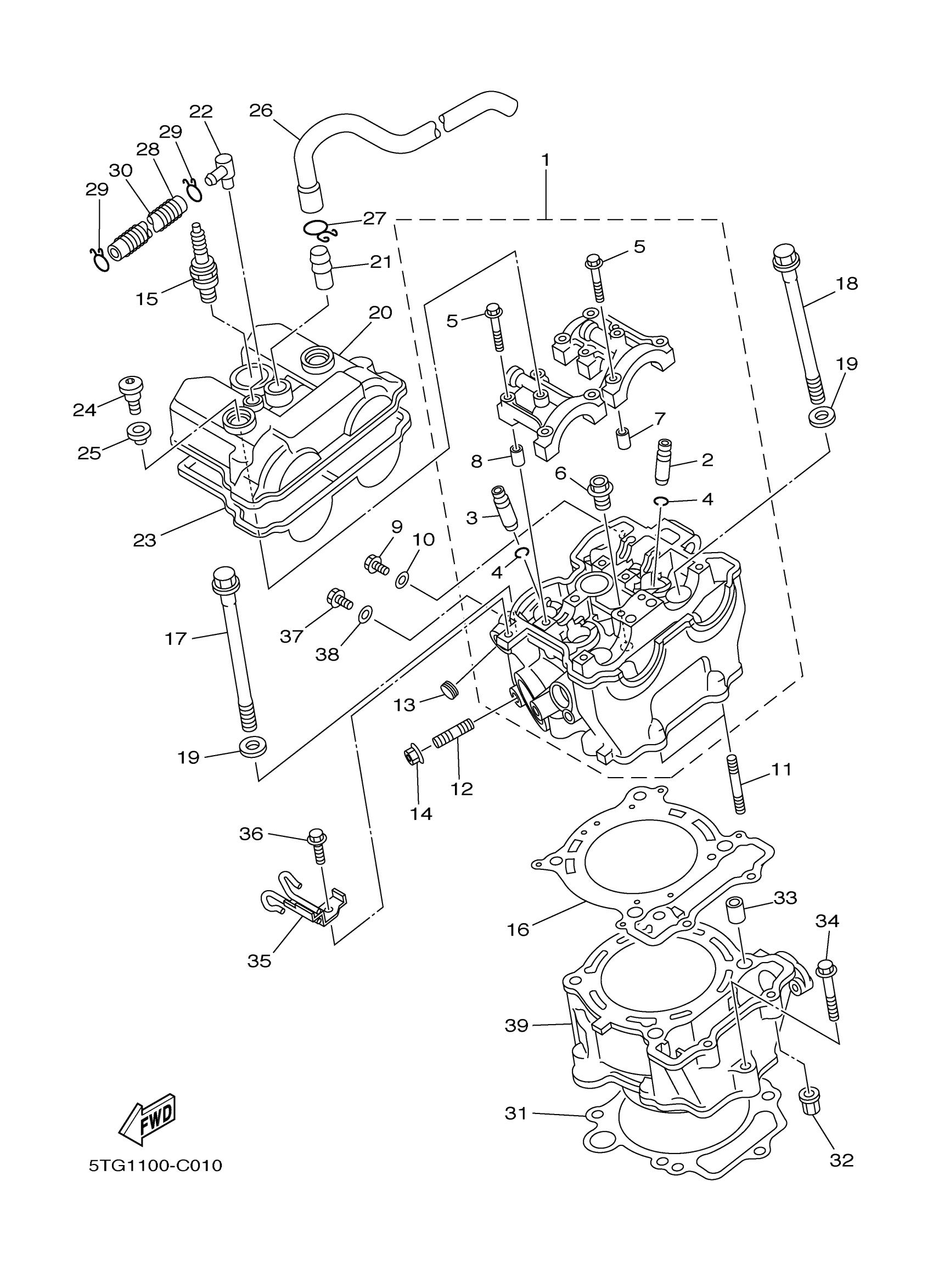

Yamaha YFZ450S (YFZ450) 5TG1 2004 CYLINDER Diagram
#
1
CYLINDER HEAD ASSY
5TA-11102-10-00
Unavailable
6
PLUG, STRAIGHT SCREW(1HX)
90340-12112-00
Unavailable
10
GASKET 256113960000
90430-06014-00
Unavailable
15
CR8E NGK SPLUG 4PK
CR8-E0000-00-00
Unavailable
16
GASKET, CYLINDER HEAD 1
5TA-11181-00-00
Unavailable
17
BOLT, WASHER BASED
90105-104A7-00
Unavailable
18
BOLT, WASHER BASED
90105-106A3-00
Unavailable
19
WASHER, PLATE
90201-10025-00
Unavailable
20
COVER, CYLINDER HEAD 1
5TA-11191-10-00
Unavailable
21
PIPE, BREATHER 2
371-11167-01-00
Unavailable
22
PIPE, BREATHER 2
5D3-11167-00-00
Unavailable
23
GASKET, HEAD COVER 1
5TA-11193-00-00
Unavailable
24
BOLT(4BP)
90109-066F0-00
Unavailable
25
RUBBER, MOUNT 1
5VY-1111G-00-00
Unavailable
26
PIPE, BREATHER 1
5TG-11166-00-00
Unavailable
27
CLIP (371)
90467-14015-00
Unavailable
28
HOSE (L370)
90445-112E1-00
Unavailable
29
CLIP(1JH)
90467-11106-00
Unavailable
30
SPRING, COMPRESSION (27Y)
90501-08728-00
Unavailable
31
GASKET, CYLINDER
5TA-11351-00-00
Unavailable
32
NUT (1AE)
90179-06500-00
Unavailable
33
PIN, DOWEL(4XL)
93612-16254-00
Unavailable
34
BOLT, SMALL FLANGE
95027-06035-00
Unavailable
35
HOLDER
5D3-11395-00-00
Unavailable
36
BOLT, FLANGE
95817-06014-00
Unavailable
37
BOLT (583 TACHOMETER)
90109-06418-00
Unavailable
38
GASKET 256113960000
90430-06014-00
Unavailable
39
CYLINDER 1
5TA-11311-12-00
Unavailable
39
CYLINDER 1
5TA-11311-12-00
Unavailable
