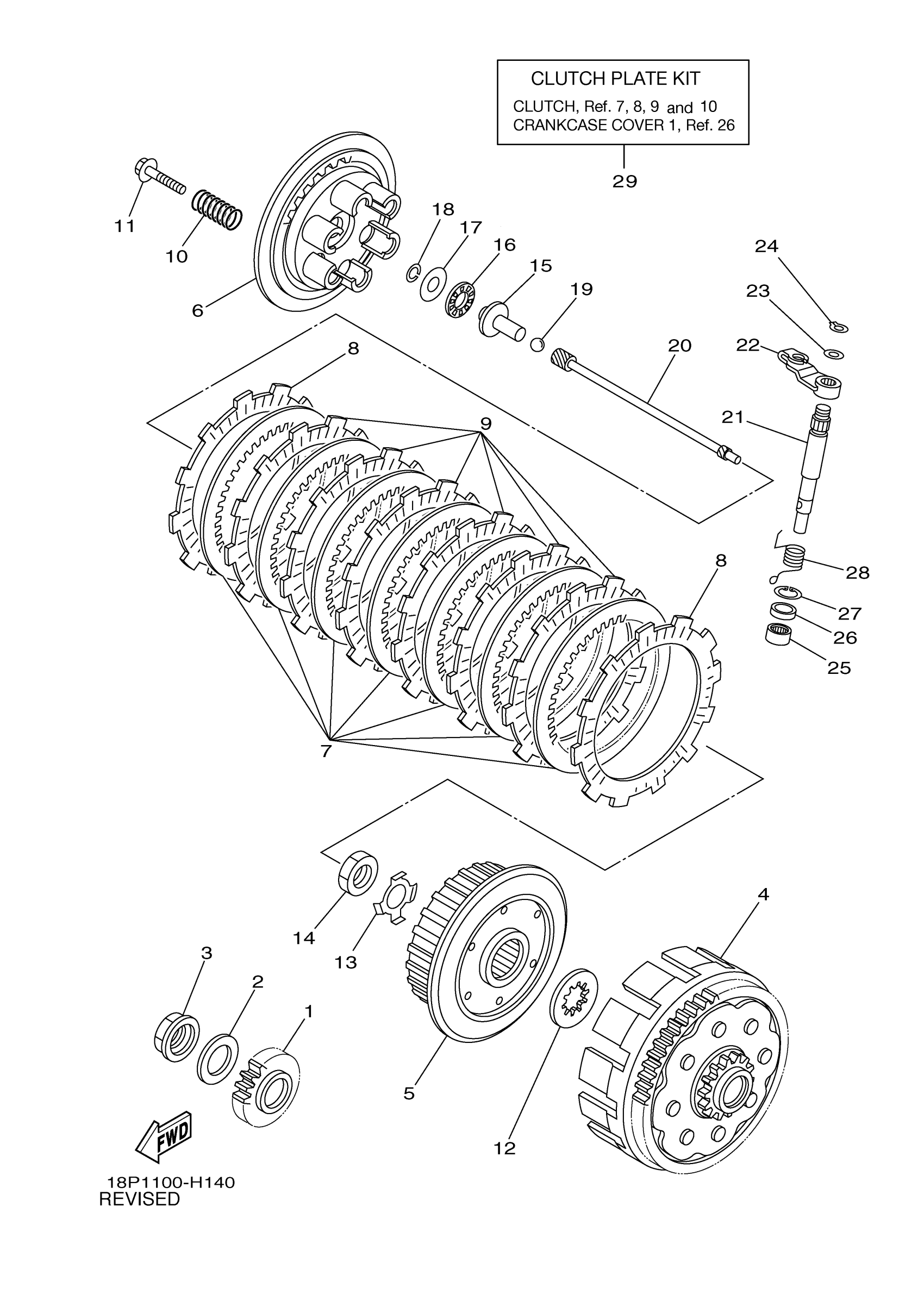

Yamaha YFZ450RZL (YFZ450R) 18P7 2010 CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVE

2S2-16111-60-00

$147.99

2

WASHER, CONICAL SPRING(83R)

90208-25045-00

$15.99

3

NUT

90179-20009-00

$20.99

4

PRIMARY DRIVEN GEAR COMP.

18P-16150-00-00

$485.99

5

BOSS, CLUTCH

5TA-16371-20-00

$139.99

6

PLATE, PRESSURE 1

2S2-16351-01-00

$91.99

7

PLATE, CLUTCH 2

4X7-16325-10-00

$16.49

8

PLATE, FRICTION

5TA-16321-00-00

$25.99

9

PLATE, FRICTION

5VY-16321-00-00

$31.99

10

SPRING, COMPRESSION(1UY)

90501-231E9-00

$11.49

11

SCREW, WITH WASHER (583)

90159-06010-00

$8.49

12

PLATE, THRUST 1

5XD-16154-00-00

$15.49

13

WASHER, LOCK

90215-20005-00

$8.49

14

NUT (34L)

90170-20327-00

$18.99

15

ROD, PUSH 1

5TG-16356-00-00

$43.99

16

BEARING, THRUST (713)

93340-21505-00

Unavailable

17

WASHER, PLATE(1RE)

90201-125L6-00

Unavailable

18

CIRCLIP (4G0)

93440-10085-00

Unavailable

19

BALL (1M1)

93515-32029-00

Unavailable

20

ROD, PUSH 2

18P-16357-01-00

Unavailable

21

AXLE, PUSH LEVER

18P-16382-00-00

Unavailable

22

LEVER, PUSH

18P-16342-00-00

Unavailable

23

WASHER, PLATE

90201-10032-00

Unavailable

24

CIRCLIP(10W)

99009-10400-00

Unavailable

25

BEARING

93317-11287-00

Unavailable

26

OIL SEAL (4G0)

93102-12224-00

Unavailable

27

CIRCLIP(1EV)

99009-20500-00

Unavailable

28

SPRING, TORSION

90508-16061-00

Unavailable

29

CLUTCH PLATE KIT

18P-W001G-00-00

Unavailable
