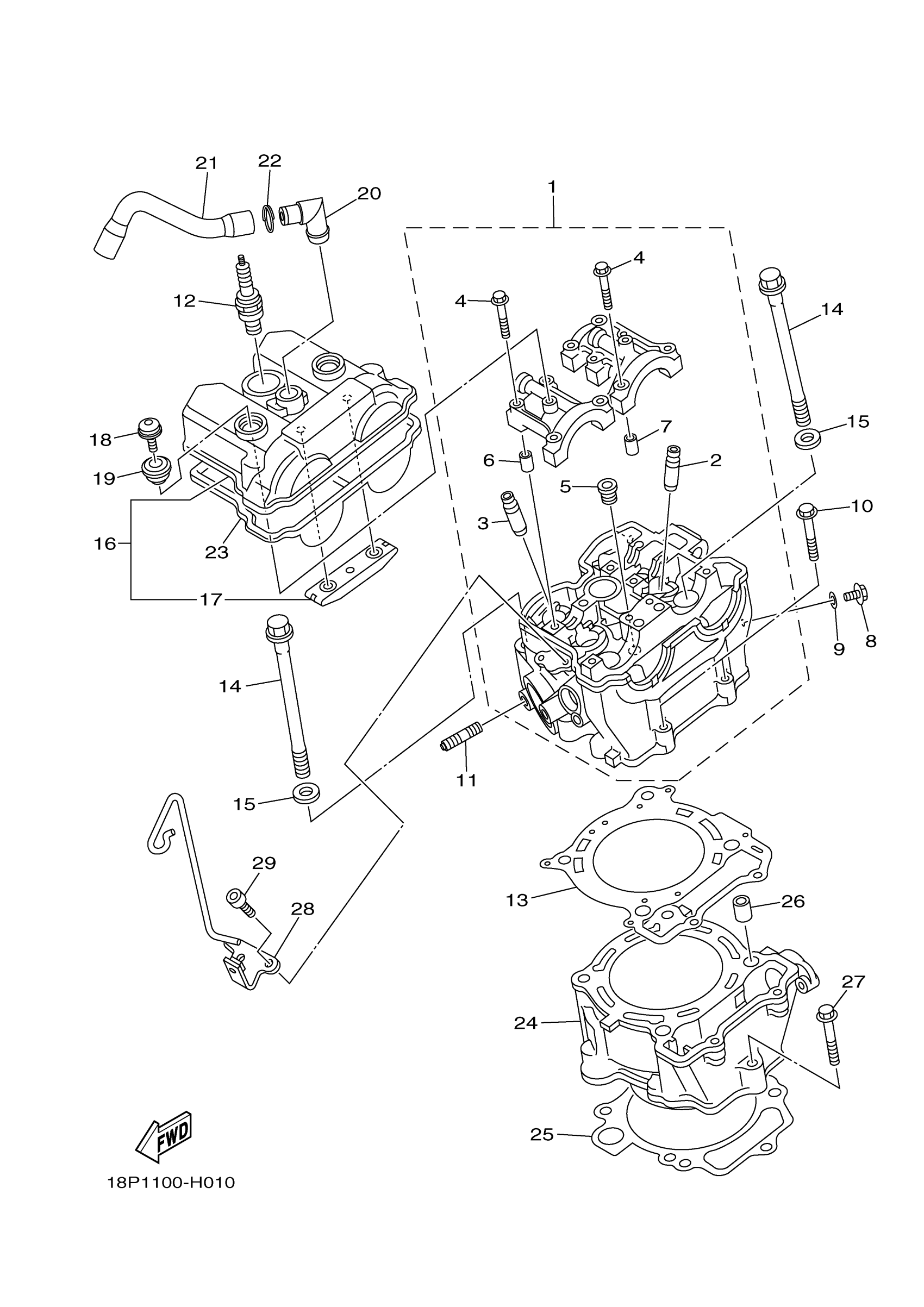

Yamaha YFZ450RYW (YFZ450R) 18P10 2009 CYLINDER Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

18P-11101-19-00

$939.99

2

GUIDE, INTAKE VALVE

5TA-11133-10-00

$53.99

3

GUIDE, EXHAUST VALVE

5TA-11134-10-00

$43.99

4

BOLT, WASHER BASED

90105-06027-00

$7.49

5

PLUG, STRAIGHT SCREW

90340-12007-00

$8.49

6

PIN, DOWEL(3XW)

91808-16023-00

$8.49

7

PIN, DOWEL(3XW)

91808-16023-00

$8.49

8

BOLT, FLANGE

95022-06010-00

$5.60

9

GASKET 256113960000

90430-06014-00

Unavailable

10

BOLT, FLANGE

95022-06035-00

$3.55

11

BOLT, STUD

90116-08022-00

$7.49

12

CR8E NGK SPLUG 4PK

CR8-E0000-00-00

Unavailable

13

GASKET, CYLINDER HEAD 1

2S2-11181-00-00

$53.99

14

BOLT, FLANGE

90105-10163-00

$10.49

15

WASHER, PLATE

90201-10025-00

$7.49

16

COVER, CYLINDER HE

2S2-11190-21-00

Unavailable

17

GUIDE, STOPPER 2

5BE-12241-01-00

Unavailable

18

BOLT

90109-06203-00

Unavailable

19

RUBBER, MOUNT 1

5VY-1111G-00-00

Unavailable

20

PIPE, BREATHER 2

18P-11167-00-00

Unavailable

21

PIPE, BREATHER 1

18P-11166-00-00

Unavailable

22

CLIP

90468-100A1-00

Unavailable

23

GASKET, HEAD COVER 1

2S2-11193-00-00

Unavailable

24

CYLINDER 1

2S2-11311-11-00

Unavailable

25

GASKET, CYLINDER

2S2-11351-00-00

Unavailable

26

PIN, DOWEL(4XL)

93612-16254-00

Unavailable

27

BOLT, FLANGE

95022-06035-00

$3.55

28

HOLDER

18P-11395-00-00

Unavailable

29

BOLT (33M)

91312-06014-00

Unavailable
