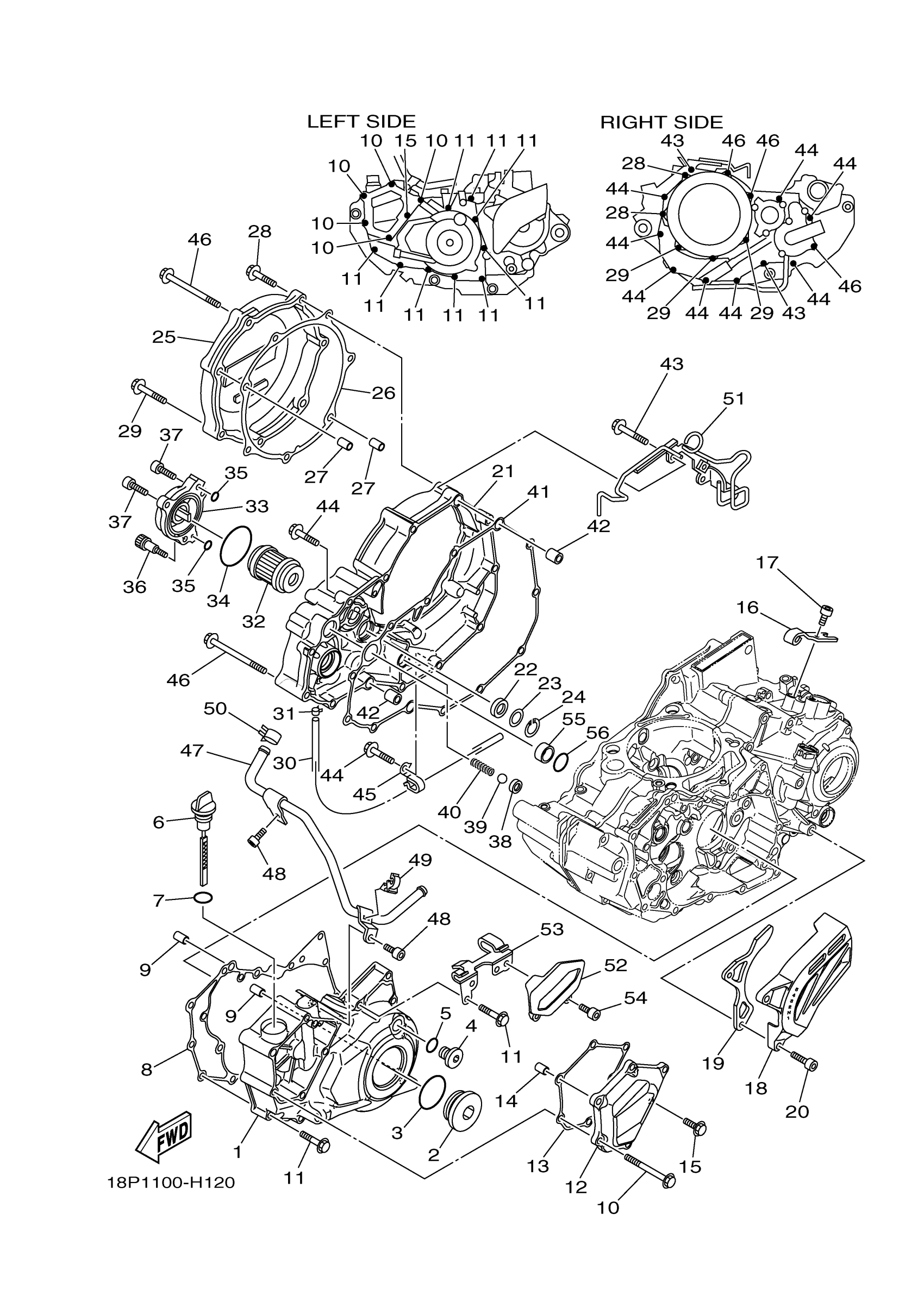

Yamaha YFZ450RYW (YFZ450R) 18P10 2009 CRANKCASE COVER 1 Diagram
#
12
COVER 2
18P-15423-00-00
Unavailable
14
PIN, DOWEL
99530-08012-00
Unavailable
16
HOLDER, CLUTCH CABLE
5TA-15441-01-00
Unavailable
17
BOLT(3MA)
91312-06016-00
Unavailable
18
COVER, CRANKCASE 2
18P-15421-00-00
Unavailable
19
GUIDE, CHAIN
18P-17466-00-00
Unavailable
20
BOLT,SOCKET
91317-06025-00
Unavailable
21
COVER, CRANKCASE 3
18P-15431-00-00
Unavailable
22
OIL SEAL(4GY)
93101-14164-00
Unavailable
23
WASHER (566)
90201-15701-00
Unavailable
24
CIRCLIP
99009-22500-00
Unavailable
25
COVER, GENERATOR
5TG-15415-00-00
Unavailable
26
GASKET
18P-15453-00-00
Unavailable
28
BOLT, FLANGE
95022-06030-00
Unavailable
29
BOLT, FLANGE
95022-06040-00
Unavailable
30
HOSE (L1050)
90445-072G8-00
Unavailable
31
CLIP
90467-070A0-00
Unavailable
32
ELEMENT ASSY, OIL CLEANER
5D3-13440-09-00
Unavailable
33
COVER, OIL ELEMENT
5BE-13447-10-00
Unavailable
34
O-RING(52H)
93210-47675-00
Unavailable
35
O-RING (583 OIL DRAIN BOLT)
93210-07135-00
Unavailable
36
BOLT, HEXAGON SOCKET HEAD
90110-06228-00
Unavailable
37
BOLT,SOCKET HEAD
91314-06020-00
Unavailable
38
SEAT, CHECK BALL
583-13113-00-00
Unavailable
39
BALL
93503-08007-00
Unavailable
40
SPRING, COMPRESSION(1VJ)
90501-043E0-00
Unavailable
41
GASKET, CRANKCASE COVER 3
18P-15462-00-00
Unavailable
42
PIN, DOWEL(3BM)
99530-10120-00
Unavailable
43
BOLT, FLANGE
95022-06040-00
Unavailable
44
BOLT, FLANGE
95022-06030-00
Unavailable
45
CLAMP(4MX)
90465-06376-00
Unavailable
46
BOLT, FLANGE
95022-06080-00
Unavailable
47
PIPE, BREATHER 2
18P-15393-01-00
Unavailable
48
BOLT(3MA)
91312-06016-00
Unavailable
49
CLAMP (26H)
90464-08051-00
Unavailable
50
CLIP
90467-140A6-00
Unavailable
51
CLAMP 2
18P-15484-00-00
Unavailable
52
COVER
18P-15413-00-00
Unavailable
53
STAY,CRANKCASECOVER 1
18P-1541A-00-00
Unavailable
54
BOLT(3MA)
91312-06016-00
Unavailable
55
PIPE, WATER
5BE-12564-00-00
Unavailable
56
O-RING(M01)
93210-19758-00
Unavailable
