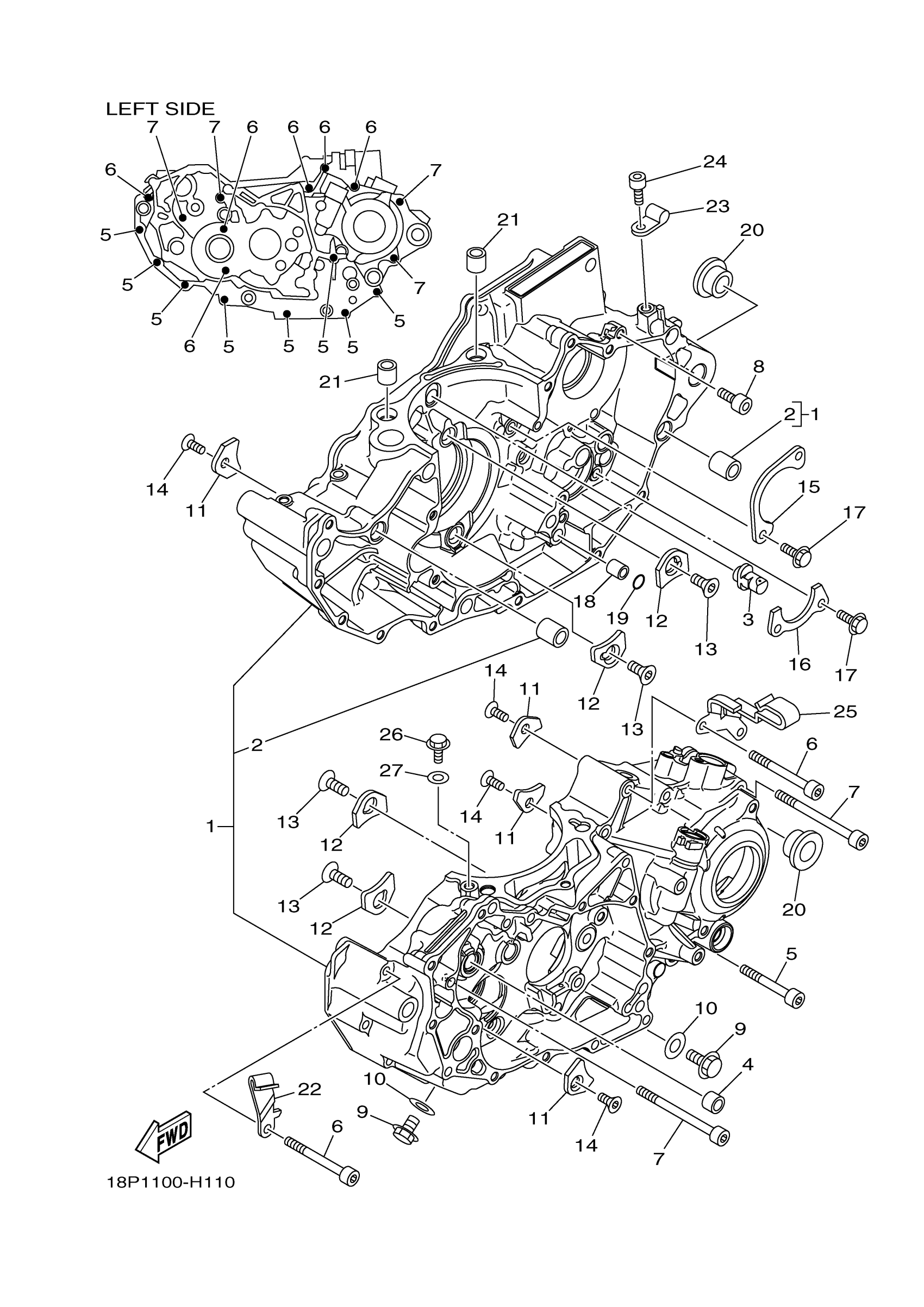

Yamaha YFZ450RSSE (YFZ450R SPECIAL EDITION) 1TD8 2014 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

18P-15100-00-00

$932.99

2

PIN, DOWEL

99530-14016-00

$3.80

3

NOZZLE 3

2S2-15155-10-00

$44.99

4

BUSH, SOLID

90380-10002-00

$3.23

5

BOLT

91312-06050-00

$4.72

6

BOLT

91312-06060-00

$10.49

7

BOLT, SOCKET

91314-06080-00

$3.88

8

BOLT(3MA)

91312-06016-00

$5.60

9

BOLT, FLANGE

95022-10016-00

$8.49

10

GASKET (1KH,1.0T)

90430-10148-00

$5.60

11

PLATE, BEARING COVER

4JT-15381-01-00

$13.49

12

PLATE, BEARING COVER

18P-15383-00-00

$7.99

13

SCREW, COUNTERSUNK

90151-08003-00

$7.49

14

SCREW, COUNTERSUNK

90151-06052-00

$8.49

15

PLATE, BEARING COVER

2S2-15388-00-00

$6.99

16

PLATE, STOPPER 2

2S2-18562-00-00

Unavailable

17

BOLT, FLANGE

95022-06012-00

Unavailable

18

PIN, DOWEL(3VD)

99530-10114-00

Unavailable

19

O-RING (371)

93210-10197-00

Unavailable

20

COLLAR(1LV)

90387-164N2-00

Unavailable

21

PIN, DOWEL

99530-14016-00

$3.80

22

CLAMP

90462-10056-00

Unavailable

23

CLAMP

90461-06001-00

Unavailable

24

BOLT(3MA)

91312-06016-00

$5.60

25

HOLDER

18P-15378-00-00

Unavailable

26

BOLT, FLANGE

95022-06012-00

Unavailable

27

GASKET 256113960000

90430-06014-00

Unavailable
