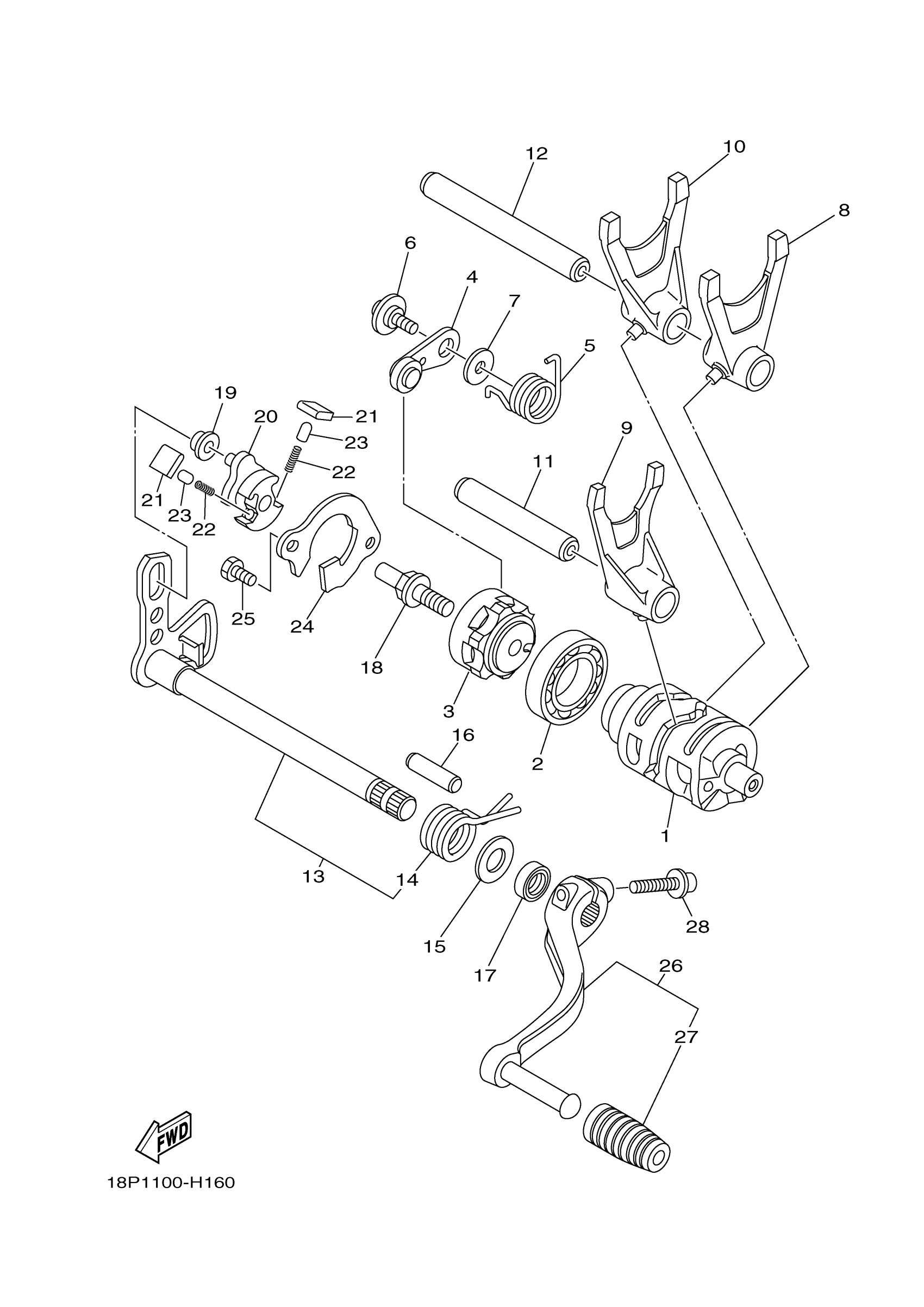

Yamaha YFZ450RSEZ (YFZ450R SPECIAL EDITION) 18PA 2010 SHIFT CAM FORK Diagram

#

Description
Price

1

CAM, SHIFT

18P-18541-00-00

$134.99

2

BEARING

93306-90509-00

$38.99

3

SEGMENT

2S2-18185-00-00

$65.99

4

STOPPER LEVER ASSY

2S2-18140-10-00

$22.99

5

SPRING, TORSION

90508-26021-00

$5.60

6

BOLT

90109-06201-00

$5.60

7

WASHER, PLATE

90201-06013-00

Unavailable

8

FORK, SHIFT 1

18P-18511-00-00

$93.99

9

FORK, SHIFT 2

18P-18512-00-00

$93.99

10

FORK, SHIFT 3

18P-18513-00-00

$94.99

11

BAR, SHIFT FORK GUIDE 1

18P-18531-00-00

$32.99

12

BAR, SHIFT FORK GUIDE 1

1WG-18531-01-00

$27.99

13

SHIFT SHAFT ASSY

18P-18101-00-00

$72.99

14

SPRING, TORSION

90508-32136-00

$9.49

15

WASHER, PLATE (5N6)

90201-127E1-00

$4.29

16

PIN, DOWEL

93608-30002-00

Unavailable

17

OIL SEAL (4G0)

93102-12224-00

Unavailable

18

PIN, SHIFT

3XJ-18173-10-00

Unavailable

19

ROLLER, SHIFT LEVER

3XJ-18178-00-00

Unavailable

20

LEVER, SHIFT 2

18P-18122-00-00

Unavailable

21

PAWL, SHIFTER

3XJ-18182-00-00

Unavailable

22

SPRING, COMPRESSION(3XJ)

90501-052G5-00

Unavailable

23

PIN, PAWL

3XJ-18184-00-00

Unavailable

24

GUIDE, SHIFT

5BE-18172-00-00

Unavailable

25

BOLT

90101-06042-00

Unavailable

26

SHIFT PEDAL ASSY

18P-18110-00-00

Unavailable

27

COVER, SHIFT PEDAL

5YT-18113-00-00

Unavailable

28

BOLT

90109-06031-00

Unavailable
