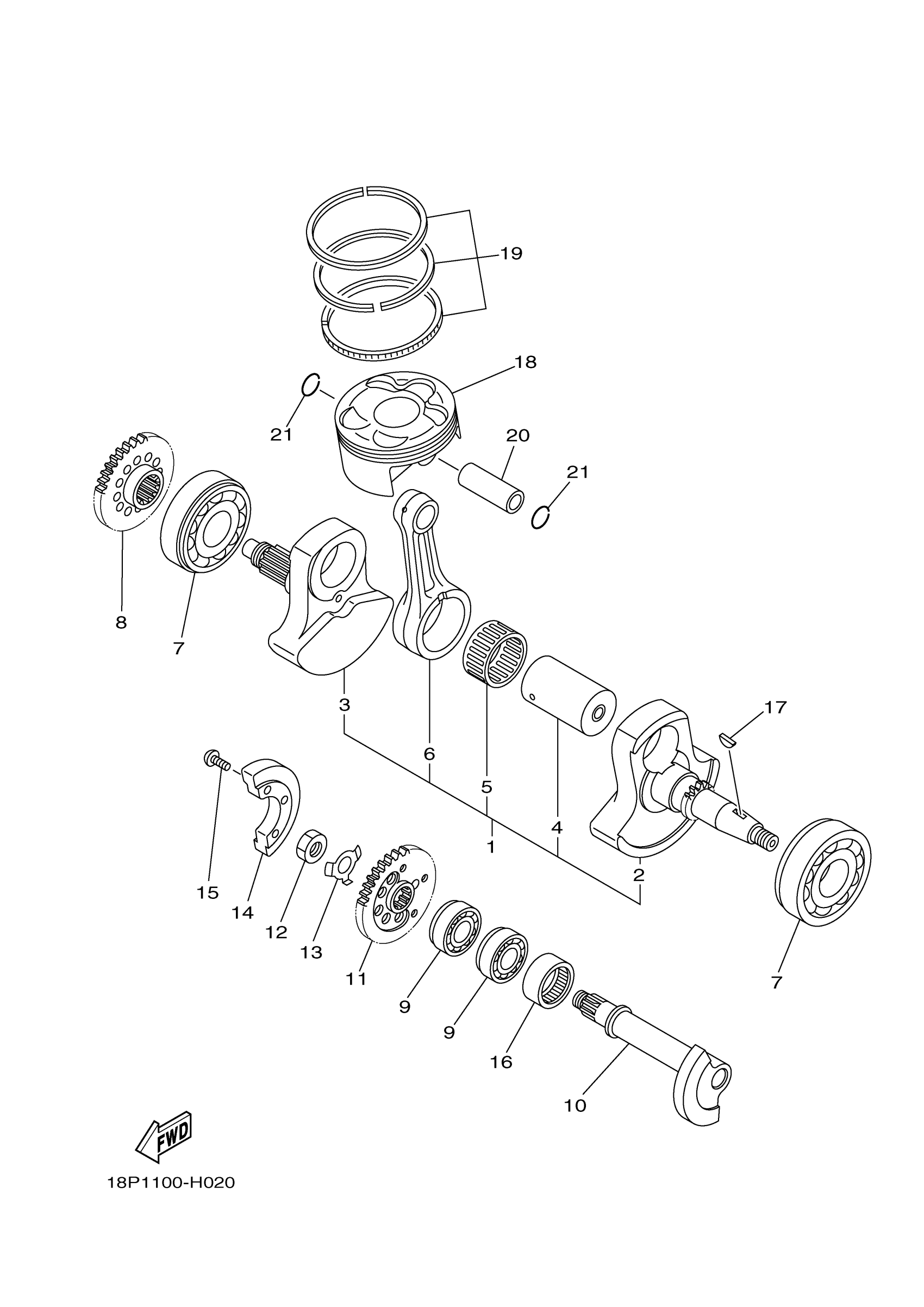

Yamaha YFZ450RSEZ (YFZ450R SPECIAL EDITION) 18PA 2010 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY

18P-11400-05-00

$519.99

2

CRANK 1

18P-11412-01-00

$278.99

3

CRANK 2

18P-11422-01-00

$291.99

4

PIN, CRANK 1

18P-11681-01-00

$88.99

5

BEARING

93310-73609-00

$83.99

6

ROD, CONNECTING

18P-11651-00-00

$113.99

7

BEARING

93306-30644-00

$72.99

8

GEAR, DRIVE

18P-11536-00-00

$132.99

9

BEARING

93306-20353-00

$36.99

10

SHAFT 1

18P-11455-00-00

$354.99

11

GEAR, BALANCE WEIGHT

18P-11531-00-00

$192.99

12

NUT, HEXAGON

90170-14171-00

$9.49

13

WASHER, LOCK(4GA)

90215-14287-00

$5.60

14

WEIGHT 1

18P-11454-00-00

$68.99

15

SCREW

90149-06068-00

$4.35

16

BEARING, CYLINDRICAL(3YL)

93311-62574-00

Unavailable

17

KEY, WOODRUFF

90280-03006-00

Unavailable

18

PISTON (STD)

5TG-11631-12-00

Unavailable

19

PISTON RING SET (STD)

5TG-11603-00-00

Unavailable

20

PIN, PISTON

5TG-11633-10-00

Unavailable

21

CIRCLIP 341116340000

93450-22027-00

Unavailable
