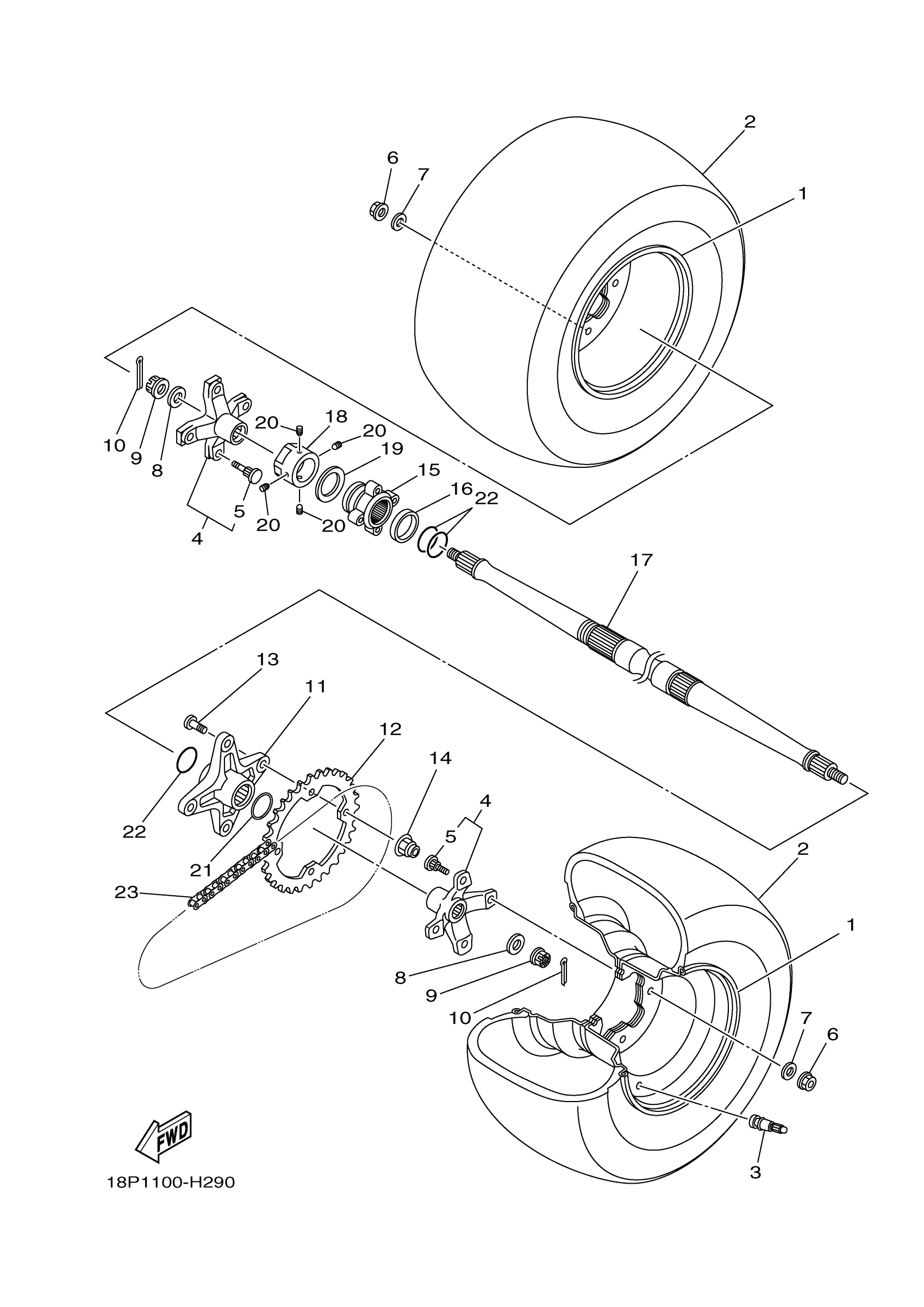

Yamaha YFZ450RSEY 18P4 2009 REAR WHEEL Diagram

#

Description
Price

1

WHEEL,REAR

5LP-F5390-29-00

Unavailable

2

AT20X10R9 KT357 TL(N) DUNLOP

94110-09027-00

Unavailable

3

VALVE, RIM(2GH)

93900-00030-00

$16.99

4

COLLAR, WHEEL

18P-25383-00-00

$171.99

5

BOLT, SERRATION

90114-10013-00

$7.49

6

NUT, FLANGE(3BM)

95704-10500-00

$4.29

7

958-69527-00 WASHER, PLAIN

92990-10200-00

$3.72

8

WASHER, PLATE

90201-16023-00

$8.49

9

NUT, CASTLE

90171-16002-00

$20.99

10

PIN, COTTER

90252-03001-00

$1.96

11

COLLAR, SPROCKET AXLE

18P-25386-00-00

$171.99

12

SPROCKET, DRIVEN (38T)

5TG-25438-10-00

$43.99

13

BOLT

90109-10013-00

$7.49

14

NUT, SELF-LOCKING

90185-10011-00

$5.60

15

BRACKET, DISC

18P-25712-00-00

$161.99

16

COLLAR

90387-40001-00

Unavailable

17

AXLE, WHEEL

BKD-F5381-00-00

Unavailable

18

NUT

90179-38001-00

Unavailable

19

WASHER, CONICAL SPRING

90208-39001-00

Unavailable

20

BOLT, SET (8K2)

90113-06039-00

Unavailable

21

CIRCLIP

18P-25415-00-00

Unavailable

22

O-RING

93210-37003-00

Unavailable

23

CHAIN

94582-13098-00

Unavailable
