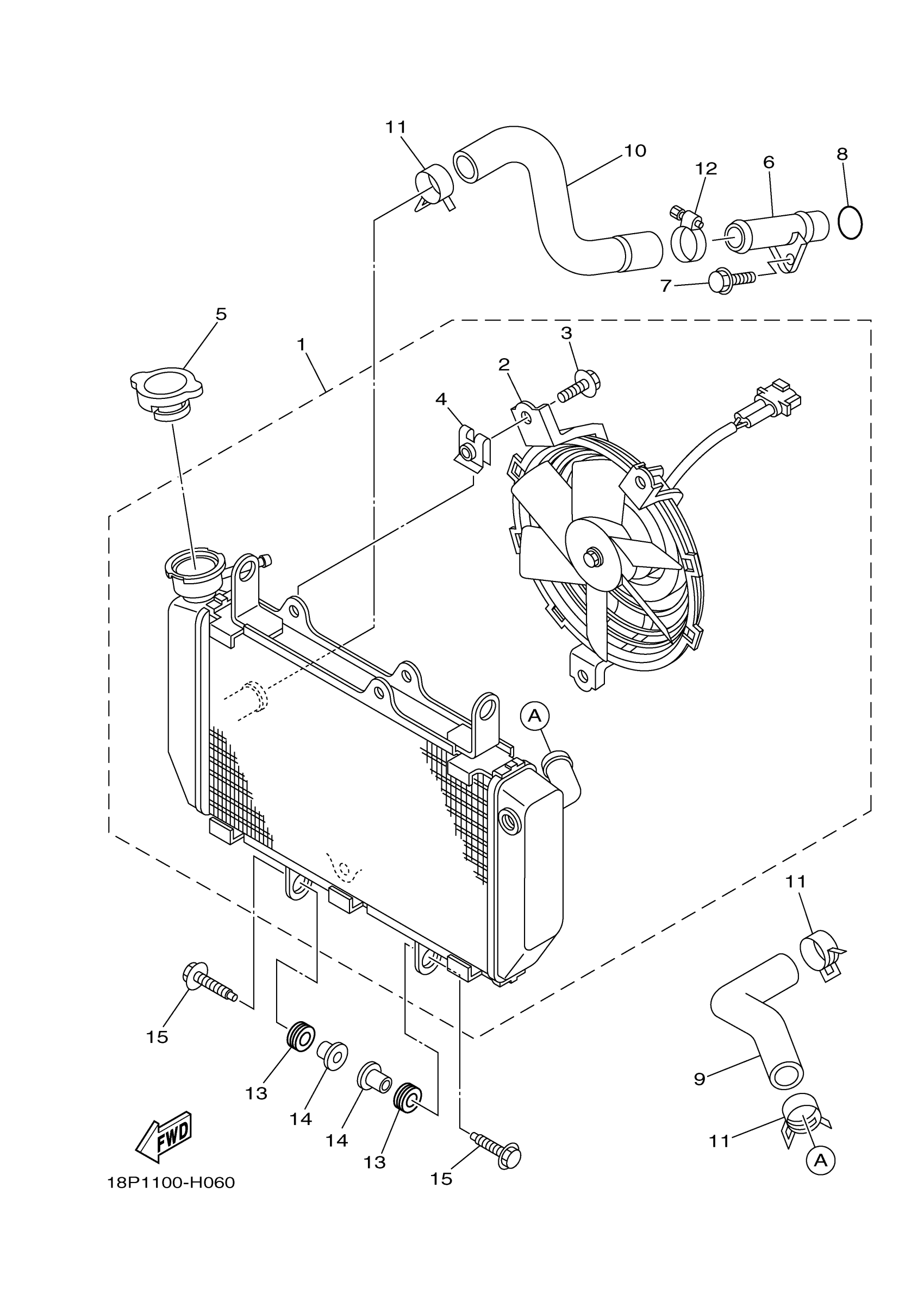

Yamaha YFZ450RSEY 18P4 2009 RADIATOR HOSE Diagram

#

Description
Price

1

RADIATOR ASSY

18P-1240A-00-00

Unavailable

2

BLOWER ASSY

18P-12405-00-00

Unavailable

3

BOLT, BLOWER HOLDING

2S3-12675-00-00

$6.99

4

NUT 1

18P-12671-00-00

$7.99

5

CAP, RADIATOR

5SL-12462-01-00

$29.99

6

PIPE 1

5TG-12481-00-00

$27.99

7

BOLT, FLANGE

95022-06012-00

$3.29

8

O-RING (5U8)

93210-16500-00

$7.49

9

HOSE 1

18P-12576-00-00

$24.99

10

HOSE 2

18P-12577-00-00

$27.99

11

CLIP (10V)

90467-23067-00

$7.49

12

HOSE CLAMP ASSY

90450-32015-00

$17.99

13

GROMMET (1E6)

90480-15058-00

$8.49

14

COLLAR 437216330000

90387-07391-00

Unavailable

15

BOLT, WITH WASHER

90119-06181-00

$8.49
