Description

Price

1

FUEL TANK COMP.

18P-24110-00-00

Unavailable

2

CAP ASSY

5KM-24610-00-00

$61.99

3

GROMMET

90480-18004-00

$5.60

4

COLLAR (29U)

90387-066H4-00

$8.49

5

WASHER, PLATE

90201-06033-00

$2.97

6

BOLT, BUTTON HEAD

92012-06040-00

$3.28

7

GROMMET (4V1)

90480-18290-00

$8.49

8

WASHER, PLATE

90201-06033-00

$2.97

9

COLLAR (36R)

90387-066J1-00

$8.49

10

BOLT, FLANGE

95812-06030-00

$8.49

11

HOSE (L340)

90445-08684-00

$4.29

12

DAMPER, PLATE 1

18P-2414H-00-00

Unavailable

13

HOSE 1

18P-2247A-00-00

$12.99

14

DAMPER, PLATE

90520-08001-00

$8.49

15

FUEL PUMP COMP.

18P-13907-12-00

$418.99

16

BRACKET, FUEL PUMP

18P-24491-00-00

Unavailable

17

O-RING

1S3-24486-00-00

Unavailable

18

NUT (J17)

95380-06800-00

Unavailable

19

CASE, CAP

18P-2464V-01-00

Unavailable

20

CAP

18P-2467E-00-00

Unavailable

21

PIPE, FUEL 1

18P-13971-00-00

Unavailable

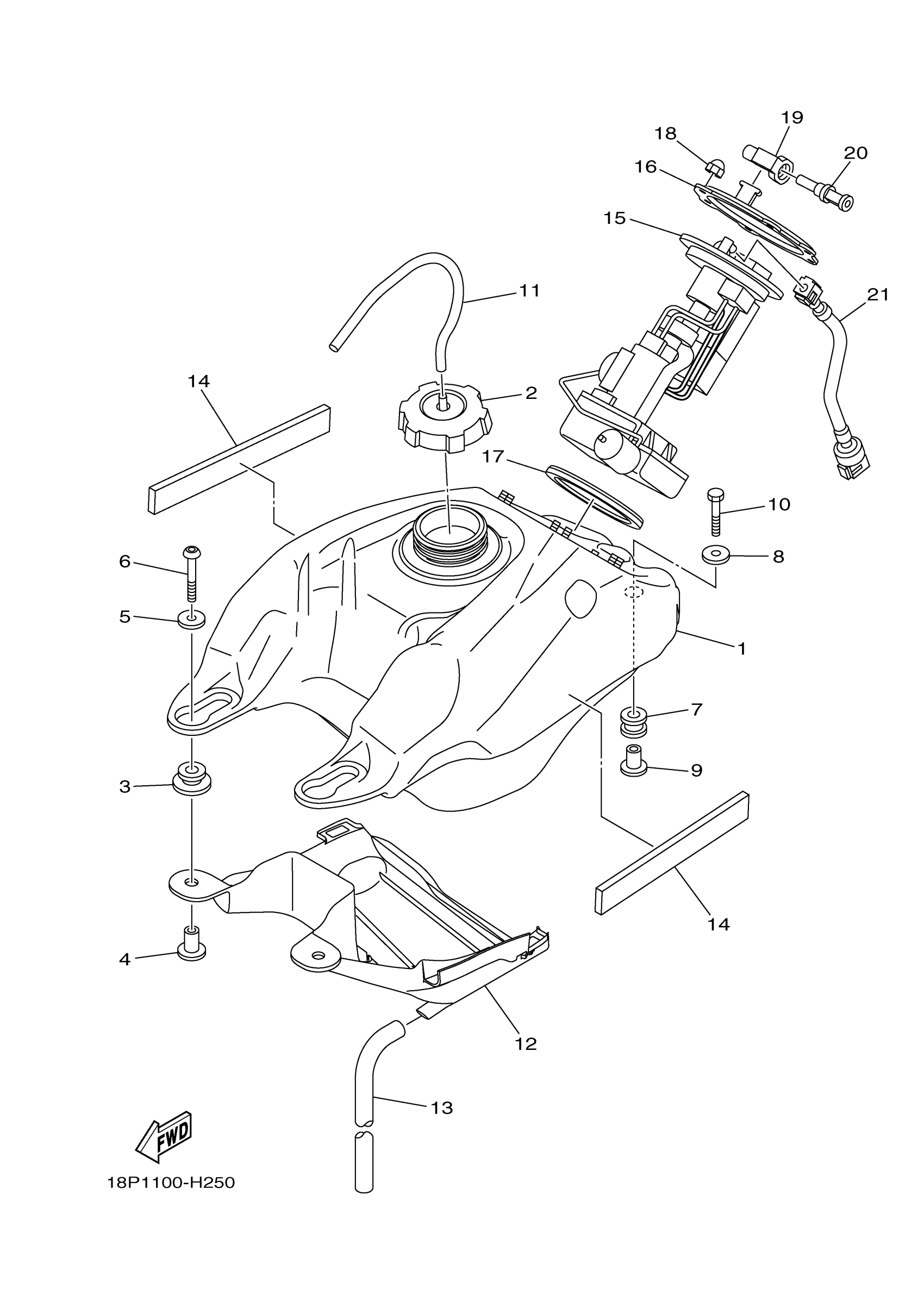

Yamaha YFZ450RSEY 18P4 2009 FUEL TANK Diagram

FUEL TANK COMP.

CAP ASSY

GROMMET

COLLAR (29U)

WASHER, PLATE

BOLT, BUTTON HEAD

GROMMET (4V1)

WASHER, PLATE

COLLAR (36R)

BOLT, FLANGE

HOSE (L340)

DAMPER, PLATE 1

HOSE 1

DAMPER, PLATE

FUEL PUMP COMP.

BRACKET, FUEL PUMP

O-RING

NUT (J17)

CASE, CAP

CAP

PIPE, FUEL 1
