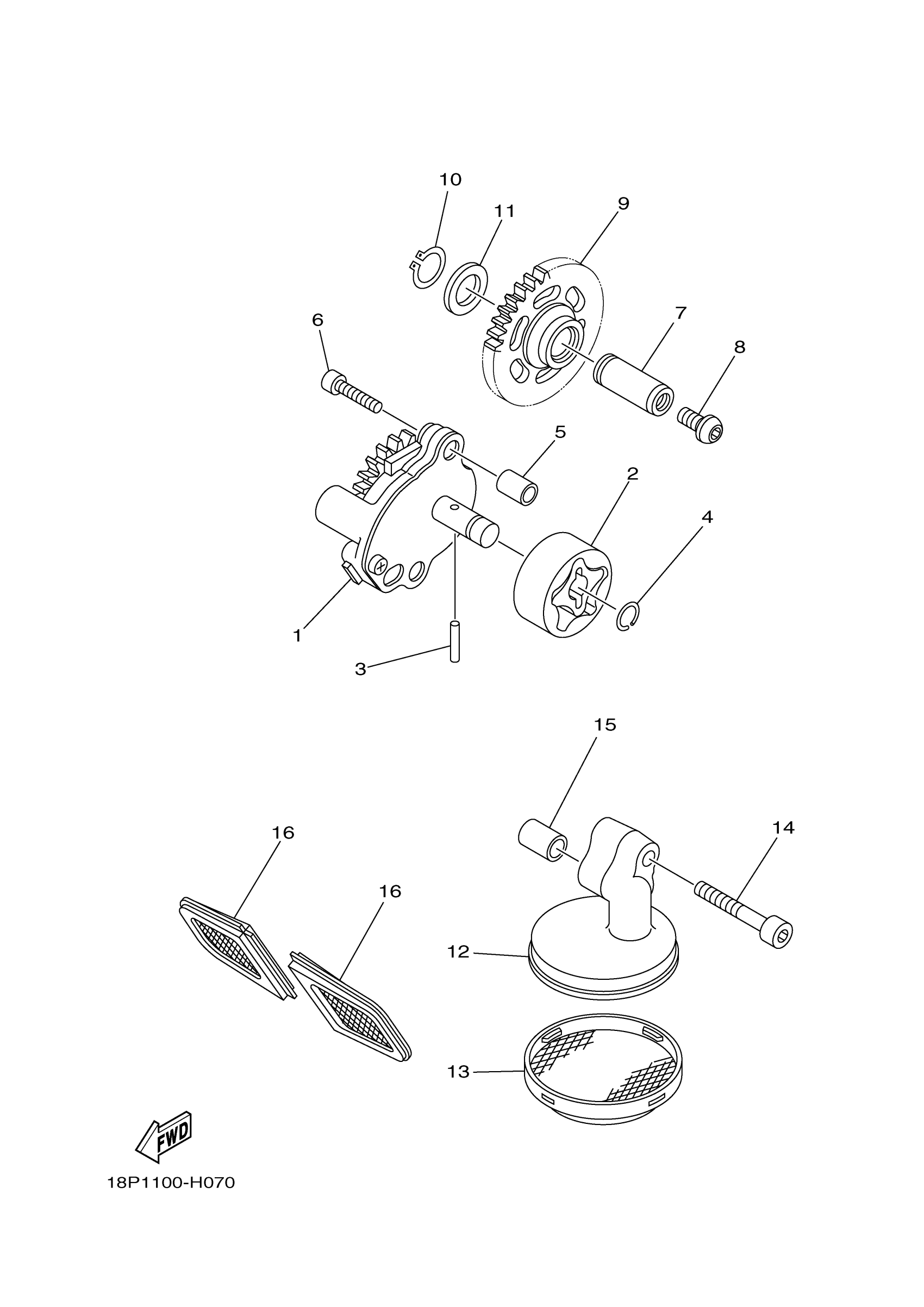

Yamaha YFZ450RSER (YFZ450R SPECIAL EDITION) 1TD5 2014 OIL PUMP Diagram

Description

Price

OIL PUMP ASSY

18P-13300-00-00

$201.99

ROTOR ASSY 2

5TA-13320-00-00

$48.99

PIN, DOWEL(1HX)

93603-16219-00

$8.49

CIRCLIP(1WG)

93440-10153-00

$2.39

PIN, DOWEL

99530-08012-00

Unavailable

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$5.60

SHAFT, IDLE GEAR

2S2-13342-00-00

$27.99

SCREW

90149-06068-00

$4.35

GEAR, OIL PUMP IDLE

18P-13341-00-00

$50.99

CIRCLIP(10Y)

99009-12400-00

$3.59

WASHER PLATE 164185720000

90201-12166-00

$9.49

HOUSING, STRAINER

18P-13412-01-00

$29.99

STRAINER, OIL

18P-13411-00-00

$18.49

BOLT(J17)

91312-06035-00

$3.28

PIN, DOWEL(3VD)

99530-10114-00

$2.55

STRAINER 2

18P-13421-00-00

Unavailable
