Description

Price

1

WHEEL COMP.

1S3-25180-11-YX

$324.99

2

TIRE (AT21X7R10 KT351 T/L(N))

94107-10025-00

Unavailable

3

VALVE, RIM(2GH)

93900-00030-00

$16.99

4

WHEEL COMP.

1S3-25180-11-YX

$324.99

5

TIRE (AT21X7R10 KT351 T/L(N))

94107-10025-00

Unavailable

6

VALVE, RIM(2GH)

93900-00030-00

$16.99

7

HUB, FRONT

1PE-F5111-00-00

$141.99

8

BOLT, SERRATION

90114-10006-00

$5.60

9

SPACER, BEARING

5LP-25117-00-00

$17.49

10

BEARING

93306-00446-00

$43.99

11

. BEARING

93306-20231-00

Unavailable

12

OIL SEAL(1UY)

93105-26026-00

$12.49

13

OIL SEAL (7H5)

93102-22216-00

$11.49

14

NUT, FLANGE(3BM)

95704-10500-00

$4.29

15

958-69527-00 WASHER, PLAIN

92990-10200-00

$3.72

16

COLLAR

90387-20005-00

Unavailable

17

WASHER, PLATE

90201-20022-00

Unavailable

18

COLLAR(1UY)

90387-150R1-00

Unavailable

19

WASHER PLATE 248181370000

90201-14220-00

Unavailable

20

NUT, CASTLE

90171-14002-00

Unavailable

21

PIN, COTTER

91401-30025-00

Unavailable

22

COVER, PLATE

1S3-25127-01-00

Unavailable

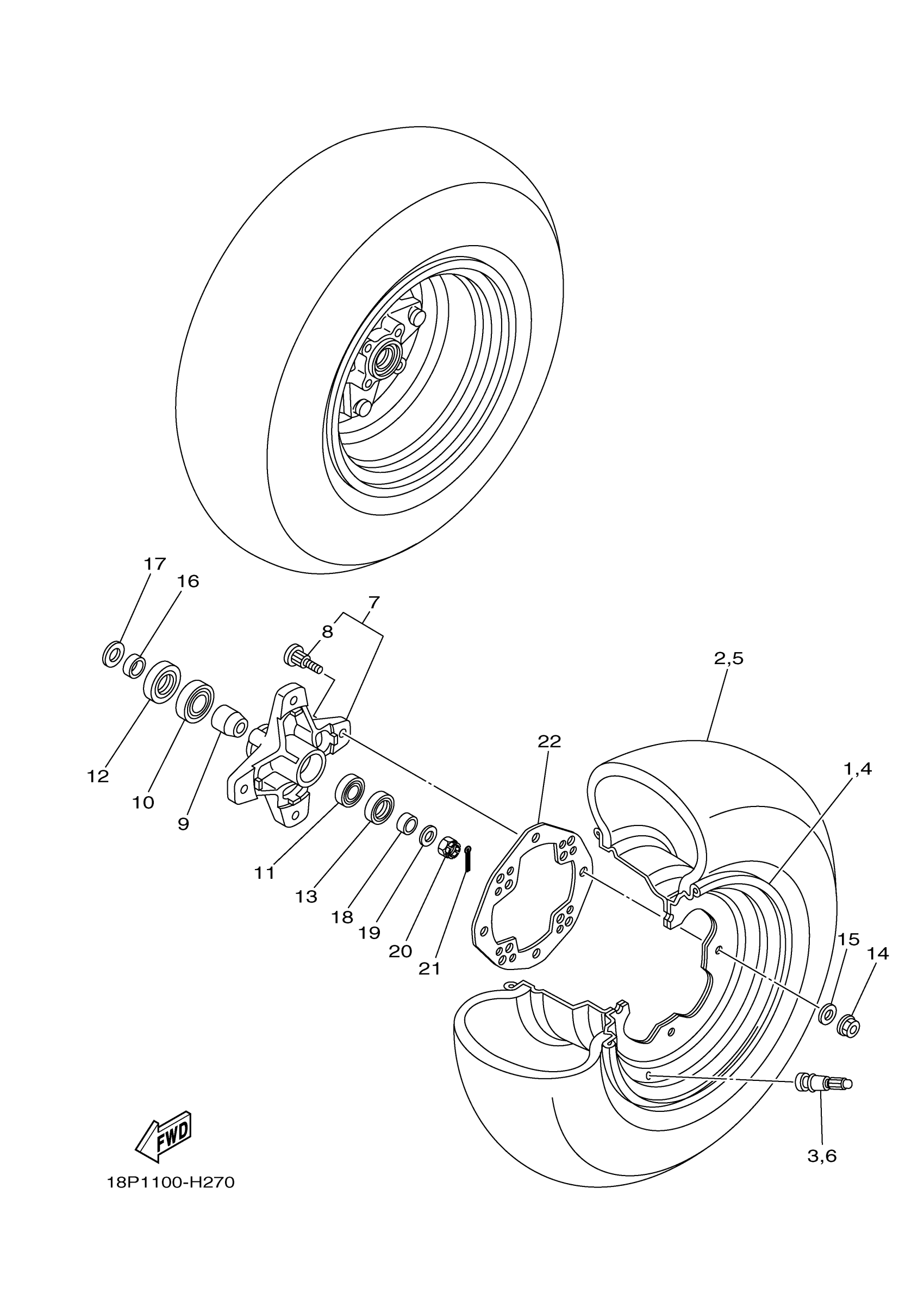

Yamaha YFZ450RSEA (YFZ450R SPECIAL EDITION) 18PG 2011 FRONT WHEEL Diagram

WHEEL COMP.

TIRE (AT21X7R10 KT351 T/L(N))

VALVE, RIM(2GH)

WHEEL COMP.

TIRE (AT21X7R10 KT351 T/L(N))

VALVE, RIM(2GH)

HUB, FRONT

BOLT, SERRATION

SPACER, BEARING

BEARING

. BEARING

OIL SEAL(1UY)

OIL SEAL (7H5)

NUT, FLANGE(3BM)

958-69527-00 WASHER, PLAIN

COLLAR

WASHER, PLATE

COLLAR(1UY)

WASHER PLATE 248181370000

NUT, CASTLE

PIN, COTTER

COVER, PLATE
