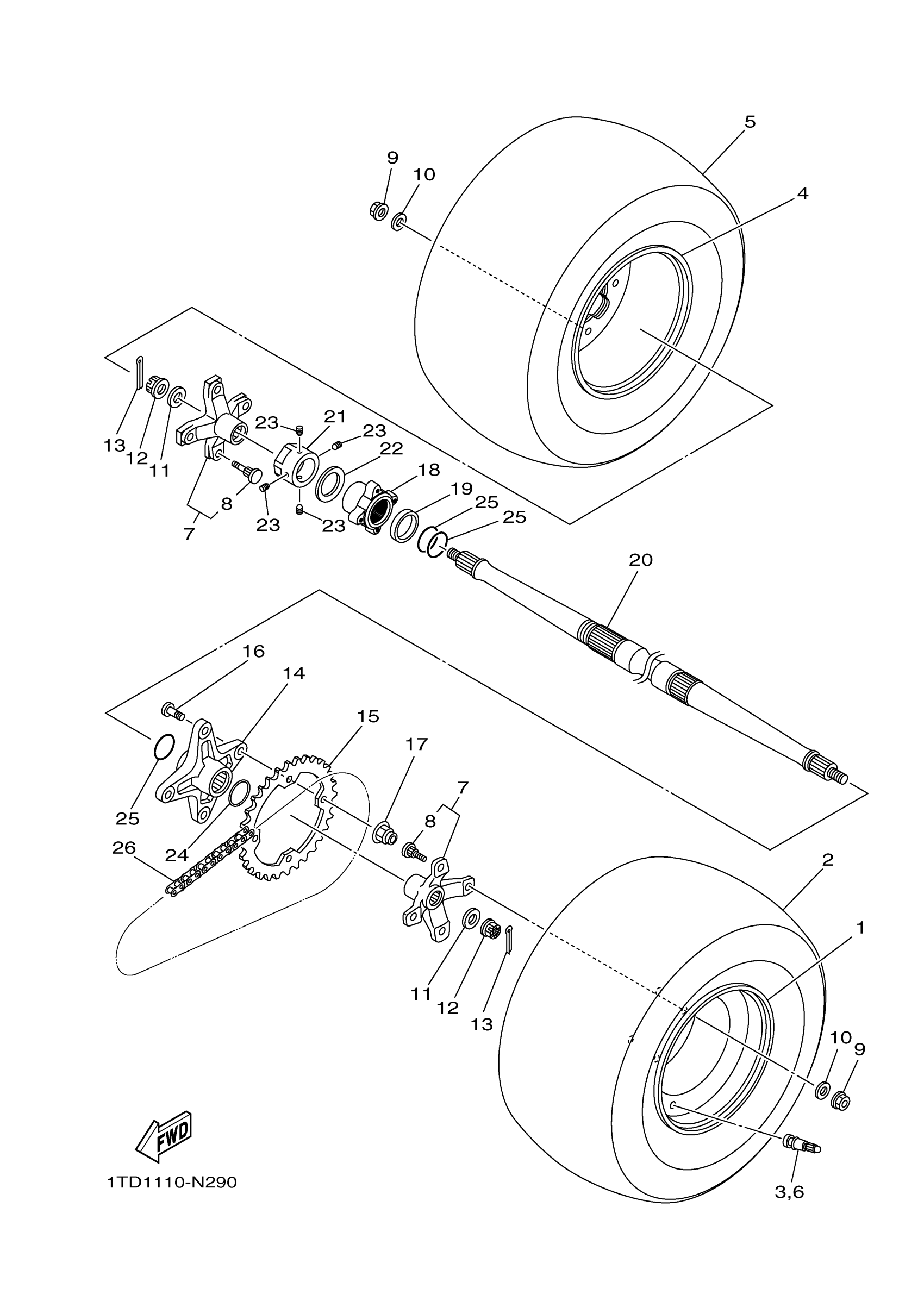

Yamaha YFZ450RFL (YFZ450R) 1TDC 2015 REAR WHEEL Diagram

#

Description
Price

1

WHEEL,REAR

1TD-F5390-21-00

Unavailable

2

AT20X10R9 MS22 TL ( ITD )

94110-09802-00

$294.99

3

VALVE, RIM

93900-00812-00

Unavailable

4

WHEEL,REAR

1TD-F5390-21-00

Unavailable

5

AT20X10R9 MS22 TL ( ITD )

94110-09802-00

$294.99

6

VALVE, RIM

93900-00812-00

Unavailable

7

COLLAR, WHEEL

18P-25383-00-00

$171.99

8

BOLT, SERRATION

90114-10013-00

$7.49

9

NUT, FLANGE(3BM)

95704-10500-00

$4.29

10

958-69527-00 WASHER, PLAIN

92990-10200-00

$3.72

11

WASHER, PLATE

90201-16023-00

$8.49

12

NUT, CASTLE

90171-16002-00

$20.99

13

PIN, COTTER

90252-03001-00

$1.96

14

COLLAR, SPROCKET AXLE

18P-25386-00-00

$171.99

15

SPROCKET, DRIVEN (38T)

5TG-25438-10-00

$43.99

16

BOLT

90109-10013-00

Unavailable

17

NUT, SELF-LOCKING

90185-10011-00

Unavailable

18

BRACKET, DISC

1TD-F5712-00-00

Unavailable

19

COLLAR

90387-40001-00

Unavailable

20

AXLE, WHEEL

BKD-F5381-00-00

Unavailable

21

NUT

90179-38001-00

Unavailable

22

WASHER, CONICAL SPRING

90208-39001-00

Unavailable

23

BOLT, SET (8K2)

90113-06039-00

Unavailable

24

CIRCLIP

18P-25415-00-00

Unavailable

25

O-RING

93210-37003-00

Unavailable

26

CHAIN (DID520MXV4-

94582-38098-00

Unavailable
