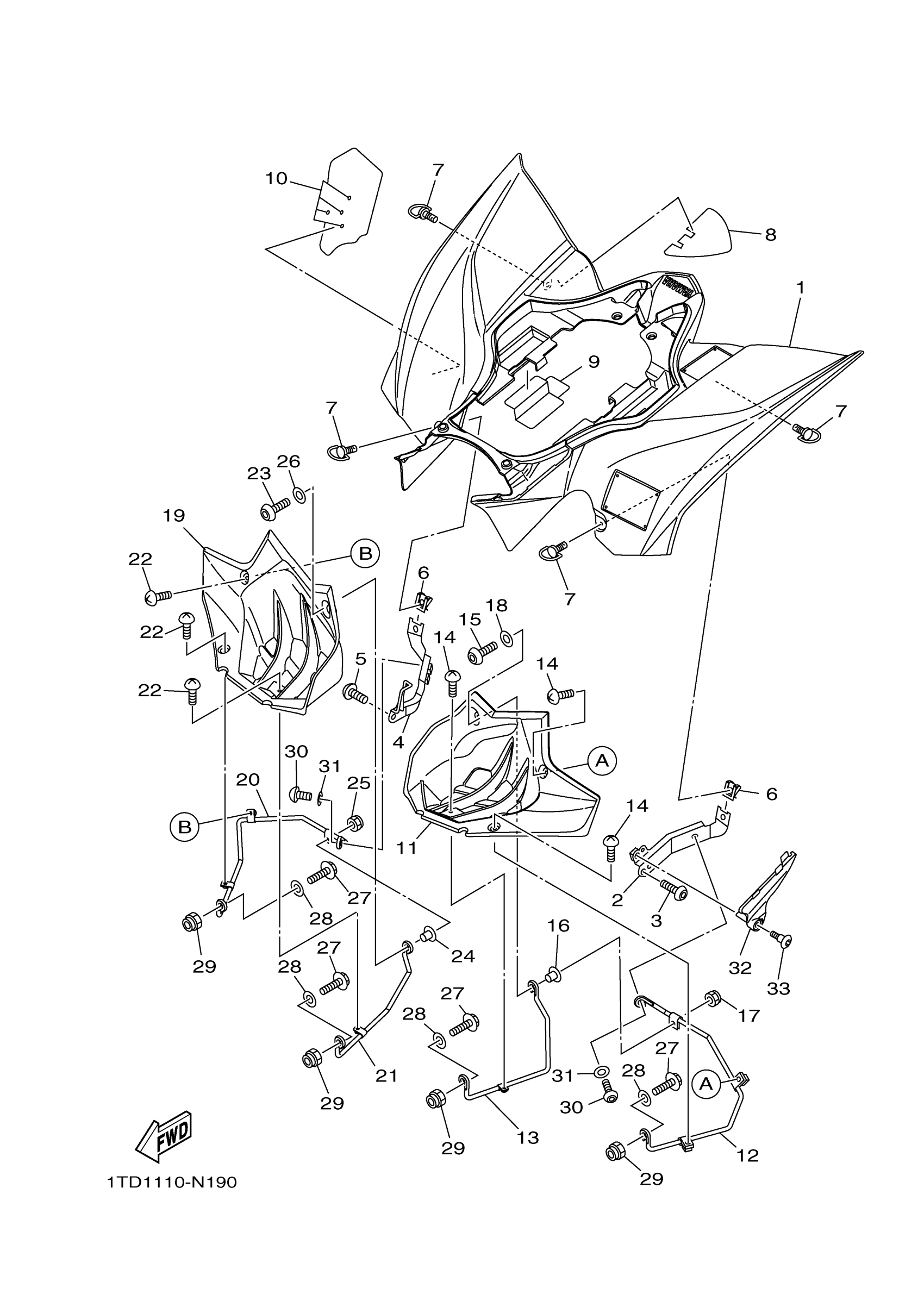

Yamaha YFZ450RFL (YFZ450R) 1TDC 2015 REAR FENDER Diagram
#
Description
Price
1
REAR FENDER ASSY (DEEP PURPLISH BLUE SOLID E)
1TD-F1600-00-00
Unavailable
12
STAY 1
1TD-2164F-00-00
Unavailable
13
STAY 3
1TD-2164H-00-00
Unavailable
16
COLLAR
90387-06205-00
Unavailable
17
NUT, U FLANGE
95604-06200-00
Unavailable
18
WASHER, PLATE
90201-06380-00
Unavailable
19
FLAP
1TD-F1691-00-00
Unavailable
20
STAY 2
1TD-2164G-00-00
Unavailable
21
STAY 4
1TD-2164J-00-00
Unavailable
24
COLLAR
90387-06205-00
Unavailable
25
NUT, U FLANGE
95604-06200-00
Unavailable
26
WASHER, PLATE
90201-06380-00
Unavailable
27
BOLT, FLANGE(4LN)
95817-08025-00
Unavailable
28
WASHER, PLATE
90201-08048-00
Unavailable
29
NUT, SELF-LOCKING
95602-08200-00
Unavailable
30
BOLT, BUTTON HEAD
92012-08020-00
Unavailable
31
WASHER, PLATE
90201-08043-00
Unavailable
32
COVER, REAR FENDER 1
18P-2163A-00-00
Unavailable
33
BOLT
90109-06249-00
Unavailable
