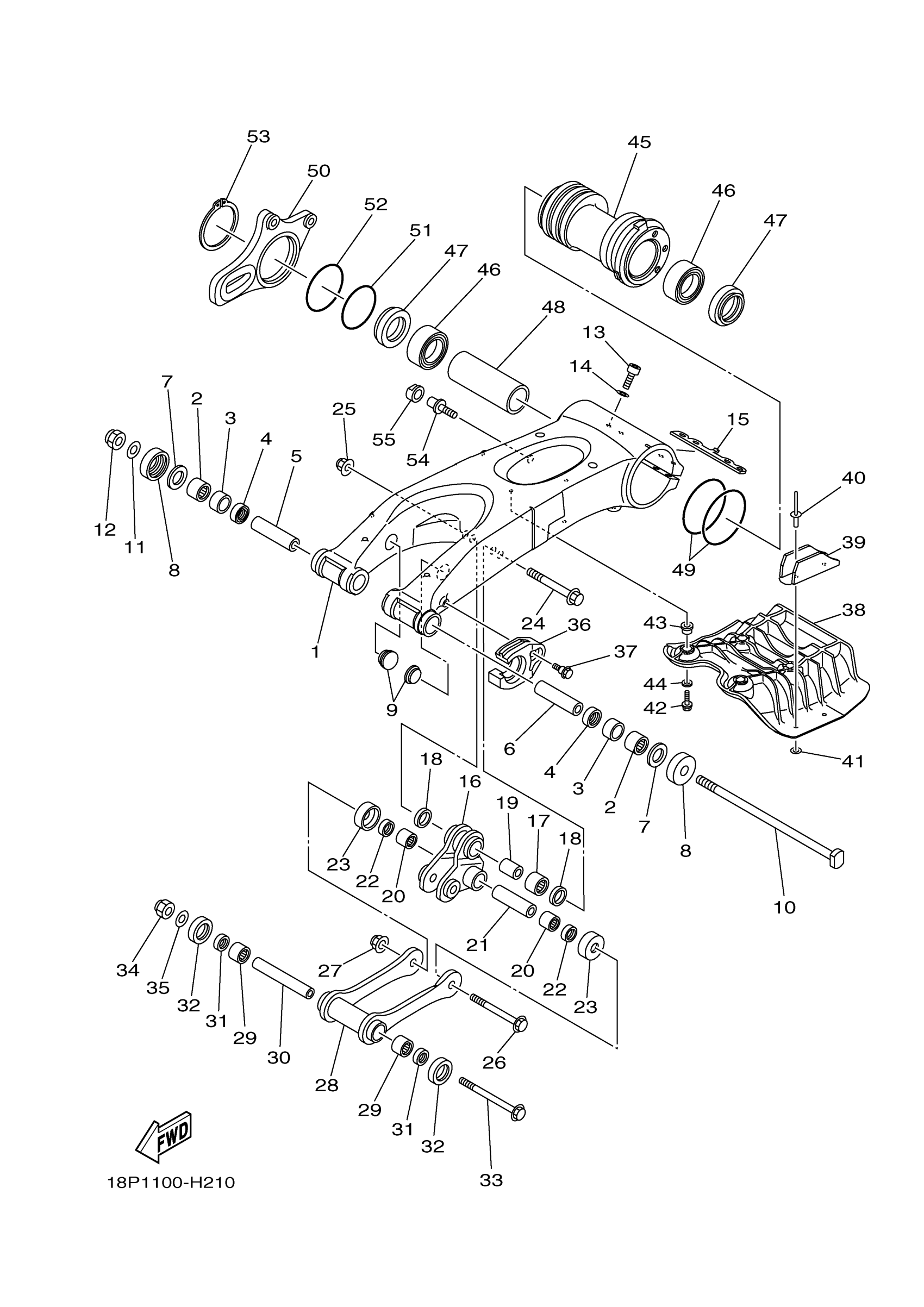

Yamaha YFZ450RAL (YFZ450R) 18PD 2011 REAR ARM Diagram
#
14
.. WASHER, PLATE
92990-08600-00
Unavailable
16
ARM, RELAY
18P-2217A-00-00
Unavailable
17
BEARING, CYLINDRICAL(4BF)
93315-32056-00
Unavailable
18
OIL SEAL
93109-20001-00
Unavailable
19
COLLAR
90387-12043-00
Unavailable
20
BEARING
93315-31758-00
Unavailable
21
COLLAR
90387-12041-00
Unavailable
22
OIL SEAL
93109-17071-00
Unavailable
23
COVER, THRUST 2
55K-22129-00-00
Unavailable
24
BOLT, FLANGE
90105-12064-00
Unavailable
25
NUT, SELF-LOCKING
90185-12002-00
Unavailable
26
BOLT, FLANGE
90105-12065-00
Unavailable
27
NUT, SELF-LOCKING
90185-12002-00
Unavailable
28
ROD, CONNECTING 1
18P-2217F-00-00
Unavailable
29
BEARING
93315-31758-00
Unavailable
30
COLLAR
90387-12042-00
Unavailable
31
OIL SEAL
93109-17071-00
Unavailable
32
COVER, THRUST 2
55K-22129-00-00
Unavailable
33
BOLT, FLANGE
90105-12066-00
Unavailable
34
NUT, SELF-LOCKING
90185-12007-00
Unavailable
35
WASHER, PLATE
90201-12032-00
Unavailable
36
SEAL, GUARD
18P-22151-10-00
Unavailable
37
BOLT
90109-06172-00
Unavailable
38
GUARD 1
18P-22361-00-00
Unavailable
39
GUARD, CHAIN
5TG-22153-10-00
Unavailable
40
RIVET, BLIND(8CH)
90267-47187-00
Unavailable
41
WASHER, PLATE
90201-04027-00
Unavailable
42
BOLT, FLANGE
95817-06025-00
Unavailable
43
COLLAR
90387-06151-00
Unavailable
44
WASHER, PLATE
90201-06033-00
Unavailable
45
HUB, REAR
5TG-25311-21-00
Unavailable
46
BEARING
93304-20812-00
Unavailable
47
OIL SEAL
93106-48001-00
Unavailable
48
SPACER, BEARING
5TG-25317-01-00
Unavailable
49
O-RING
1S3-23147-01-00
Unavailable
50
BRACKET, CALIPER
5TG-25721-30-00
Unavailable
51
O-RING
93210-71001-00
Unavailable
52
O-RING
93210-66001-00
Unavailable
53
CIRCLIP
93410-67085-00
Unavailable
54
BOLT, HEXAGON SOCKET HEAD
90110-12002-00
Unavailable
55
COLLAR
90387-16014-00
Unavailable
