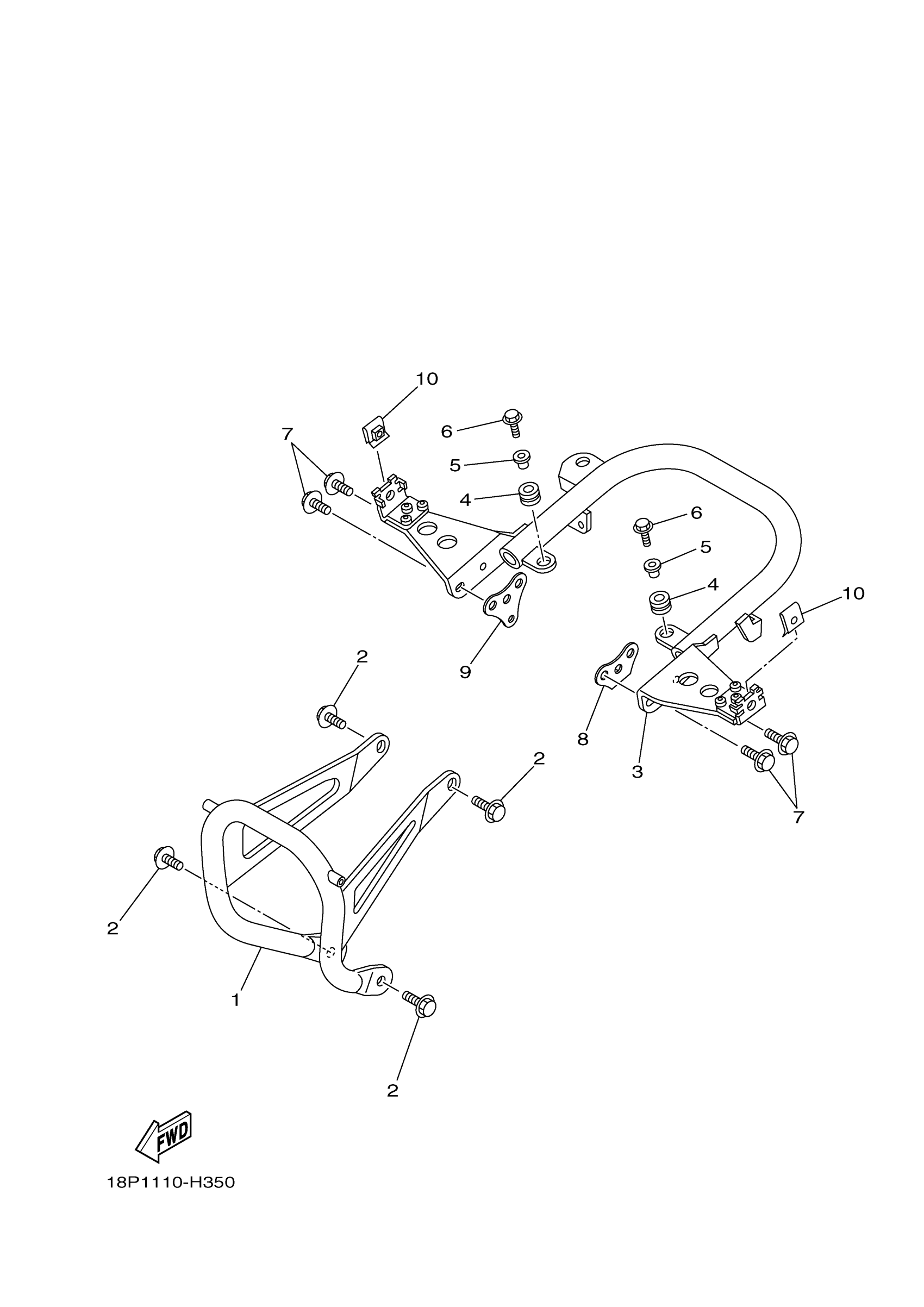

Yamaha YFZ450RAL (YFZ450R) 18PD 2011 GUARD Diagram

#

Description
Price

1

BAR, CARRY FRONT

18P-2845N-00-00

Unavailable

2

BOLT, FLANGE

95812-08020-00

$1.58

3

BAR, CARRY REAR

18P-2845R-00-00

$237.73

4

GROMMET (4N0)

90480-10289-00

$6.02

5

COLLAR

90387-06063-00

$6.12

6

BOLT, FLANGE

95817-06020-00

$2.52

7

BOLT, FLANGE

95812-08020-00

$1.58

8

WASHER, SPECIAL

5TG-28215-00-00

$6.29

9

WASHER, SPECIAL

18P-28215-00-00

$4.93

10

NUT, SPRING

90183-061A5-00

$7.77
