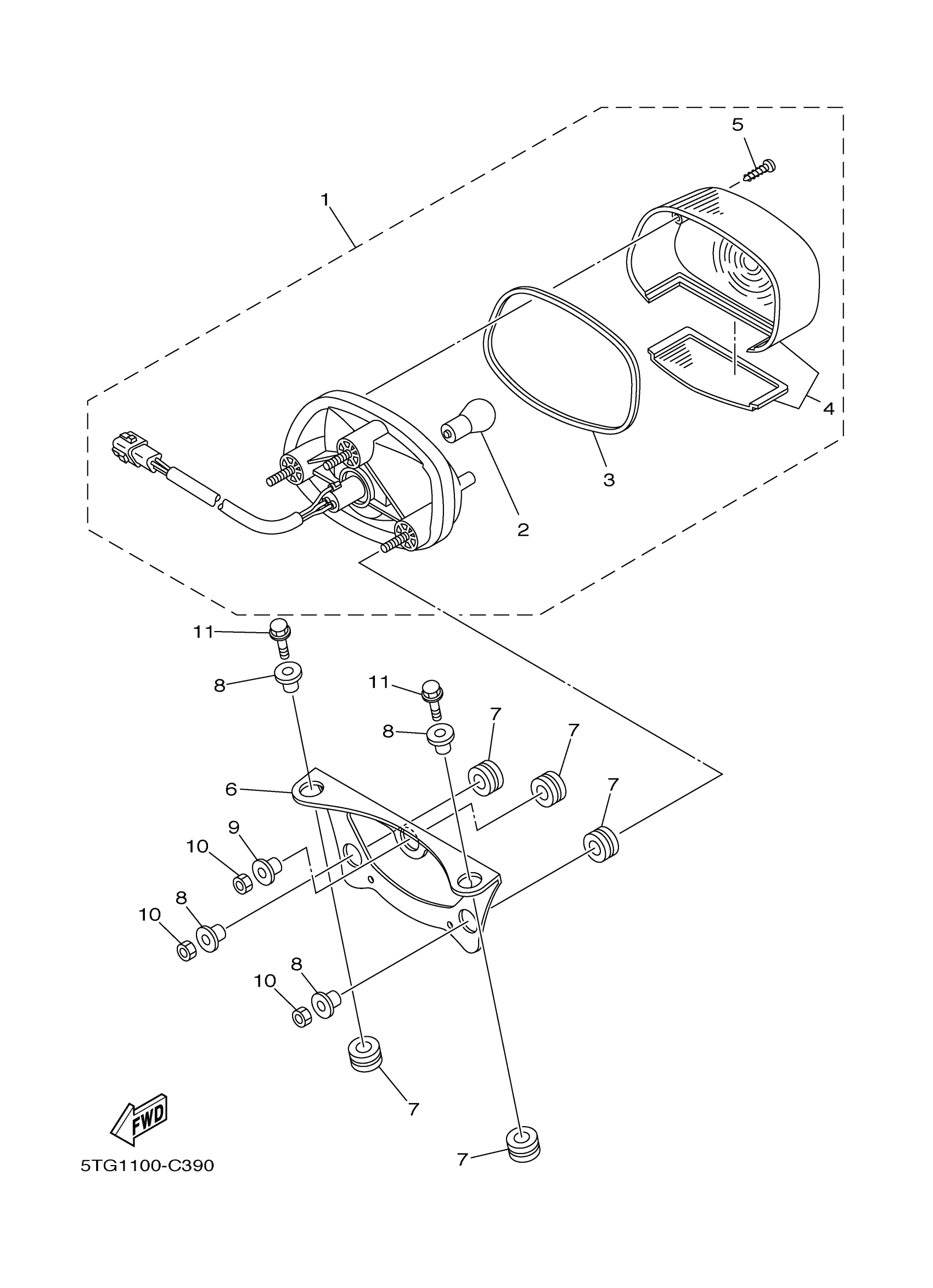

Yamaha YFZ450LES (YFZ450 LIMITED EDITION) 5TG4 2004 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT ASSY

5LP-84700-11-00

$83.85

2

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$9.34

3

GASKET, TAIL LENS

4TX-84723-00-00

$4.18

4

LENS, TAILLIGHT

4TR-84733-00-00

$18.52

5

YBS83-420 SCREW,PANH,TAPPING

97780-40120-00

$2.64

6

BRACKET, TAILLIGHT

5TG-84702-00-00

Unavailable

7

GROMET (3X3)

90480-14229-00

$5.75

8

COLLAR 437216330000

90387-07391-00

Unavailable

9

COLLAR

90387-06158-00

$5.75

10

NUT(6TA)

95317-06600-00

$2.52

11

BOLT, FLANGE

95817-06025-00

Unavailable
