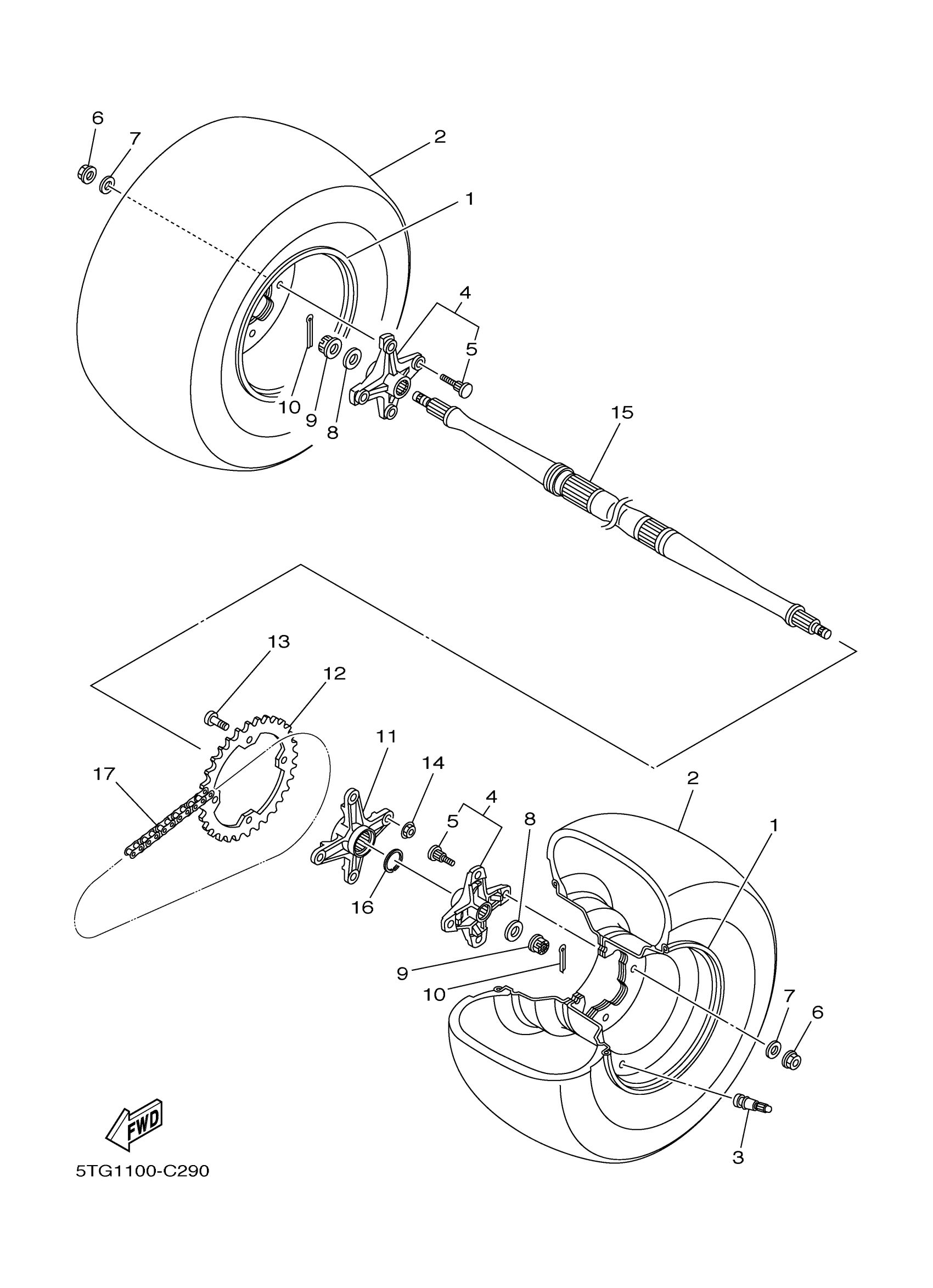

Yamaha YFZ450LES (YFZ450 LIMITED EDITION) 5TG4 2004 REAR WHEEL Diagram

#

Description
Price

1

WHEEL,REAR

5LP-F5390-29-00

Unavailable

2

TIRE

94110-09015-00

Unavailable

3

VALVE, RIM(2GH)

93900-00030-00

$16.99

4

WHEEL SHAFT COLLAR ASSY.

1PE-F53K0-00-00

$74.99

5

BOLT, RIBBED NECK(3GD)

90114-10009-00

$7.49

6

NUT, FLANGE(8AB)

95707-10500-00

$3.18

7

WASHER, PLAIN(3BM)

92907-10200-00

$4.99

8

WASHER, PLATE

90201-14226-00

$5.60

9

NUT, CASTLE (29U)

90171-14037-00

$11.49

10

PIN, COTTER

91490-30030-00

$8.49

11

COLLAR, SPROCKET AXLE

1S3-25386-00-00

$165.99

12

SPROCKET, DRIVEN (38T)

5TG-25438-10-00

$43.99

13

BOLT

90109-10010-00

$7.49

14

NUT, SELF-LOCKING(JN5)

95607-10200-00

$4.19

15

AXLE, WHEEL

5TG-25381-00-00

Unavailable

16

CIRCLIP

1S3-25415-00-00

Unavailable

17

CHAIN

94582-13096-00

Unavailable
