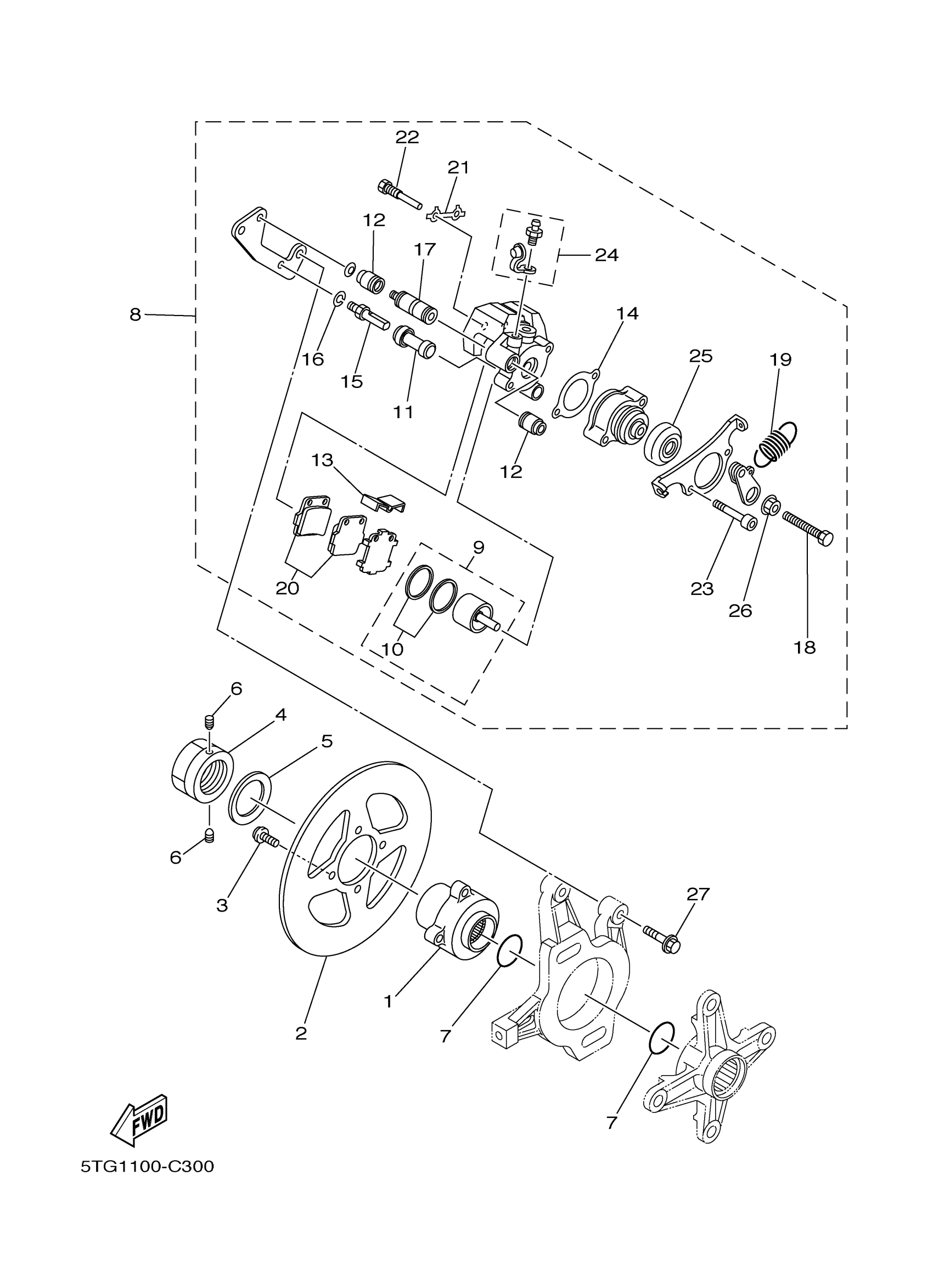

Yamaha YFZ450LES (YFZ450 LIMITED EDITION) 5TG4 2004 REAR BRAKE CALIPER Diagram

#

Description
Price

1

BRACKET, DISC

5TG-25712-00-00

Unavailable

2

DISK, REAR BRAKE 2

5TG-2582W-00-00

Unavailable

3

BOLT,HEX. SOCKET BUTTON

90111-08053-00

$8.49

4

NUT

90170-36003-00

Unavailable

5

WASHER, CONICAL SPRING

90208-37001-00

$12.49

6

BOLT, SET (8K2)

90113-06039-00

$9.49

7

O-RING(2TY)

93210-36769-00

$11.49

8

CALIPER ASSY, REAR 2

5TG-2580W-00-00

Unavailable

9

PISTON ASSY, CALIPER

1UY-W0057-50-00

$111.99

10

CALIPER SEAL KIT

1UY-W0047-50-00

$17.49

11

BOOT 2

1UY-25937-51-00

$14.49

12

BOOT, CALIPER

1UY-25917-51-00

$6.99

13

SUPPORT, PAD

1UY-25919-51-00

$22.99

14

. RUBBER, BUSHING

1UY-25975-51-00

Unavailable

15

BOLT

1UY-25926-51-00

$4.47

16

WASHER, SPRING

1UY-25938-51-00

Unavailable

17

PIN, SLIDE

1UY-25914-51-00

Unavailable

18

ADJUSTBOLT

1UY-25972-51-00

Unavailable

19

SPRING, RETURN

5TG-25977-50-00

Unavailable

20

BRAKE PAD KIT 2

5LP-W0046-51-00

Unavailable

21

WASHER, PAD PIN

1UY-25933-51-00

Unavailable

22

PIN, PAD

1UY-25924-51-00

Unavailable

23

BOLT 1

5KE-25821-00-00

Unavailable

24

BLEED SCREW KIT

36Y-W0048-00-00

Unavailable

25

BOOT

1UY-25974-51-00

Unavailable

26

NUT

1UY-25973-51-00

Unavailable

27

BOLT, WASHER BASED(1UY)

90105-08440-00

Unavailable
