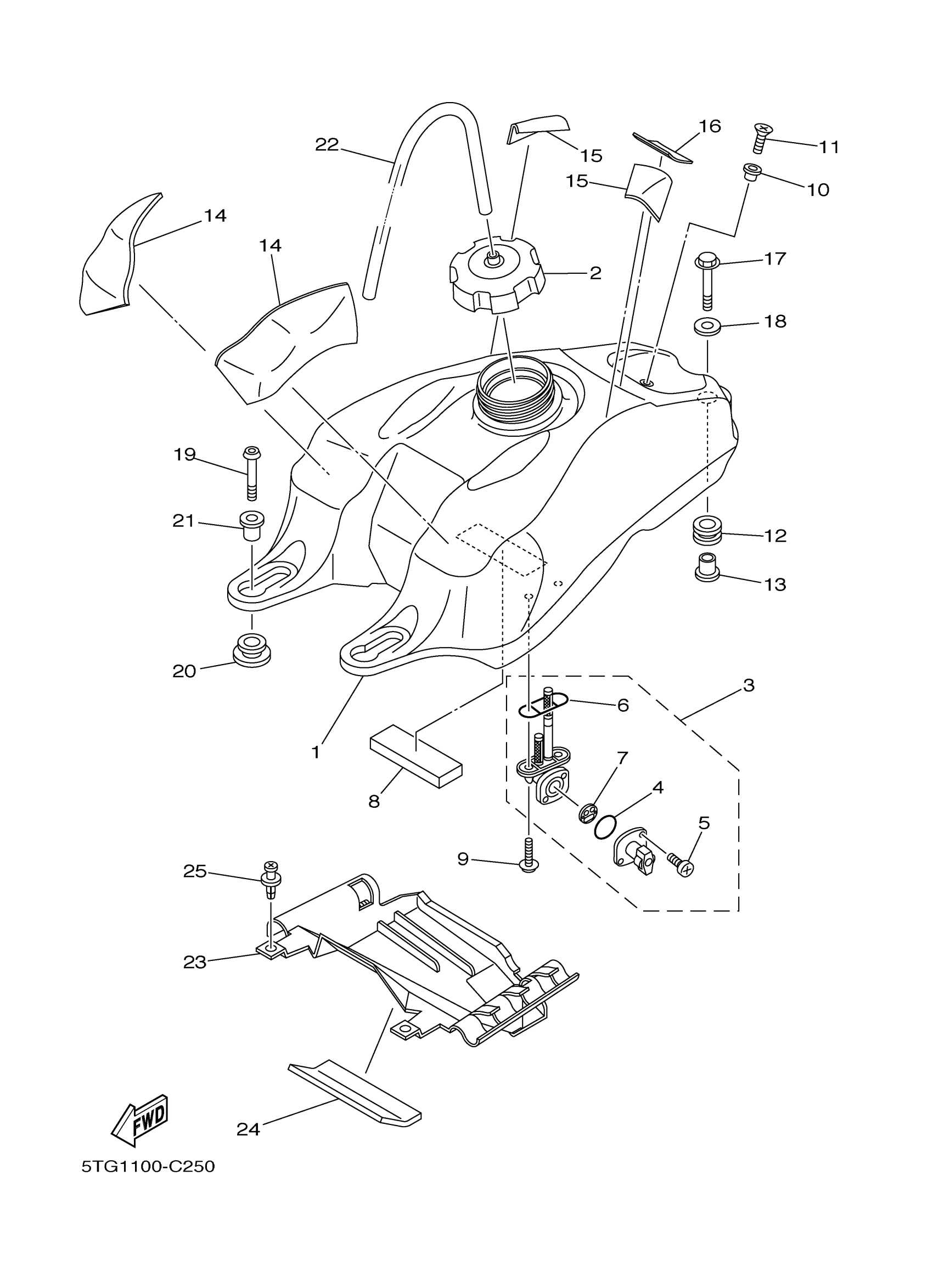

Yamaha YFZ450LES (YFZ450 LIMITED EDITION) 5TG4 2004 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

5TG-24110-00-00

Unavailable

2

CAP ASSY

5KM-24610-00-00

$49.64

3

FUEL COCK ASSY 1

5TG-24500-10-00

$53.09

4

SEAL, COCK

3AJ-24534-01-00

$8.69

5

SCREW, PAN HEAD (J10)

98580-03008-00

$2.14

6

O-RING

4X8-24512-00-00

$6.25

7

VALVE PACKING

3AC-24523-00-00

$10.82

8

DAMPER, LOCATING 1

5TG-24181-00-00

Unavailable

9

SCREW 256241430000

90149-06011-00

$1.56

10

BRACKET, SEAT

4EW-2412F-00-00

$11.85

11

SCREW, FLAT

98707-06025-00

$5.76

12

GROMMET (4V1)

90480-18290-00

$6.54

13

COLLAR (36R)

90387-066J1-00

$6.39

14

SEAT, BATTERY

5Y1-82122-00-00

$6.09

15

SEAT, DAMPER A

M12-T133A-00-00

$4.18

16

DAMPER

22F-2139X-00-00

Unavailable

17

BOLT, FLANGE

95817-06030-00

Unavailable

18

WASHER, PLATE(36Y)

90201-063J2-00

Unavailable

19

BOLT, BUTTON HEAD

92017-06025-00

Unavailable

20

GROMMET

90480-18004-00

Unavailable

21

COLLAR (36R)

90387-066J1-00

$6.39

22

HOSE (L600)

90445-083J5-00

Unavailable

23

DAMPER, PLATE 1

5TG-2414H-00-00

Unavailable

24

SEAT, BATTERY

5Y1-82122-00-00

$6.09

25

RIVET

90269-06002-00

Unavailable
