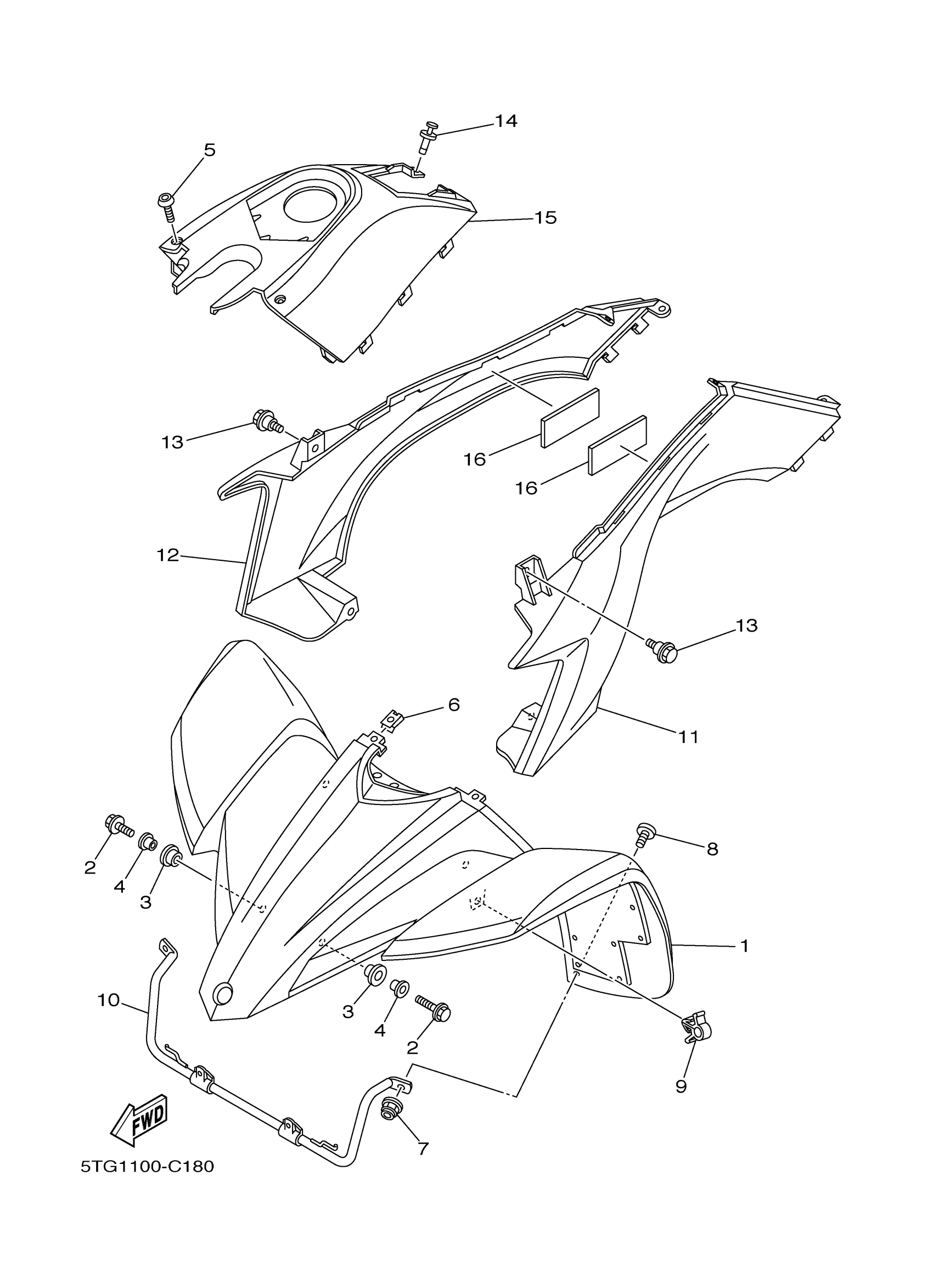

Yamaha YFZ450LES (YFZ450 LIMITED EDITION) 5TG4 2004 FRONT FENDER Diagram

#

Description
Price

1

FRONT FENDER COMP.

5TG-W2151-20-00

Unavailable

2

BOLT, FLANGE

95817-06016-00

$2.75

3

GROMMET

90480-15006-00

$7.49

4

COLLAR(42G)

90387-062L2-00

$7.49

5

BOLT,HEX. SOCKET BUTTON

90111-05059-00

$2.12

6

NUT, SPRING

90183-05008-00

$9.49

7

NUT,SELF-LOCKING

95607-06200-00

$12.49

8

SCREW(3JM)

90149-06306-00

$8.49

9

CLAMP(4BD)

90464-48174-00

$3.50

10

STAY, FENDER 1

5TG-21513-10-00

$72.99

11

COVER, SIDE 1

5TG-21711-20-00

Unavailable

12

COVER, SIDE 2

5TG-21721-20-00

$106.99

13

BOLT(3KJ)

90109-063F1-00

$2.97

14

RIVET

90269-06002-00

$8.49

15

COVER, TOP

5TG-2171A-20-00

Unavailable

16

DAMPER 1

5TG-21541-00-00

Unavailable
