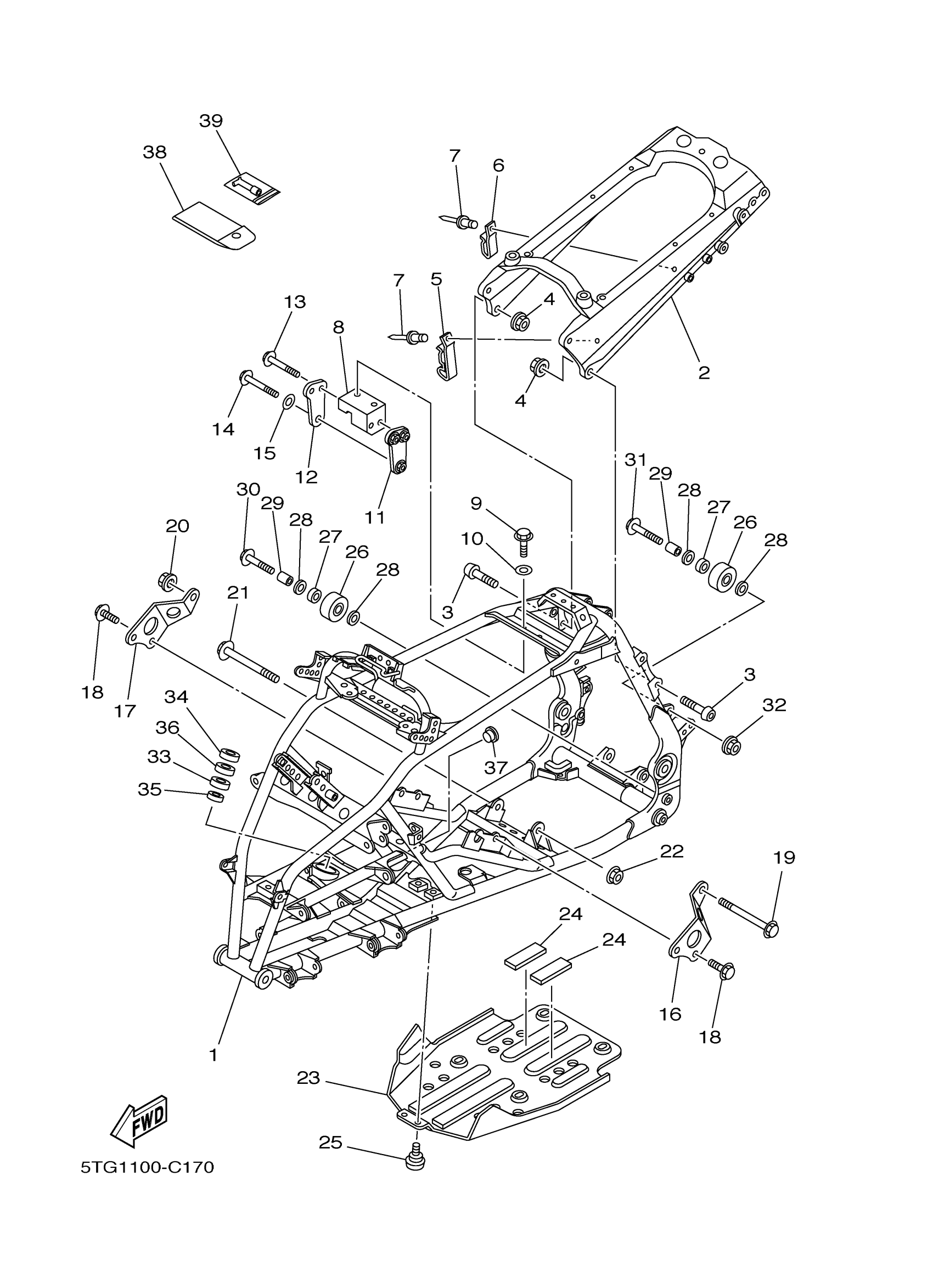

Yamaha YFZ450LES (YFZ450 LIMITED EDITION) 5TG4 2004 FRAME Diagram
#
Description
Price
1
FRONT FRAME COMP.
5TG-21101-28-00
Unavailable
2
REAR FRAME COMP.
5TG-21190-29-00
Unavailable
6
CLAMP
90462-12005-00
Unavailable
8
STAY, ENGINE 2
5TG-21315-00-00
Unavailable
16
STAY, ENGINE 3
5D3-21316-01-00
Unavailable
17
STAY, ENGINE 3
5D3-21317-01-00
Unavailable
18
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
19
BOLT,FLANGE
95817-10165-00
Unavailable
21
BOLT, WASHER BASED(3RB)
90105-10733-00
Unavailable
23
PROTECTOR, ENGINE
5TG-21471-00-00
Unavailable
24
DAMPER, PLATE
90520-10021-00
Unavailable
25
BOLT
90109-06285-00
Unavailable
26
TENSIONER
5TG-22178-01-00
Unavailable
27
BEARING (3X3)
93300-60804-00
Unavailable
28
WASHER, PLATE(3XP)
90201-086P8-00
Unavailable
29
COLLAR(1NL)
90387-086N4-00
Unavailable
30
BOLT, FLANGE(4MY)
95027-08040-00
Unavailable
31
BOLT, FLANGE
95022-08045-00
Unavailable
32
NUT, SELF-LOCKING
90185-08169-00
Unavailable
33
BEARING
93306-20348-00
Unavailable
34
OIL SEAL (25X44X6-810)
93102-25081-00
Unavailable
35
OIL SEAL (25X36X8-334)
93102-25099-00
Unavailable
36
HOLDER, BEARING
2GU-23872-00-00
Unavailable
37
PLUG (5R2)
90338-18122-00
Unavailable
38
TOOL KIT
5TG-28100-00-00
Unavailable
39
GAUGE, AIR
1NV-2811A-01-00
Unavailable
