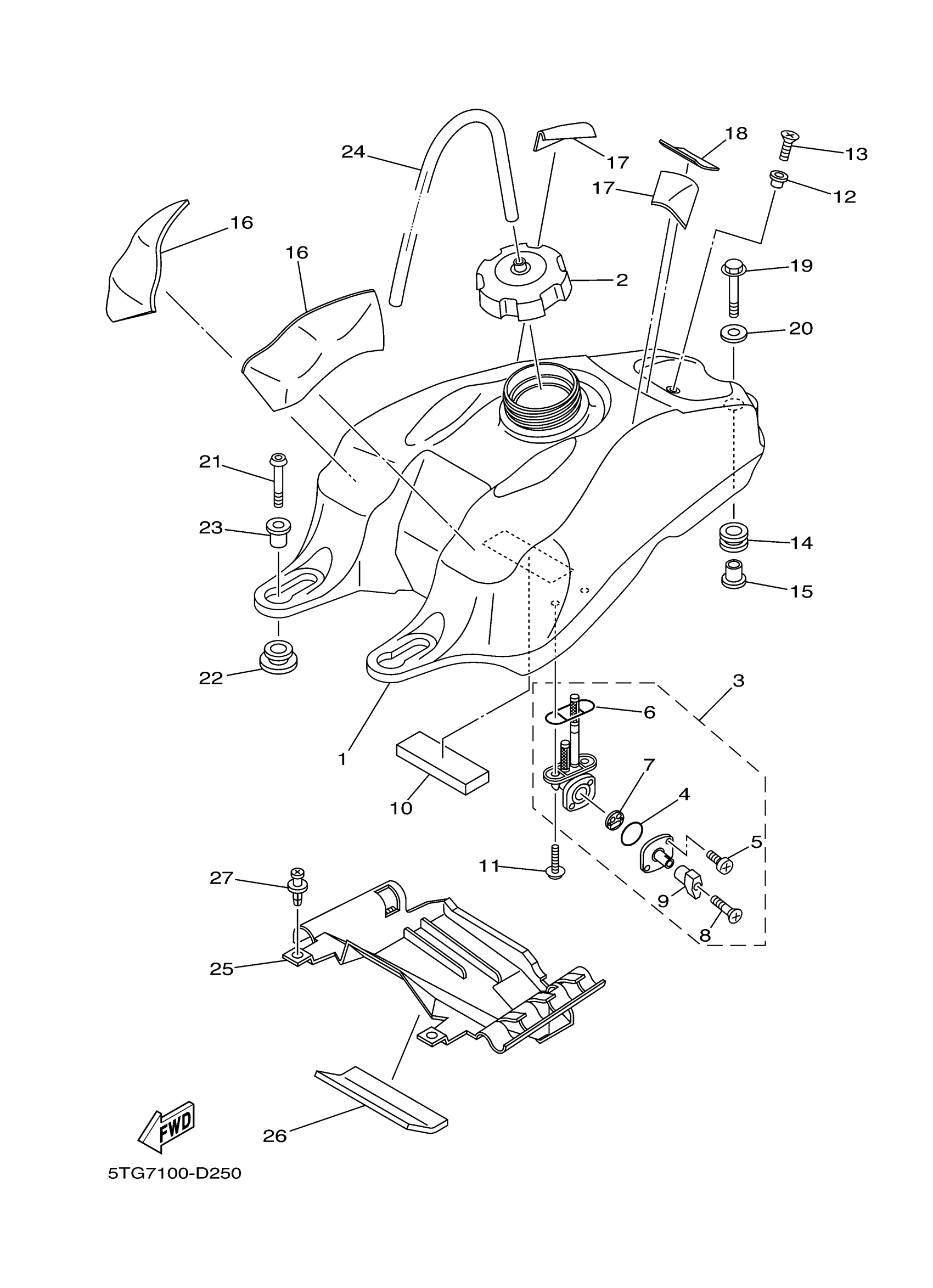

Yamaha YFZ450BBW (YFZ450 BILL BALLANCE EDITION) 5D37 2007 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

5TG-24110-00-00

Unavailable

2

CAP ASSY

5KM-24610-00-00

$61.99

3

FUEL COCK ASSY 1

5TG-24500-10-00

$62.99

4

SEAL, COCK

3AJ-24534-01-00

$10.99

5

SCREW, PAN HEAD(3AC)

98517-03008-00

$2.97

6

O-RING

4X8-24512-00-00

$8.99

7

VALVE PACKING

3AC-24523-00-00

$12.99

8

SCREW, FLAT

98707-04016-00

$8.49

9

LEVER, COCK

4HM-24524-00-00

$6.99

10

DAMPER, LOCATING 1

5TG-24181-00-00

Unavailable

11

SCREW

90149-06108-00

$1.01

12

BRACKET, SEAT

4EW-2412F-00-00

$14.49

13

SCREW, FLAT HEAD

98702-06025-00

$8.49

14

GROMMET (4V1)

90480-18290-00

$8.49

15

COLLAR (36R)

90387-066J1-00

$8.49

16

SEAT, BATTERY

5Y1-82122-00-00

Unavailable

17

SEAT, DAMPER A

M12-T133A-00-00

Unavailable

18

DAMPER

22F-2139X-00-00

Unavailable

19

95822-06030

95822-06030-00

Unavailable

20

WASHER, PLATE

90201-06033-00

Unavailable

21

BOLT, BUTTON HEAD

92012-06025-00

Unavailable

22

GROMMET

90480-18004-00

Unavailable

23

COLLAR (36R)

90387-066J1-00

$8.49

24

HOSE

90445-09823-00

Unavailable

25

DAMPER, PLATE 1

5TG-2414H-00-00

Unavailable

26

SEAT, BATTERY

5Y1-82122-00-00

Unavailable

27

RIVET

90269-06002-00

Unavailable
