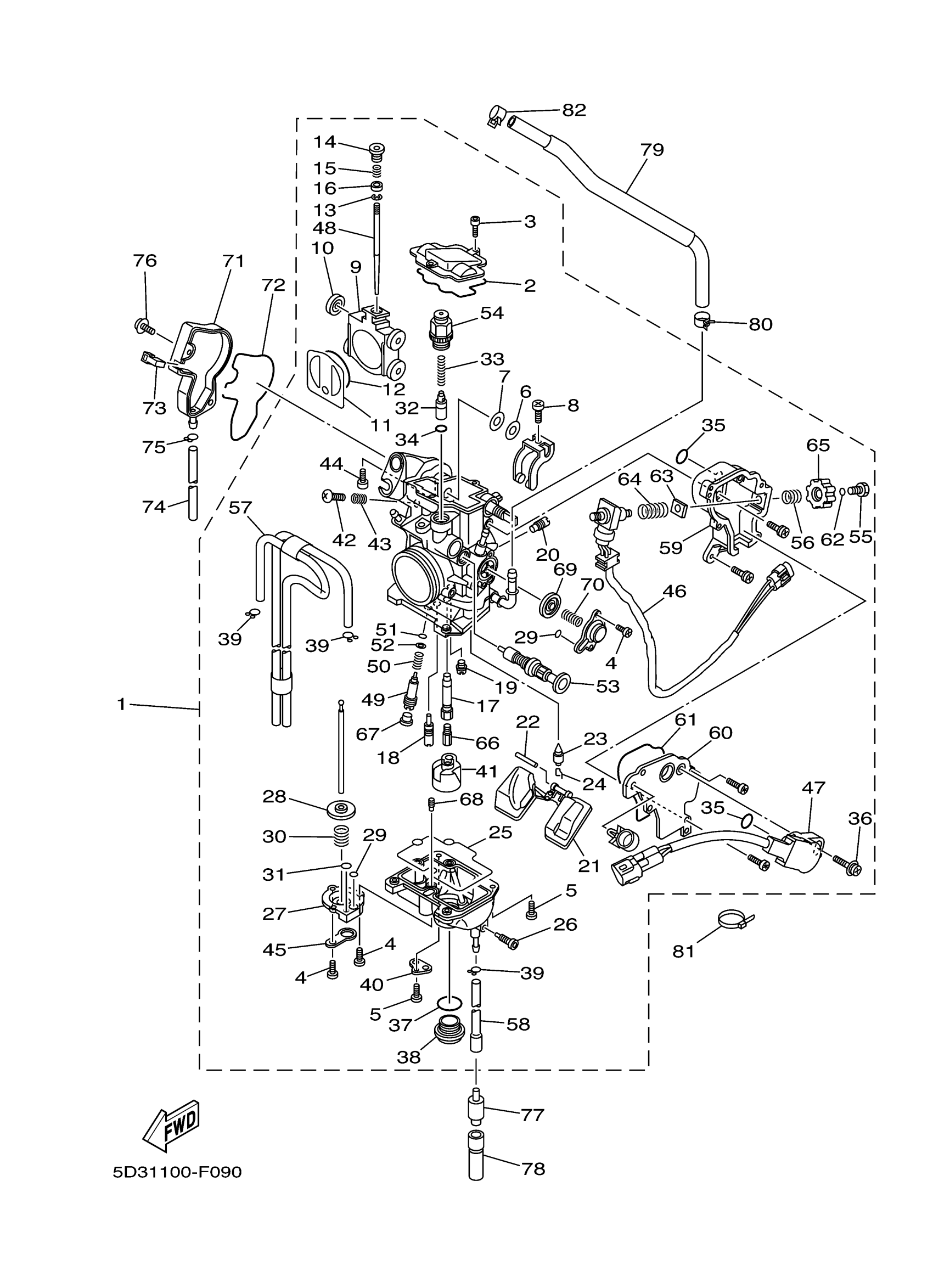

Yamaha YFZ450BBW (YFZ450 BILL BALLANCE EDITION) 5D37 2007 CARBURETOR Diagram
#
1
CARBURETOR ASSY 1
5TG-14101-34-00
Unavailable
5
SCREW, PAN HEAD
98511-04012-00
Unavailable
14
SCREW, ADJUST
5JG-14521-00-00
Unavailable
16
COLLAR
5JG-14264-00-00
Unavailable
17
JET, NEEDLE
5JG-14947-01-00
Unavailable
18
JET, PILOT (#48)
4MX-14948-06-00
Unavailable
19
JET (#90)
3TJ-1494F-23-00
Unavailable
20
JET, MAIN (#70)
5TA-14943-15-00
Unavailable
21
FLOAT
4SR-14985-00-00
Unavailable
22
. PIN, FLOAT ARM
663-14548-00-00
Unavailable
23
VALVE, NEEDLE
4MX-14392-00-00
Unavailable
24
CLIP
633-14159-00-00
Unavailable
25
GASKET, FLOAT CHAMBER
5JG-14984-00-00
Unavailable
26
PLUG, DRAIN
3TJ-14191-40-00
Unavailable
27
COVER 1
3TJ-14293-40-00
Unavailable
28
DIAPHRAGM ASSY
5JG-14940-17-00
Unavailable
29
GASKET
3TJ-14536-40-00
Unavailable
30
SPRING, DIAPHRAGM
3TJ-14933-40-00
Unavailable
31
. O-RING
6H4-14561-00-00
Unavailable
32
PLUNGER, STARTER
5TA-14371-00-00
Unavailable
33
SPRING, PLUNGER
5TA-14335-00-00
Unavailable
34
SEAL
5TA-14997-00-00
Unavailable
35
O-RING
33D-14562-00-00
Unavailable
36
SCREW
1DX-14216-00-00
Unavailable
37
O-RING
4MX-14561-00-00
Unavailable
38
PLUG, SCREW
4MX-14115-00-00
Unavailable
39
CLIP
3TJ-14137-40-00
Unavailable
40
PLATE
5BE-14146-00-00
Unavailable
41
PLATE
5JG-14346-00-00
Unavailable
42
SCREW
5JG-14565-00-00
Unavailable
43
SPRING, ADJUST SCREW
5JG-14531-00-00
Unavailable
44
SCREW
5JG-14591-09-00
Unavailable
45
. PLATE
5PA-14146-00-00
Unavailable
46
SWITCH, CARBURETOR
5TG-8259A-00-00
Unavailable
47
NEEDLE (#NDJQ)
5TG-85885-01-00
Unavailable
48
NEEDLE
5TG-14916-GR-00
Unavailable
49
SCREW, PILOT
3TJ-14923-40-00
Unavailable
50
COIL, SPRING
3TJ-14160-40-00
Unavailable
51
O-RING
8ES-14147-00-00
Unavailable
52
WASHER
3TJ-14952-40-00
Unavailable
53
PLUNGER, STARTER
5TG-14171-00-00
Unavailable
54
CAP
5TG-14225-00-00
Unavailable
55
SCREW
5TG-14591-00-00
Unavailable
56
SPRING
5TG-14935-00-00
Unavailable
57
. PIPE
5TG-14197-00-00
Unavailable
58
. HOSE
5TG-14987-00-00
Unavailable
59
. COVER 1
5TG-14417-00-00
Unavailable
60
. COVER 2
5TG-14418-00-00
Unavailable
61
GASKET
5TG-14959-00-00
Unavailable
62
O-RING
5TG-14561-00-00
Unavailable
63
. PLATE
5TG-14255-00-00
Unavailable
64
SPRING, PLUNGER
5TG-14335-00-00
Unavailable
65
HOLDER
5TG-14261-00-00
Unavailable
66
JET, MAIN (#155)
4MX-14943-38-00
Unavailable
67
CAP
5TJ-14118-00-00
Unavailable
68
JET (#40)
4JT-1494F-03-00
Unavailable
69
DIAPHRAGM ASSY
5GS-14940-00-00
Unavailable
70
SPRING, DIAPHRAGM
5GS-14933-00-00
Unavailable
71
COVER 1
5TA-14293-00-00
Unavailable
72
GASKET
5TA-14227-00-00
Unavailable
73
SEAL
5TA-14239-00-00
Unavailable
74
HOSE
5TA-14987-00-00
Unavailable
75
CLIP
3TJ-14137-40-00
Unavailable
76
BOLT, HEXAGON SOCKET HEAD
90110-05038-00
Unavailable
77
PIPE 2,OVERFLOW
24W-14193-00-00
Unavailable
78
TUBE, FLEXIBLE VINYL
91A20-07004-00
Unavailable
79
PIPE, FUEL 1
5TG-24311-10-00
Unavailable
80
CLIP
90467-120A5-00
Unavailable
81
CLAMP(3SK)
90464-13133-00
Unavailable
82
CLIP
90467-100A2-00
Unavailable
