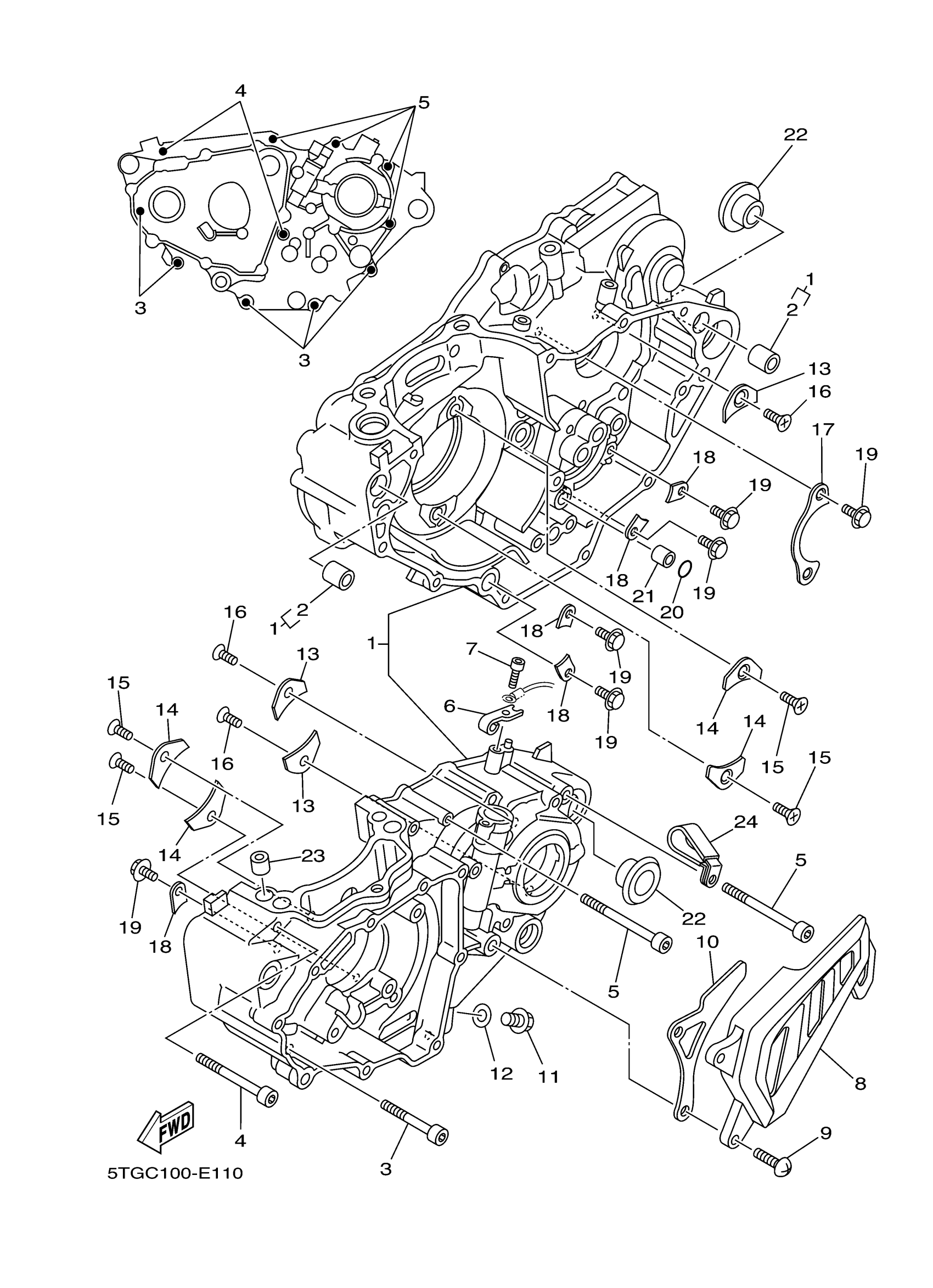

Yamaha YFZ450BBV (YFZ450V_BILL BALLANCE EDITION) 5TGC1 2006 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

5TG-15100-01-00

$604.55

2

PIN, DOWEL

99530-14016-00

$3.20

3

BOLT,SOCKET

91314-06050-00

$6.17

4

BOLT, SOCKET

91314-06060-00

$6.68

5

BOLT,SOCKET

91314-06075-00

$3.86

6

HOLDER, CLUTCH CABLE

5TG-15441-10-00

Unavailable

7

BOLT(3MA)

91312-06016-00

$4.89

8

COVER, CRANKCASE 2

5TA-15421-10-00

$28.54

9

SCREW, PAN HEAD

98514-06025-00

Unavailable

10

GUIDE, CHAIN

5TA-17466-00-00

$20.51

11

BOLT, FLANGE

95024-10016-00

$2.83

12

GASKET (1KH,1.0T)

90430-10148-00

$4.74

13

PLATE, BEARING COVER

4JT-15381-01-00

$10.54

14

PLATE, BEARING COVER

5BE-15383-01-00

$9.09

15

SCREW, FLATHEAD (2H7)

90149-06126-00

$6.38

16

SCREW, COUNTERSUNK

90151-06052-00

$6.38

17

PLATE, COVER

4L0-17471-00-00

$18.21

18

PLATE, STOPPER 2

5DH-18562-00-00

$6.72

19

BOLT, FLANGE(4MY)

95027-06012-00

$3.28

20

O-RING (371)

93210-10197-00

$5.86

21

PIN, DOWEL(3VD)

99530-10114-00

$2.23

22

COLLAR(1LV)

90387-164N2-00

$20.38

23

PIN, DOWEL(2VG)

99530-10116-00

$3.37

24

CLAMP

90461-10011-00

$10.66
